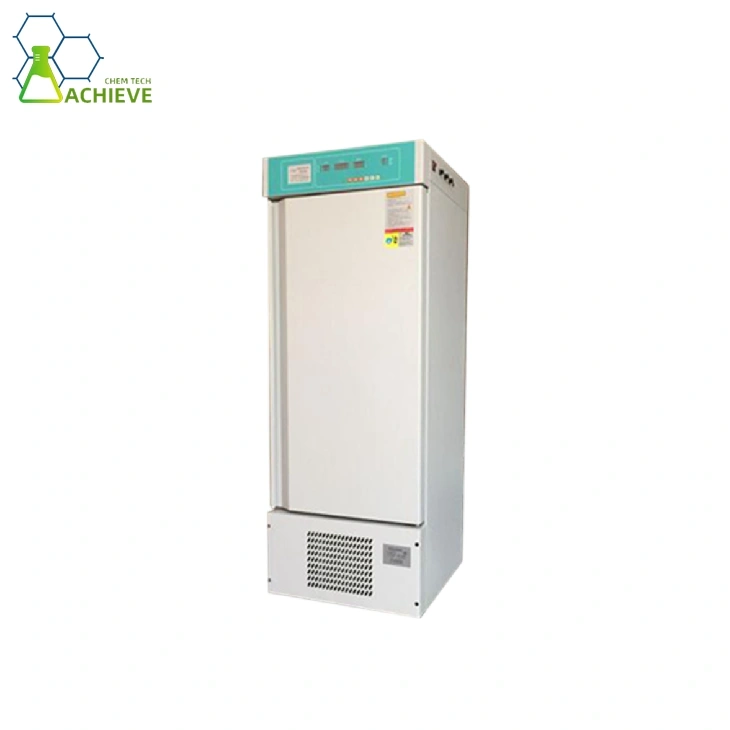

Seed Germination Chamber
Description
Technical Parameters
Optimal Equipment for Testing and Research
Seed viability, vigor, along with the effect of temperature/humidity/light on its growth are studied through the germination chamber . Laboratory equipment by Achieve Chem allows for precise control over the temperature range, humidity level, and light intensity in order to get accurate results. More importantly, the consistent performance of our germination equipment leads to result repeatability, which is a key requirement in labs and scientific research.
Need personalized seed germination chamber solutions? Talk to our engineers.
Intelligent Artificial Climate Chamber for Seed Germination
Seeds are highly sensitive during the germination phase. Thus, to achieve accurate control during this critical phase, we built the Seed Germination Chambers by smartly modifying our flagship Intelligent Artificial Climate Chamber. Each unit is designed for a higher humidity range and has an accurate control system to mimic the precise environmental conditions.
Key Specifications
Laboratory-scale Seed Germination Chamber
|
Model |
Capacity |
Internal (External) Dimensions L × W × H (mm) |
Temperature Range / Fluctuation |
Humidity Range / Fluctuation |
Illumination |
|
PRX-80A |
80 L |
540×540×350 (590×590×1200) |
0–50°C ±0.5°C |
50–95% RH ±5% |
3,000 lx |
|
PRX-80B |
80 L |
540×540×350 (590×590×1200) |
0–50°C ±0.5°C |
50–95% RH ±5% |
12,000 lx |
|
PRX-180A |
180 L |
540×540×650 (590×590×1340) |
0–50°C ±1.0°C |
50–95% RH ±5% |
3,000 lx |
|
PRX-180B |
180 L |
540×540×650 (590×590×1340) |
0–50°C ±1.0°C |
50–95% RH ±5% |
12,000 lx |
|
PRX-180C |
180 L |
540×540×650 (590×590×1340) |
0–50°C ±1.0°C |
50–95% RH ±5% |
22,000 lx |
|
PRX-180D |
180 L |
540×540×650 (590×590×1340) |
0–50°C ±1.0°C |
50–95% RH ±5% |
30,000 lx |
|
PRX-280A |
280 L |
540×540×960 (590×590×1640) |
0–50°C ±1.0°C |
50–95% RH ±5% |
3,000 lx |
|
PRX-280B |
280 L |
540×540×960 (590×590×1640) |
0–50°C ±1.0°C |
50–95% RH ±5% |
12,000 lx |
|
PRX-280C |
280 L |
540×540×960 (590×590×1640) |
0–50°C ±1.0°C |
50–95% RH ±5% |
22,000 lx |
|
PRX-280D |
280 L |
540×540×960 (590×590×1640) |
0–50°C ±1.0°C |
50–95% RH ±5% |
30,000 lx |
Pilot-scale Seed Germination Chamber
|
Model |
Capacity |
Internal (External) Dimensions L × W × H (mm) |
Temperature Range / Fluctuation |
Humidity Range / Fluctuation |
Illumination |
|
PRX-380A |
350 L |
540×540×1210 (590×590×1890) |
0–50°C ±1.0°C |
50–95% RH ±5% |
3,000 lx |
|
PRX-380B |
350 L |
540×540×1210 (590×590×1890) |
0–50°C ±1.0°C |
50–95% RH ±5% |
12,000 lx |
|
PRX-380C |
350 L |
540×540×1210 (590×590×1890) |
0–50°C ±1.0°C |
50–95% RH ±5% |
22,000 lx |
|
PRX-380D |
350 L |
540×540×1210 (590×590×1890) |
0–50°C ±1.0°C |
50–95% RH ±5% |
30,000 lx |
|
PRX-500A |
450 L |
620×620×1150 (680×680×1890) |
0–50°C ±1.0°C |
50–95% RH ±5% |
3,000 lx |
|
PRX-500B |
450 L |
620×620×1150 (680×680×1890) |
0–50°C ±1.0°C |
50–95% RH ±5% |
12,000 lx |
|
PRX-500C |
450 L |
620×620×1150 (680×680×1890) |
0–50°C ±1.0°C |
50–95% RH ±5% |
22,000 lx |
|
PRX-500D |
450 L |
620×620×1150 (680×680×1890) |
0–50°C ±1.0°C |
50–95% RH ±5% |
30,000 lx |
|
PRX-600A |
600 L |
1240×540×960 (1300×590×1640) |
0–50°C ±1.0°C |
50–95% RH ±5% |
3,000 lx |
|
PRX-600B |
600 L |
1240×540×960 (1300×590×1640) |
0–50°C ±1.0°C |
50–95% RH ±5% |
12,000 lx |
|
PRX-600C |
600 L |
1240×540×960 (1300×590×1640) |
0–50°C ±1.0°C |
50–95% RH ±5% |
22,000 lx |
|
PRX-600D |
600 L |
1240×540×960 (1300×590×1640) |
0–50°C ±1.0°C |
50–95% RH ±5% |
30,000 lx |
|
PRX-800A |
800 L |
1240×540×1210 (1300×590×1890) |
0–50°C ±1.0°C |
50–95% RH ±5% |
3,000 lx |
|
PRX-800B |
800 L |
1240×540×1210 (1300×590×1890) |
0–50°C ±1.0°C |
50–95% RH ±5% |
12,000 lx |
|
PRX-800C |
800 L |
1240×540×1210 (1300×590×1890) |
0–50°C ±1.0°C |
50–95% RH ±5% |
22,000 lx |
|
PRX-800D |
800 L |
1240×540×1210 (1300×590×1890) |
0–50°C ±1.0°C |
50–95% RH ±5% |
30,000 lx |
Industrial-scale Seed Germination Chamber
|
Model |
Capacity |
Internal (External) Dimensions L × W × H (mm) |
Temperature Range / Fluctuation |
Humidity Range / Fluctuation |
Illumination |
|
PRX-1000A |
1,000 L |
1240×620×1210 (1300×680×1890) |
0–50°C ±1.0°C |
50–95% RH ±5% |
3,000 lx |
|
PRX-1000B |
1,000 L |
1240×620×1210 (1300×680×1890) |
0–50°C ±1.0°C |
50–95% RH ±5% |
12,000 lx |
|
PRX-1000C |
1,000 L |
1240×620×1210 (1300×680×1890) |
0–50°C ±1.0°C |
50–95% RH ±5% |
22,000 lx |
|
PRX-1000D |
1,000 L |
1240×620×1210 (1300×680×1890) |
0–50°C ±1.0°C |
50–95% RH ±5% |
30,000 lx |
|
PRX-1200A |
1,200 L |
1800×620×1210 (1860×680×1890) |
0–50°C ±1.0°C |
50–95% RH ±5% |
3,000 lx |
|
PRX-1200B |
1,200 L |
1800×620×1210 (1860×680×1890) |
0–50°C ±1.0°C |
50–95% RH ±5% |
12,000 lx |
|
PRX-1200C |
1,200 L |
1800×620×1210 (1860×680×1890) |
0–50°C ±1.0°C |
50–95% RH ±5% |
22,000 lx |
|
PRX-1200D |
1,200 L |
1800×620×1210 (1860×680×1890) |
0–50°C ±1.0°C |
50–95% RH ±5% |
30,000 lx |
|
PRX-1500A |
1,500 L |
1860×620×1210 (1900×680×1890) |
0–50°C ±1.0°C |
50–95% RH ±5% |
3,000 lx |
|
PRX-1500B |
1,500 L |
1860×620×1210 (1900×680×1890) |
0–50°C ±1.0°C |
50–95% RH ±5% |
12,000 lx |
|
PRX-1500C |
1,500 L |
1860×620×1210 (1900×680×1890) |
0–50°C ±1.0°C |
50–95% RH ±5% |
22,000 lx |
|
PRX-1500D |
1,500 L |
1860×620×1210 (1900×680×1890) |
0–50°C ±1.0°C |
50–95% RH ±5% |
30,000 lx |
|
PRX-2000A |
2,000 L |
2345×705×1145 (2485×765×1890) |
0–50°C ±1.0°C |
50–95% RH ±5% |
3,000 lx |
|
PRX-2000B |
2,000 L |
2345×705×1145 (2485×765×1890) |
0–50°C ±1.0°C |
50–95% RH ±5% |
12,000 lx |
|
PRX-2000C |
2,000 L |
2345×705×1145 (2485×765×1890) |
0–50°C ±1.0°C |
50–95% RH ±5% |
22,000 lx |
|
PRX-2000D |
2,000 L |
2345×705×1145 (2485×765×1890) |
0–50°C ±1.0°C |
50–95% RH ±5% |
30,000 lx |
Remarks
- 600 - 1000 L models come with a double-door configuration
- 1200 L and above come with a triple-door configuration
- Each Seed Germination Chamber is further subcategorized into Type A , Type B , Type C , and Type D based on the illumination intensity.
Note: For specialized applications that require prolonged cultivation at temperatures below 10°C or above 40°C, and relative humidity below 50% RH, we highly recommend that you speak with our engineers.
Seed Germination Chamber – Product Highlights
Low-fluctuation Temperature Control
The temperature fluctuation in our seed growth chamber does not exceed ±0.5°C for the lab-scale equipment, and ±1.0°C for the pilot/industrial-scale equipment, protecting sensitive seeds and ensuring optimal growth conditions.
Scalable Germination Equipment
The capacity of our seed germination chambers ranges from 80 L, 180 L, up to 2000 L, offering solutions for accurate laboratory research as well as covering large-scale industrial applications with bulk seed samples.
High-temperature Alarm System
Seeds, during their germination stage, are highly sensitive, where temperature above a certain limit impacts their growth and can trigger dormancy. Our alarm systems save you from these risks, with customizable temperature protection limits.
Multi-stage Germination
The germination process inside the seed growth chamber can be divided into 30 different programmable stages. Each stage can be customized to match the seed-specific development rate.
Versatility Through Customization
Each Seed Germination Chamber is designed with a modular approach so that it can be easily customized to match the seed-specific temperature/humidity/light requirements. You can also opt for customized chamber dimensions for easy fitting in your research space.
Accurate Environment Recreation
Get complete control over temperature, humidity, and light intensity to recreate ideal environmental conditions, facilitating seed germination, ensuring uniform growth across the batch, all while optimizing the overall energy consumption.
Calibrated Control Panel
The parameters inside the germination chamber are measured with advanced sensors and displayed on the control panel. You can opt for button control or a fully touch-controlled panel as per your requirements.
Lower Maintenance Requirements
Reduce operational costs by lowering the equipment maintenance frequency. Additionally, our modular equipment does not require complete dismantling for clearing or maintenance.
Customizable Seed Germination Chamber
Diversity in Plant Species – A Problem for Standard Seed Germination Chambers
There is a diverse range of plant species, with each requiring a complex combination of environmental conditions for optimal and controlled growth. Once these requirements exceed standard parameters and demand precise control with higher complexities, you will start to observe deviation from the desired results. The limitations of standard seed germination chambers also come to the surface under the following conditions:
- Need for precise environmental control
Basic chambers may struggle to maintain highly accurate temperature and humidity levels.
- Multiple testing conditions
Testing different temperature, humidity, or light conditions simultaneously may require more advanced systems.
- Limited light control
Standard models may offer fewer options for controlling light intensity, spectrum, and photoperiod.
- Higher sample volumes
Limited chamber capacity can become a constraint when testing large numbers of seeds or varieties.
- Advanced monitoring requirements
Research requiring data logging, remote monitoring, alarms, and automated adjustments may exceed the capabilities of standard chambers.
Design-Build-Optimize with Achieve Chem Customization
Sit with Achieve Chem experts and discuss your seed germination requirements, including sample size, budget restraints, sample diversity, and testing standards. Based on the information received, we will find the potential pain points and bottlenecks, then design a prototype for the germination chamber. After testing and incorporating your feedback, the prototype is further optimized until the needed parameters control, efficiency, and other factors are achieved.
Customizable Components and Factors with Achieve Chem
- Temperature Control System
Temperature range, heating/cooling capacity, sensors, and temperature uniformity can be customized according to seed requirements.
- Humidity Control
Humidification systems, dehumidification, RH range, and humidity sensors can be selected for precise moisture conditions.
- Lighting System
LED or fluorescent lighting, light intensity, wavelength/spectrum, and programmable photoperiod can be customized.
- Chamber Capacity & Dimensions
Internal volume, number and size of shelves, shelf spacing, and overall chamber dimensions can be configured based on sample quantity.
- Control & Automation
PLC or digital controllers, programmable temperature/RH cycles, timers, touchscreens, and automated environmental adjustments can be incorporated.
- Monitoring & Data Logging
Data loggers, USB/Ethernet connectivity, remote monitoring, alarms, and historical data storage can be added for research traceability.
- Shelving & Sample Racks
Adjustable shelves, removable racks, trays, and specialized holders can be designed to accommodate different seed-testing formats.
- Construction & Interior Materials
Stainless-steel interiors, insulation thickness, door configuration, viewing windows, and corrosion-resistant materials can be selected according to the application.
- Safety & Alarm Features
High/low temperature alarms, humidity alarms, door-open alarms, power-failure alerts, and over-temperature protection can be incorporated.
About Achieve Chem
Achieve Chem is a leading equipment manufacturer that covers all the prominent industries, including chemical, pharmaceutical, biotech, and agriculture. For each client from all different industries, we have manufactured equipment to match their operational requirements and their production goals. We have a capable engineering team, 6 core branches, and over 279,000m² production area, assuring the highest level of engineering. Also, each facility is compliant with strict quality/safety regulations and certified by international standards.
Post-delivery Services by Achieve Chem
- Our experts will install the Seed Germination Chamber and run required tests, ensuring proper cable connections and equipment working.
- Our continuous support will ensure safer and more efficient operations in the long run.
- Complete maintenance support with repair work done by expert engineers.
- Availability of spare parts, even at short notice, to reduce the overall downtime.
- Add further customizations and new features to adapt to your upgraded operations.
- 24/7 guidance and technical support by professionals.
- Regular software updates for smoother and lag-free working.
Applications of a Seed Germination Chamber
Seed Viability Testing
Allows researchers and commercial producers to determine the percentage of seeds that are healthy enough for germination.
Commercial Seed Production
Controlled environment conditions allow for optimized and faster seed sprouting for commercial usage.
Environmental and Academic Research
Used in advanced laboratories to recreate different environmental conditions to examine seed growth and the impact of climate on growth.
Seed Certification and Testing
Tests are performed on seeds to measure their viability for legal and quality compliance with regulatory laws.
Gain Complete Control with Expert Guidance
Seed germination is a highly complex process, where a simple mistake can cost you time and money. Connect with Achieve Chem experts to discuss your required temperature, humidity, lighting, chamber capacity, programming, and other specifications. Our team can help you identify the right configuration and customization options for your laboratory or industrial application.
Schedule a consultation with Achieve Chem experts for:
- Accurate price estimate
- Key industrial insights
- Understanding customization benefits.
Achieve Chem Certifications
 |
 |
 |
 |
FAQs
What is a seed germination chamber?
How does a seed germination chamber work?
What temperature is required for seed germination?
What humidity level is suitable for seed germination?
Do seed germination chambers require light?
What are the applications of a seed germination chamber?
What factors should I consider when choosing a seed germination chamber?
