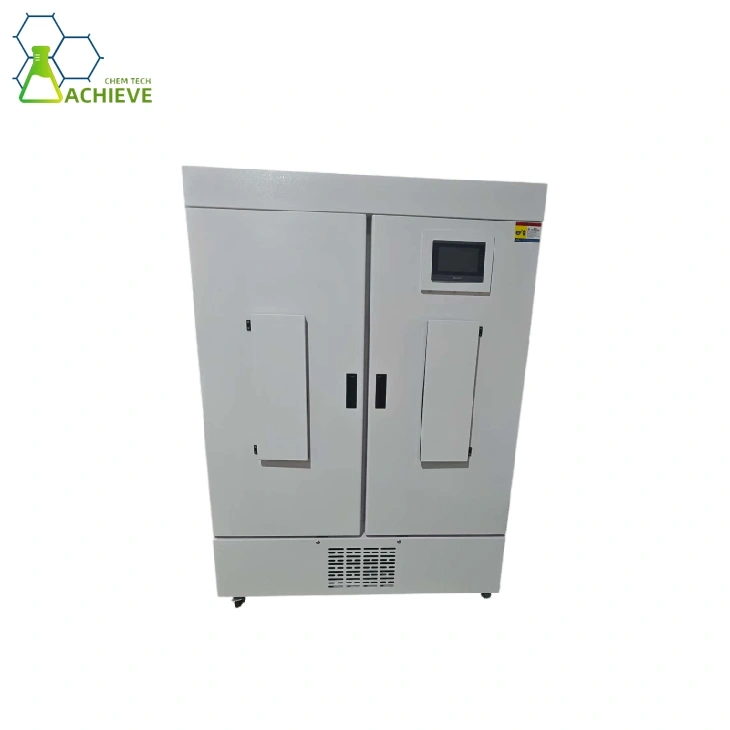

Artificial Climate Chamber
Description
Technical Parameters
Promising Safety and Energy Efficiency
At Achieve Chem, the precise engineering translates to highly energy-efficient operation, uniform biological growth, and significantly reduced risks of damage. On top of that, our maintenance support and professional guidance ensure high efficiency with long-term operations.
Modular Artificial Climate Chamber
Biotech, pharmaceutical, electronic, automotive, and agricultural research use Artificial Climate Chambers. To accommodate the climate chambers for different applications, we introduced modularity in our chamber design. This makes it possible to adjust the specifications of the chamber to match the application. While the specifications are modified, the core, ie, our flagship Intelligent Artificial Climate Chamber system, remains the same.
Key Specifications
Laboratory-scale Artificial Climate Chamber
|
Model |
Capacity |
Internal (External) Dimensions L × W × H (mm) |
Temperature Range / Fluctuation |
Humidity Range / Fluctuation |
Illumination |
|
PRX-80A |
80 L |
540×540×350 (590×590×1200) |
0–50°C ±0.5°C |
50–95% RH ±5% |
3,000 lx |
|
PRX-80B |
80 L |
540×540×350 (590×590×1200) |
0–50°C ±0.5°C |
50–95% RH ±5% |
12,000 lx |
|
PRX-180A |
180 L |
540×540×650 (590×590×1340) |
0–50°C ±1.0°C |
50–95% RH ±5% |
3,000 lx |
|
PRX-180B |
180 L |
540×540×650 (590×590×1340) |
0–50°C ±1.0°C |
50–95% RH ±5% |
12,000 lx |
|
PRX-180C |
180 L |
540×540×650 (590×590×1340) |
0–50°C ±1.0°C |
50–95% RH ±5% |
22,000 lx |
|
PRX-180D |
180 L |
540×540×650 (590×590×1340) |
0–50°C ±1.0°C |
50–95% RH ±5% |
30,000 lx |
|
PRX-280A |
280 L |
540×540×960 (590×590×1640) |
0–50°C ±1.0°C |
50–95% RH ±5% |
3,000 lx |
|
PRX-280B |
280 L |
540×540×960 (590×590×1640) |
0–50°C ±1.0°C |
50–95% RH ±5% |
12,000 lx |
|
PRX-280C |
280 L |
540×540×960 (590×590×1640) |
0–50°C ±1.0°C |
50–95% RH ±5% |
22,000 lx |
|
PRX-280D |
280 L |
540×540×960 (590×590×1640) |
0–50°C ±1.0°C |
50–95% RH ±5% |
30,000 lx |
Pilot-scale Artificial Climate Chamber
|
Model |
Capacity |
Internal (External) Dimensions L × W × H (mm) |
Temperature Range / Fluctuation |
Humidity Range / Fluctuation |
Illumination |
|
PRX-380A |
350 L |
540×540×1210 (590×590×1890) |
0–50°C ±1.0°C |
50–95% RH ±5% |
3,000 lx |
|
PRX-380B |
350 L |
540×540×1210 (590×590×1890) |
0–50°C ±1.0°C |
50–95% RH ±5% |
12,000 lx |
|
PRX-380C |
350 L |
540×540×1210 (590×590×1890) |
0–50°C ±1.0°C |
50–95% RH ±5% |
22,000 lx |
|
PRX-380D |
350 L |
540×540×1210 (590×590×1890) |
0–50°C ±1.0°C |
50–95% RH ±5% |
30,000 lx |
|
PRX-500A |
450 L |
620×620×1150 (680×680×1890) |
0–50°C ±1.0°C |
50–95% RH ±5% |
3,000 lx |
|
PRX-500B |
450 L |
620×620×1150 (680×680×1890) |
0–50°C ±1.0°C |
50–95% RH ±5% |
12,000 lx |
|
PRX-500C |
450 L |
620×620×1150 (680×680×1890) |
0–50°C ±1.0°C |
50–95% RH ±5% |
22,000 lx |
|
PRX-500D |
450 L |
620×620×1150 (680×680×1890) |
0–50°C ±1.0°C |
50–95% RH ±5% |
30,000 lx |
|
PRX-600A |
600 L |
1240×540×960 (1300×590×1640) |
0–50°C ±1.0°C |
50–95% RH ±5% |
3,000 lx |
|
PRX-600B |
600 L |
1240×540×960 (1300×590×1640) |
0–50°C ±1.0°C |
50–95% RH ±5% |
12,000 lx |
|
PRX-600C |
600 L |
1240×540×960 (1300×590×1640) |
0–50°C ±1.0°C |
50–95% RH ±5% |
22,000 lx |
|
PRX-600D |
600 L |
1240×540×960 (1300×590×1640) |
0–50°C ±1.0°C |
50–95% RH ±5% |
30,000 lx |
|
PRX-800A |
800 L |
1240×540×1210 (1300×590×1890) |
0–50°C ±1.0°C |
50–95% RH ±5% |
3,000 lx |
|
PRX-800B |
800 L |
1240×540×1210 (1300×590×1890) |
0–50°C ±1.0°C |
50–95% RH ±5% |
12,000 lx |
|
PRX-800C |
800 L |
1240×540×1210 (1300×590×1890) |
0–50°C ±1.0°C |
50–95% RH ±5% |
22,000 lx |
|
PRX-800D |
800 L |
1240×540×1210 (1300×590×1890) |
0–50°C ±1.0°C |
50–95% RH ±5% |
30,000 lx |
Industrial-scale Artificial Climate Chamber
|
Model |
Capacity |
Internal (External) Dimensions L × W × H (mm) |
Temperature Range / Fluctuation |
Humidity Range / Fluctuation |
Illumination |
|
PRX-1000A |
1,000 L |
1240×620×1210 (1300×680×1890) |
0–50°C ±1.0°C |
50–95% RH ±5% |
3,000 lx |
|
PRX-1000B |
1,000 L |
1240×620×1210 (1300×680×1890) |
0–50°C ±1.0°C |
50–95% RH ±5% |
12,000 lx |
|
PRX-1000C |
1,000 L |
1240×620×1210 (1300×680×1890) |
0–50°C ±1.0°C |
50–95% RH ±5% |
22,000 lx |
|
PRX-1000D |
1,000 L |
1240×620×1210 (1300×680×1890) |
0–50°C ±1.0°C |
50–95% RH ±5% |
30,000 lx |
|
PRX-1200A |
1,200 L |
1800×620×1210 (1860×680×1890) |
0–50°C ±1.0°C |
50–95% RH ±5% |
3,000 lx |
|
PRX-1200B |
1,200 L |
1800×620×1210 (1860×680×1890) |
0–50°C ±1.0°C |
50–95% RH ±5% |
12,000 lx |
|
PRX-1200C |
1,200 L |
1800×620×1210 (1860×680×1890) |
0–50°C ±1.0°C |
50–95% RH ±5% |
22,000 lx |
|
PRX-1200D |
1,200 L |
1800×620×1210 (1860×680×1890) |
0–50°C ±1.0°C |
50–95% RH ±5% |
30,000 lx |
|
PRX-1500A |
1,500 L |
1860×620×1210 (1900×680×1890) |
0–50°C ±1.0°C |
50–95% RH ±5% |
3,000 lx |
|
PRX-1500B |
1,500 L |
1860×620×1210 (1900×680×1890) |
0–50°C ±1.0°C |
50–95% RH ±5% |
12,000 lx |
|
PRX-1500C |
1,500 L |
1860×620×1210 (1900×680×1890) |
0–50°C ±1.0°C |
50–95% RH ±5% |
22,000 lx |
|
PRX-1500D |
1,500 L |
1860×620×1210 (1900×680×1890) |
0–50°C ±1.0°C |
50–95% RH ±5% |
30,000 lx |
|
PRX-2000A |
2,000 L |
2345×705×1145 (2485×765×1890) |
0–50°C ±1.0°C |
50–95% RH ±5% |
3,000 lx |
|
PRX-2000B |
2,000 L |
2345×705×1145 (2485×765×1890) |
0–50°C ±1.0°C |
50–95% RH ±5% |
12,000 lx |
|
PRX-2000C |
2,000 L |
2345×705×1145 (2485×765×1890) |
0–50°C ±1.0°C |
50–95% RH ±5% |
22,000 lx |
|
PRX-2000D |
2,000 L |
2345×705×1145 (2485×765×1890) |
0–50°C ±1.0°C |
50–95% RH ±5% |
30,000 lx |
Remarks
- 600 - 1000 L models come with a double-door configuration
- 1200 L and above come with a triple-door configuration
- Each Artificial Climate Chamber is further subcategorized into Type A , Type B , Type C , and Type D based on the illumination intensity.
Note: For specialized applications that require prolonged cultivation at temperatures below 10°C or above 40°C, and relative humidity below 50% RH, we highly recommend that you speak with our engineers.
Artificial Climate Chamber – Product Highlights
Suitable for Multiple Applications
Our Artificial Climate Chamber is adaptable for various applications across different industries, including aerospace, automotive, agriculture, biotechnology, pharmaceutical, food processing, and life sciences.
Alarm System Integration
Protect the sensitive and expensive compounds from excessive heat with the help of over-temperature alarm systems. Set the values based on the sample type to interrupt operations at the right time.
Programmable Phases
The intelligent artificial climate chamber can divide the cultivation/germination process into up to 30 different phases. Each phase can be customized at a set temperature range, humidity value, and illumination intensity.
Accurate Environmental Simulation
The advanced control panel, along with precise automation, allows you to recreate ideal environmental conditions inside the chamber. Ideal for testing plant growth and the shelf life of different materials.
Convenient Data Analysis
The additional RS485 connectivity in our artificial climate chambers allows data monitoring and recording simultaneously. It allows you to extract and store the data quickly and document the chamber operations.
Modular Design
Reduce the overall time and frequency of maintenance work with modular technology. It also makes repair work and scheduled maintenance quick and convenient, which further translates to reducing the operating cost.
Durable Interior and Exterior
Both the interior and exterior of our climate chambers are made with quality-compliant materials. This results in contamination-free testing, protecting the samples from both external contamination and internal environmental factors.
Lower Temperature Fluctuation
With our advanced engineering, we have managed to limit the temperature fluctuation within ±0.5°C for lab equipment and ±1.0°C for larger scales.
Working Principle of an Artificial Climate Chamber
Set temperature/humidity/illumination conditions → Sensors monitor the environment → Controller compares actual vs. preset values → Climate-control systems adjust conditions → Airflow distributes them uniformly → Sensors continuously monitor and maintain the desired environment.
Artificial Climate Chamber Designed for You
Standard Equipment for Specialized Requirements
A standard artificial climate chamber can perform well for standard or general requirements. Especially in cases with short operational duration and where temperature/humidity levels do not exceed a certain level. Hence, they fail to deliver optimal results for operations that include larger sample quantities, extreme temperature control, conditional restrictions, and highly sensitive materials and bio-compounds.
Role of Customization in Recreating Diverse Climates
Customization, whether for a laboratory artificial climate incubator or industrial-scale equipment, is more of a necessity than optional for today's dynamic market. It is the extent of customization that differs. At Achieve Chem, we help you grasp this extent to introduce the right amount of custom features to your artificial climate chamber equipment.
Customization Options Available
- Temperature/Humidity Range
Pick the temperature and humidity range to match the optimal growth requirements for plants, seeds, and other materials.
- Shelf Numbers
Choose the number of shelves based on the sample scales. Along with the number, the placement and arrangement of the shelves is also customizable.
- Automation Degree
We have manual, semi-automatic, and automatic options available for our climate chambers.
- Door-configurations
You can choose from single, double, or triple door configurations to match your sample scale to ensure uniform cultivation.
- Monitoring and Control
Opt for additional connectivity and move data quickly to your preferred storage device, all while monitoring the cultivation process.
- Illumination Intensity
Choose from Type A, B, C, and D to get the right lighting intensity for your climate chambers.
- Temperature Protection
Opt for advanced alarm systems that stop the artificial climate incubator operations in over-temperature conditions.
- CO₂ Control/Injection System
Equip your climate chambers with CO2 inlets for more controlled plant growth and seed germination.
About Achieve Chem
As a global OEM and ODM, Achieve Chem has over 18 years of experience delivering quality-compliant equipment and optimized manufacturing solutions for pharmaceutical, biotech, agriculture, and chemical industries. Supported by a capable engineering team, 6 core branches, and over 279,000 m² of production area, we help businesses improve profitability, quality control, and operational efficiency. Our comprehensive post-delivery support includes installation, scheduled maintenance, repairs, and ongoing technical assistance.
Highlights of Partnering with Achieve Chem
- Safe, on-time delivery with a wide logistics network
- Short-notice repair work with a quick response time
- 24/7 customer support for issue resolution
- Parts availability for equipment upgrades even at short notice
- Personalized solutions for cost-efficiency
- Lab, pilot, and industrial scale equipment
Applications of an Artificial Climate Chamber
Plant Growth and Agriculture
Provides controlled temperature, humidity, and lighting conditions to study plant growth, crop development, and environmental responses.
Biology and Medical Research
Enables controlled environmental conditions for studying biological processes, microorganisms, cells, and other sensitive samples.
Pharmaceutical Testing
Supports drug stability and shelf-life studies by exposing pharmaceutical products to precisely controlled temperature and humidity conditions.
Electronic Component Testing
Simulates different temperature and humidity conditions to evaluate the performance, durability, and reliability of electronic components.
Schedule a Consultation Session
Get expert guidance tailored to your artificial climate chamber requirements. Schedule a consultation with Achieve Chem's engineers to discuss specifications, customization options, and the right configuration for your application.
Need a closer look before making a decision?
Request product images, videos, or a live/recorded demonstration to better understand the chamber's design, features, controls, and operation.
[Schedule a Consultation] or [Request Images, Videos & Demo]
Achieve Chem Certifications
 |
 |
 |
 |
FAQs
What is the significance of cleaning in artificial climate chambers, and how does it affect the growth?
What factors should I consider before investing in an Artificial Climate Chamber?
What are the different components of an intelligent artificial climate chamber?
Why should I opt for an expert consultation before purchasing an Artificial Climate Chamber?
Is customization always necessary in an artificial climate incubator for lab research?
What are the benefits of partnering with a certified manufacturer of the climate chamber for plants?
Will I receive technical support from Achieve Chem engineers?
