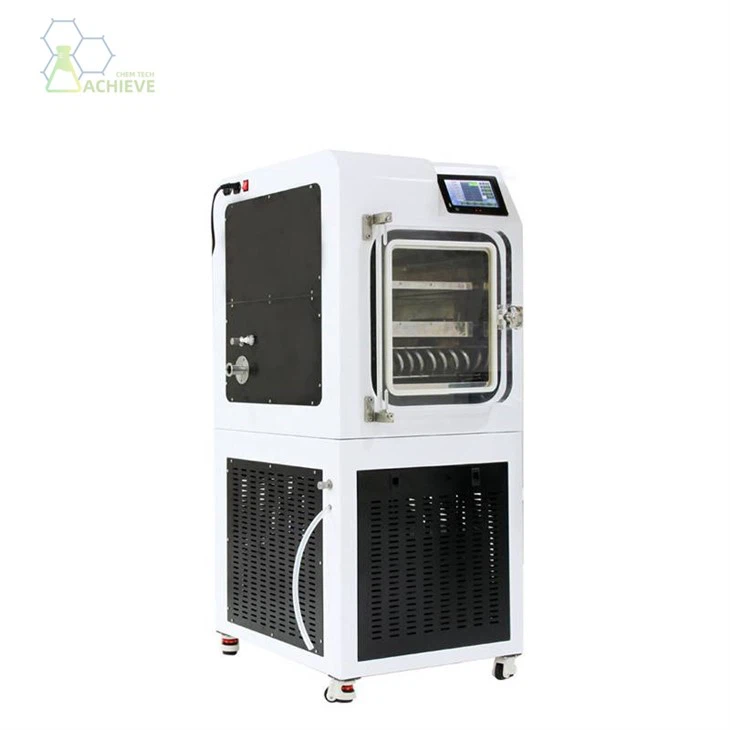

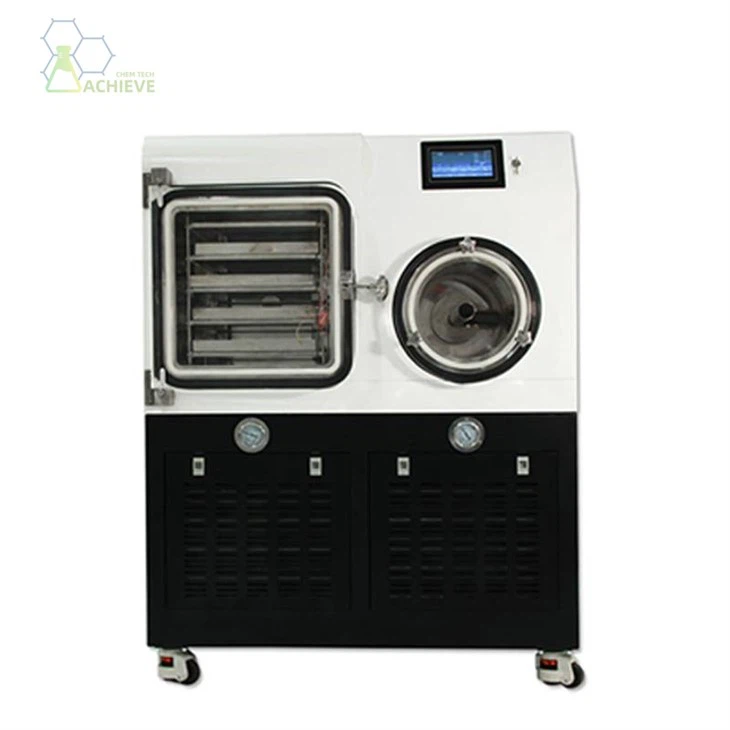

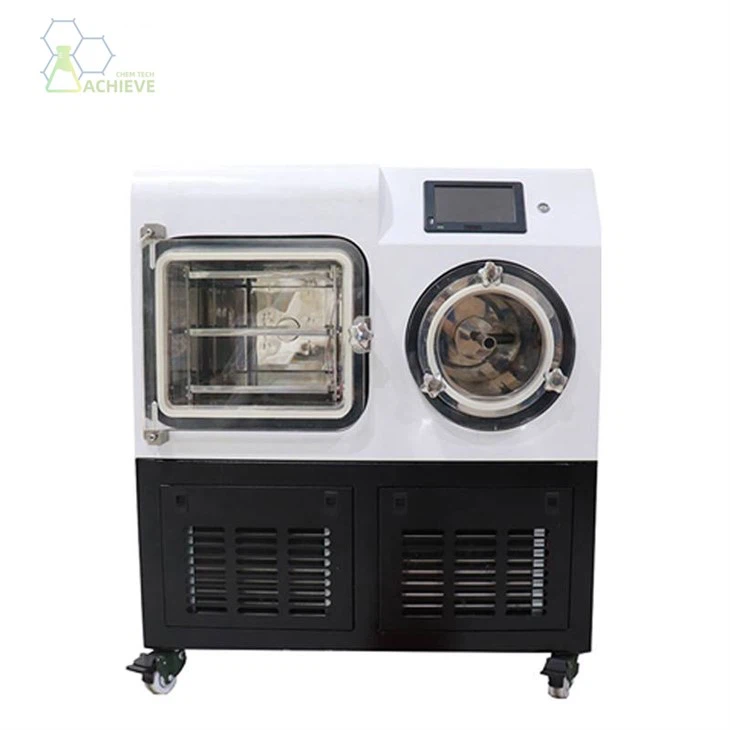

Pilot Freeze Dryer
(a)10 series
Lab Scales Desktop(Freeze-dried material 1.5-2KG)
(b)12 series
Lab Scales Vertical(Freeze-dried material 2KG)
(c)18 series
Scientific Research Scales(Freeze-dried material 3KG)
2.Pilot Freeze Dryer:
0.2m²/0.3m²/0.5m²/1m²/2m²/---Pilot Scales(Freeze-dried material 3KG-20KG)
3.Industrial Freeze Dryer:
5㎡/10㎡/20㎡/30㎡/50㎡/100㎡/200㎡/300㎡(Freeze-dried Weight 5T~60T)
4.Customization: set up the specifications you need
(a)Freeze-dried Area
(b)Freeze-dried Weight
(c)Freeze-dried Material
(d)Interlayer Quantity/Size
(e)Cold Trap Temperature
Description
Technical Parameters
The pilot freeze dryer is a widely used equipment in industrial production, which combines the essence of traditional drying technology with the achievements of modern technology, providing efficient and energy-saving solutions for material drying. This type of dryer is not only suitable for large-scale production lines, but also meets the needs of laboratories and small-scale production. Its application fields cover multiple industries such as food, chemical, pharmaceutical, and environmental protection.
Its design also fully considers material properties and drying requirements. For example, for thermosensitive materials such as biological products, biopharmaceuticals, and enzyme preparations, the Chinese dryer adopts an instantaneous heating method, which means that the material is only subjected to high temperature when sprayed into mist like particles, thereby maintaining its active ingredients from being damaged. This design gives Chinese style dryers unique advantages in drying these special materials.
(View other types: Laboratory Freeze Dryer; Industrial Freeze Dryer)
We provide pilot freeze dryer, please refer to the following website for detailed specifications and product information.
Product: https://www.achievechem.com/freeze-dryer/pilot-freeze-dryer.html
Product Parameter
According to the heating method, it can be divided into two types: Electric Heating and Silicone Oil Heating.
Electric Heating
| Electric Heating Freeze dryer | |||||||
| Model | VFD-2A-50 | VFD-2A-80 | VFD-1B-50 | VFD-1B-80 | VFD-4A-50 | VFD-7A-50 | |
| Specification | Standard | Standard | Manual gland type | Manual gland type | Standard | Standard | |
| Freeze-dried Area | 0.2m² | 0.2m² | 0.1m² | 0.1m² | 0.4m² | 0.6m² | |
| Max.Freeze-dried Weight | 2Kg | 2Kg | 1Kg | 1Kg | 4Kg | 7Kg | |
| Plate Temperature Range (No-Load) |
-50°C～+70°C | -65°C～+60°C | -50°C～+70°C | -65°C～+70°C | -50°C～+60°C | -50°C～+60°C | |
| Quantity of Vials | ф12mm | 1600 | 1600 | 800 | 800 | 2916 | 3645 |
| ф16mm | 864 | 864 | 432 | 432 | 1600 | 2000 | |
| ф22mm | 442 | 442 | 221 | 221 | 872 | 1090 | |
| Cold Trap Temperature (No-Load) |
≤ -60°C | ≤ -80°C | ≤ -60°C | ≤ -80°C | ≤ -60°C | ≤ -60°C | |
| Water Catch | 4Kg/Batch | 6Kg/Batch | 10Kg/Batch | ||||
| Standard Vacuum | ≤5Pa | ||||||
| Material Tray | Size | 400*270mm | 400*270mm | 400*270mm | 400*270mm | 300x340mm | 300x340mm |
| Quantity | 2 | 2 | 1 | 1 | 4 | 5 | |
| Interlayer Distance | 70mm | 70mm | 100mm | 100mm | 50mm | 50mm | |
| Ambient Temperature | ≤ 25°C | ||||||
| Dimensions | 810*680*1390 | 810*680*1390 | 810*680*1390 | 810*680*1390 | 810*880*1390 | 810*880*1540 | |
| Power Supply/Overall power | 220V ; 1.9KW | 220V ; 2.1Kw | 220V ; 1.8Kw | 220V ; 2.1Kw | 220V ; 2.7Kw | 380V ; 4.5Kw | |
| Intelligent Control | Mobile APP Control | ||||||
| Total Weight | 240kg | 240kg | 240kg | 240kg | 400kg | 430kg | |
Silicone oil heating
| Single Chamber (Silicone oil heating) |
|||||
| Model | SZFD-2A | SZFD-1B | SZFD-3A | SZFD-5A | |
| Specification | Standard | Manual gland type | Standard | Standard | |
| Freeze-dried Area | 0.2m² | 0.1m² | 0.3m² | 0.5m² | |
| Max.Freeze-dried Weight | 2Kg | 1Kg | 3Kg | 5Kg | |
| Plate Temperature Range (No-Load) |
-50～+60 °C | ||||
| Temperature Control Accuracy (At balance) |
±1°C | ||||
| Quantity of Vials | ф12mm | 1458 | 729 | 2187 | 3645 |
| ф16mm | 800 | 400 | 1200 | 2000 | |
| ф22mm | 436 | 218 | 654 | 1090 | |
| Cold Trap Temperature (No-Load) |
≤ -70°C | ||||
| Water Catch | 5Kg/Batch | 4Kg/Batch | 8Kg/Batch | 10Kg/Batch | |
| Standard Vacuum | ≤5Pa | ||||
| Material Tray | Size | 300*340mm | 300*340mm | 300*340mm | 300*340mm |
| Quantity | 2 | 1 | 3 | 5 | |
| Interlayer Distance | 70mm | 100mm | 70mm | 70mm | |
| Dimensions | 810*680*1390 | 810*680*1390 | 810*880*1390 | 810*880*1540 | |
| Power Supply/Overall power | 220V 50HZ ; 2.1Kw | 220V 50HZ ; 2.1Kw | 220V 50HZ ; 3.5Kw | 220V 50HZ ; 3.8Kw | |
| Intelligent Control | Mobile APP Control | ||||
| Total Weight | 240kg | 240kg | 400kg | 430kg | |
| Double Chamber (Silicone oil heating) |
||||||
| Model | SZFD-20A | SZFD-20B | SZFD-40A | SZFD-30B | SZFD-70A | |
| Specification | Standard | Manual gland type | Standard | Manual gland type | Standard | |
| Freeze-dried Area | 0.25m² | 0.2m² | 0.4m² | 0.3m² | 0.69m² | |
| Max.Freeze-dried Weight | 2-4Kg | 2-4Kg | 4-6Kg | 3-5Kg | 7-10Kg | |
| Plate Temperature Range (No-Load) |
-50～+70 °C | |||||
| Temperature Control Accuracy (At balance) |
±1°C | |||||
| Quantity of Vials | ф12mm | 1824 | 1458 | 2916 | 2187 | 5084 |
| ф16mm | 1008 | 800 | 1600 | 1200 | 2852 | |
| ф22mm | 510 | 436 | 872 | 654 | 1476 | |
| Cold Trap Temperature (No-Load) |
≤ -75°C | |||||
| Water Catch | 6Kg/Batch | 6Kg/Batch | 8Kg/Batch | 8Kg/Batch | 15Kg/Batch | |
| Standard Vacuum | ≤5Pa | |||||
| Material Tray | Size | 350*360mm | 300*340mm | 300*340mm | 360*480mm | |
| Quantity | 2+1 (Radiating Layer) | 2+1 (Radiating Layer) | 4+1 (Radiating Layer) | 3+1 (Radiating Layer) | 4+1 (Radiating Layer) | |
| Interlayer Distance | 100mm | 80mm | 70mm | 80mm | 70mm | |
| Defrosting Method | Electric | |||||
| Cooling Method | Air Cooling | |||||
| Power Supply/Overall Power | 220V 50HZ ; 3300W | 220V 50HZ ; 3800W | 220V/380V 50HZ ; 3500W |
220V/380V 50HZ ; 4100W |
220V/380V 50HZ ; 5000W |
|
| Total Weight | 350kg | 350kg | 400kg | 400kg | 500kg | |
| Dimensions (left and right chamber) | 1280*840*1840mm | 1280*840*1840mm | 1280*840*1840mm | 1280*840*1840mm | 1280*840*1840mm | |
| Dimensions (front and behind chamber) | 1500*750*1570mm | 1500*750*1570+200mm | 1500*750*1570mm | 1500*750*1570mm | 1700*750*1570mm | |
| Double Chamber (Silicone oil heating) |
||||||
| Model | SZFD-50B | SZFD-100A | SZFD-100B | SZFD-200A | SZFD-200B | |
| Specification | Manual gland type | Standard | Manual gland type | Standard | Manual gland type | |
| Freeze-dried Area | 0.55m² | 1.04m² | 1.15m² | 2.25m² | 2.25m² | |
| Max.Freeze-dried Weight | 6-8Kg | 10Kg | 12Kg | 23Kg | 23Kg | |
| Plate Temperature Range (No-Load) |
-50～+70 °C | |||||
| Temperature Control Accuracy (At balance) |
±1°C | |||||
| Quantity of Vials | ф12mm | 4080 | 7626 | 8320 | 16560 | 15940 |
| ф16mm | 2200 | 4278 | 4560 | 9180 | 8800 | |
| ф22mm | 1152 | 2241 | 2464 | 4680 | 4800 | |
| Cold Trap Temperature (No-Load) |
≤ -75°C | |||||
| Water Catch | 10Kg/Batch | 15Kg/Batch | 15Kg/Batch | 40Kg/Batch | 40Kg/Batch | |
| Standard Vacuum | ≤5Pa | |||||
| Material Tray | Size | 325*425mm | 480*360mm | 480*600mm | 500*900mm | 600*750mm |
| Quantity | 4+1 (Radiating Layer) | 6+1 (Radiating Layer) | 4+1 (Radiating Layer) | 5+1 (Radiating Layer) | 5+1 (Radiating Layer) | |
| Interlayer Distance | 80mm | 70mm | 80mm | 70mm | 80mm | |
| Defrosting Method | Electric | |||||
| Cooling Method | Air Cooling | |||||
| Power Supply/Overall Power | 220V/380V ; 5500W |
380V 6.5kW | 380V 7.5kW | 380V 13.5KW | 380V 15KW | |
| Total Weight | 580kg | 750kg | 950kg | 1300kg | 1800kg | |
| Dimensions (left and right chamber) | 1280*840*1970mm | 1280*840*1670mm | 1500*1000*1670+300mm | Customization | Customization | |
| Dimensions (front and behind chamber) | 1500*750*1570mm+270 | 1700*750*1660mm | 1850*1100*1770+270mm | 2550*1200*1750mm | 2650*1400*1800+350mm | |
| Double Chamber (Silicone oil heating) |
||||||
| Model | SZFD-300A | SZFD-300B | SZFD-500A | SZFD-500B | SZFD-1000A | |
| Specification | Standard | Manual gland type | Standard | Manual gland type | Standard | |
| Freeze-dried Area | 3.15m² | 3.15m² | 5.4m² | 5.4m² | 10.5m² | |
| Max.Freeze-dried Weight | 32Kg | 32Kg | 52Kg | 54Kg | 100Kg | |
| Plate Temperature Range (No-Load) |
-50～+70 °C | |||||
| Temperature Control Accuracy (At balance) |
±1°C | |||||
| Quantity of Vials | ф12mm | 23184 | 22316 | 33474 | 36363 | 77827 |
| ф16mm | 12852 | 12320 | 18480 | 20075 | 42966 | |
| ф22mm | 6552 | 6720 | 10080 | 10600 | 22923 | |
| Cold Trap Temperature (No-Load) |
≤ -75°C | ≤ -75°C | ≤ -70°C | ≤ -70°C | ≤ -70°C | |
| Water Catch | 60Kg/Batch | 60Kg/Batch | 130Kg/Batch | 100Kg/Batch | 200Kg/Batch | |
| Standard Vacuum | ≤5Pa | |||||
| Material Tray | Size | 500*900mm | 600*750mm | 1000mm*750mm | 1200*900mm | 1500mm*990mm |
| Quantity | 7+1 (Radiating Layer) | 7+1 (Radiating Layer) | 7+1 (Radiating Layer) | 5+1 (Radiating Layer) | 7+1 (Radiating Layer) | |
| Interlayer Distance | 70mm | 80mm | 70mm | 100mm | 70mm | |
| Defrosting Method | Electric | Electric | Water | Water | Water | |
| Cooling Method | Air Cooling | Water Cooling | ||||
| Power Supply/Overall Power | 380V 14.5KW | 380V 16kW | 380V 35kw | 380V 35kW | 380V 50kW | |
| Total Weight | 1500kg | 2000kg | 3500kg | 4000kg | 6300kg | |
| Dimensions (left and right chamber) | Customization | Customization | / | / | / | |
| Dimensions (front and behind chamber) | 2550*1200*1850mm | 2770*1400*1970+530mm | 3250*1350*2500mm | 5260*1540*2670mm | 5500*1450*2650mm | |

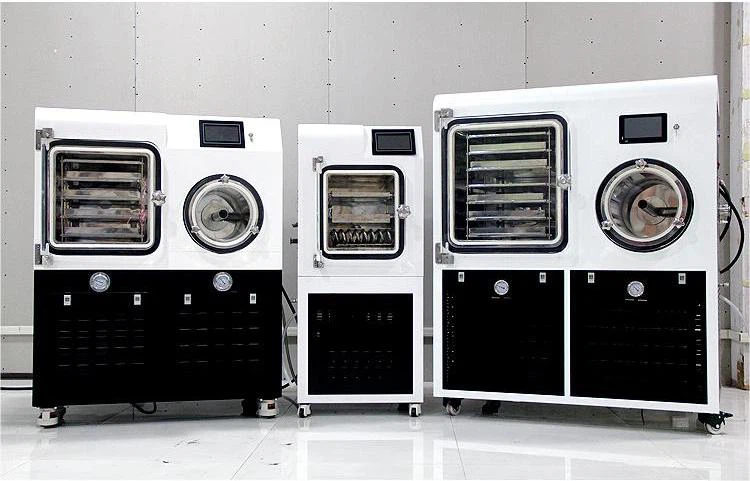

Product Models
Here is a comparison list between a standard pilot freeze dryer and a gland pilot freeze dryer:
● Purpose
- Standard Pilot Freeze Dryer: It is used for general freeze-drying applications, where the focus is on preserving the product's quality and characteristics.
- Gland Pilot Freeze Dryer: It is specifically designed for drying products that contain solvents or substances with high vapor pressure, focusing on efficient solvent recovery.
● Design
- Standard Pilot Freeze Dryer: It has a conventional design with a single condenser and a refrigeration system to remove moisture from the product.
- Gland Pilot Freeze Dryer: It features an additional gland unit that allows for the collection and separation of volatile solvents during the drying process.
● Solvent Recovery
- Standard Pilot Freeze Dryer: It does not have specific provisions for solvent recovery, as it is primarily used for non-solvent-based products.
- Gland Pilot Freeze Dryer: It incorporates a gland unit that enables the recovery of solvents, reducing waste and maximizing efficiency.
● Vacuum System
- Standard Pilot Freeze Dryer: It typically has a standard vacuum system suited for general freeze-drying purposes.
- Gland Pilot Freeze Dryer: It often includes a specialized vacuum system capable of handling solvents and high vapor pressure substances.
● Product Applications
- Standard Pilot Freeze Dryer: It is suitable for freeze-drying a wide range of products, including food, pharmaceuticals, and biological materials.
- Gland Pilot Freeze Dryer: It is commonly used for drying products that contain solvents, such as organic compounds, fine chemicals, and certain pharmaceutical formulations.
● Cost
- Standard Pilot Freeze Dryer: It generally has a lower cost compared to a gland pilot freeze dryer due to its simpler design and lack of specialized solvent recovery features.
- Gland Pilot Freeze Dryer: It may have a higher cost due to its specialized design and the inclusion of solvent recovery capabilities.
Product Structure
Pilot freeze dryer is suitable for preliminary small-scale processing and production. Unlike laboratory freeze dryer that use partitions to divide the freeze-drying chamber and cold trap into two layers: upper and lower, it have independent freeze-drying chambers and cold trap chambers.
The function of the cold trap is to capture sublimated water vapor. All pre-freezing and drying operations can be completed in the freeze-drying chamber without the need of manual operation. It is an ideal choice for freeze-drying machines, it has complex manufacturing processes and high manufacturing costs, it is suitable for freeze-drying of special products such as pharmaceuticals and biological products.
50 & 100 Series
The pilot freeze dryer, as one of the core equipment in freeze-drying technology, boasts a carefully designed and fully functional structure. The device consists of several key systems, each playing an integral role in its operation.
Refrigeration System: This is the core component of the pilot freeze dryer, responsible for providing the required low-temperature environment for the freeze-drying process. By precisely controlling the temperature, the refrigeration system ensures uniform cooling of the material, enabling efficient removal of water content.
Control System: The control system serves as the "brain" of the pilot freeze dryer, monitoring and regulating various parameters of the equipment. By accurately controlling key parameters such as temperature, pressure, and time, the control system ensures that the freeze-drying process follows the preset program, guaranteeing product quality and stability.

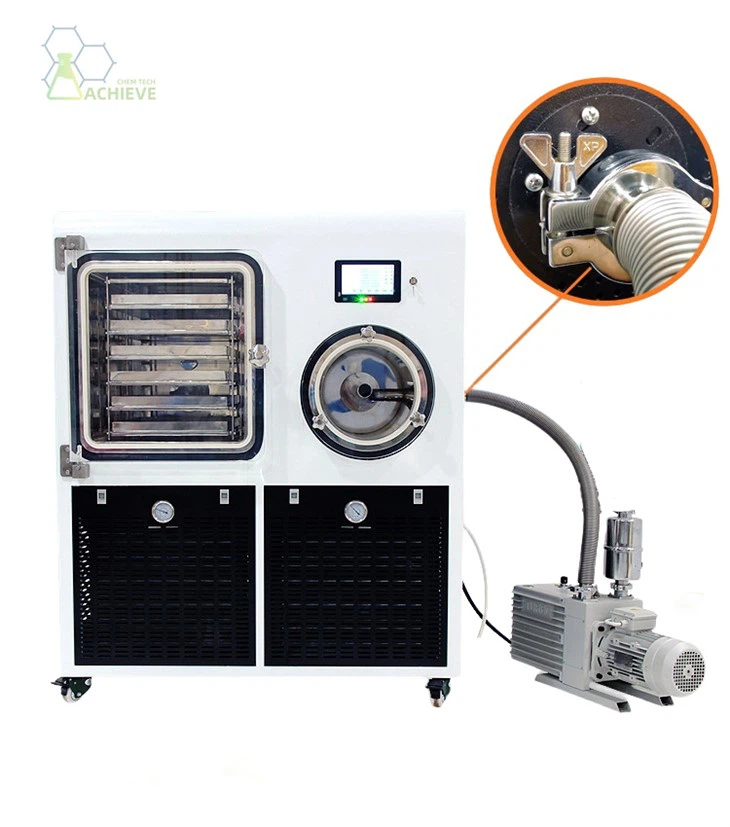

Vacuum System: The vacuum system's primary task is to create and maintain a high-vacuum environment during the freeze-drying process. This environment helps reduce the boiling point of water in the material, accelerating the sublimation process. Additionally, the high vacuum prevents oxygen contact with the material, avoiding possible oxidation reactions.
Circulation System: The circulation system is responsible for providing the necessary heat exchange during the freeze-drying process. By circulating the heat medium, this system ensures uniform heating or cooling of the material, improving freeze-drying efficiency and ensuring uniform product quality.
Hydraulic System:
The hydraulic system primarily provides power to drive various moving components of the pilot freeze dryer, such as the lifting of the freeze-drying chamber and the feeding of materials. Its stable operation is crucial for ensuring the continuity and efficiency of the freeze-drying process.
The structural design of the pilot freeze dryer has been meticulously planned, taking into account the intricacies and diversity of the freeze-drying process. By leveraging the synergistic interaction of its various systems, including the refrigeration, vacuum, and control systems, it achieves an efficient, stable, and controllable freeze-drying cycle. This ensures the production of high-quality, long-lasting, and easily transportable dried products, catering to the diverse needs of various industries.
Product Features
Pilot freeze dryer is highly specialized equipment that offer a range of distinct advantages for a wide variety of applications.
These machines are designed to provide a controlled and reproducible freeze-drying environment, making them ideal for research, development, and small-scale production. Here are some key characteristics of pilot freeze dryer products:
key characteristics
Scalability and Flexibility: Pilot freeze dryer is designed to offer scalability, allowing for easy transitions from research to larger-scale production. The machines are often modular, meaning they can be easily upgraded or expanded as needs change. This flexibility makes them invaluable for companies that require a bridge between lab-scale testing and full-scale production.
Precision Control: These machines feature precise control systems that allow for tight control over key parameters such as temperature, pressure, and vacuum levels. This precision is essential for ensuring consistent freeze-drying results and product quality.
Ease of Use: Pilot freeze dryer is typically designed with user-friendly interfaces and controls, making them accessible even to operators with limited experience. The machines often come with intuitive software that facilitates monitoring and adjusting process parameters in real-time.
Safety Features: Safety is paramount in freeze drying, and pilot freeze dryer come with a range of safety features to protect operators and the equipment itself.
These features may include automatic shut-off in case of malfunctions, as well as protective shields and guards to prevent operator errors.
Versatility: Pilot freeze dryer can be used for a wide variety of applications, including pharmaceuticals, biotechnology, food processing, and more.
The machines are compatible with a range of materials and can be configured to meet specific freeze-drying requirements.
Cost-Effectiveness: While pilot freeze dryer istypically more expensive than lab-scale models, their scalability and flexibility make them cost-effective investments for companies that require consistent, high-quality freeze-drying results.
Long-term, they can pay for themselves through increased productivity, reduced waste, and improved product quality.
Products Application
Pilot freeze dryer has become an indispensable tool in various research and production settings. Their applications range from pharmaceutical research to food preservation and biotechnology.
In the field of pharmacology, pilot freeze dryer plays a crucial role in the development of drugs and vaccines. They are often used to stabilize sensitive biological materials, such as proteins and cells, by removing water from them. This process helps preserve the integrity of these materials, making them suitable for long-term storage and transportation. Additionally, these machines are used to produce clinical trial batches of drugs, allowing researchers to test their efficacy and safety in a controlled environment.
In the food industry, pilot freeze dryer is used to create freeze-dried fruits, vegetables, and other food products. This process removes moisture from the food, preventing microbial growth and extending shelf life. Freeze-dried foods are also lighter and easier to transport, making them ideal for remote areas or disaster relief operations.
Biotechnology companies also rely on pilot freeze dryer for their research and development efforts. These machines are used to preserve cultures and biological samples, ensuring their viability and stability. By removing moisture, these samples can be stored for extended periods without the need for refrigeration.
Moreover, pilot freeze dryer is also finding their way into academic research laboratories.
They provide a cost-effective way for researchers to test their hypotheses and develop new technologies. These machines allow researchers to work with small volumes of material, enabling them to quickly iterate and refine their experiments.
Overall, pilot freeze dryer has become a versatile tool in various research and production settings. Their ability to preserve sensitive materials, extend shelf life, and simplify transportation has made them invaluable in fields such as pharmacology, food preservation, and biotechnology.
As technology continues to advance, we can expect these machines to become even more efficient and reliable, further expanding their applications in various industries.
