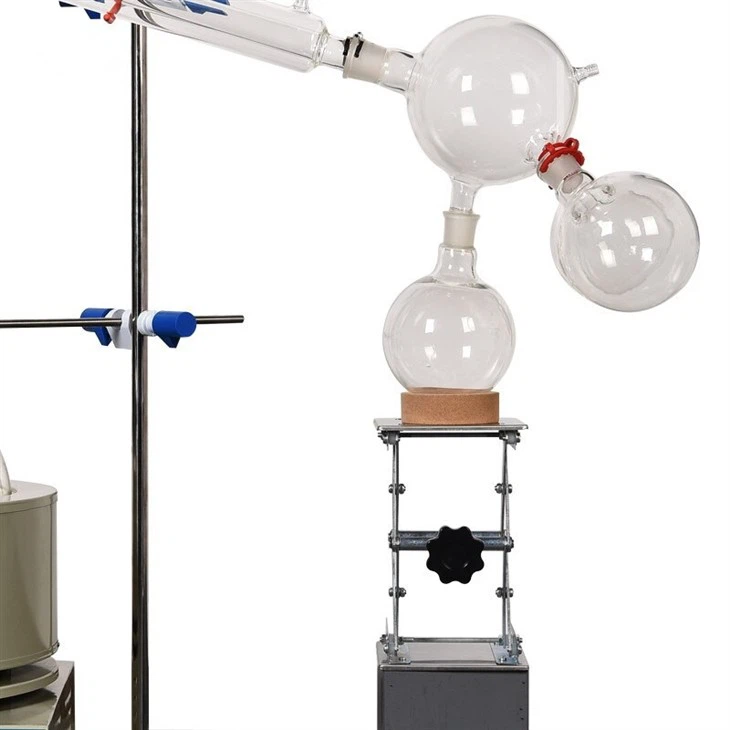

1l Short Path Distillation Kit
2. Capacity: 1L-20L
3. Applications: Chemical industry, pharmaceutical industry, flavor and fragrance industry, food and beverage industry, cannabis extract, etc.

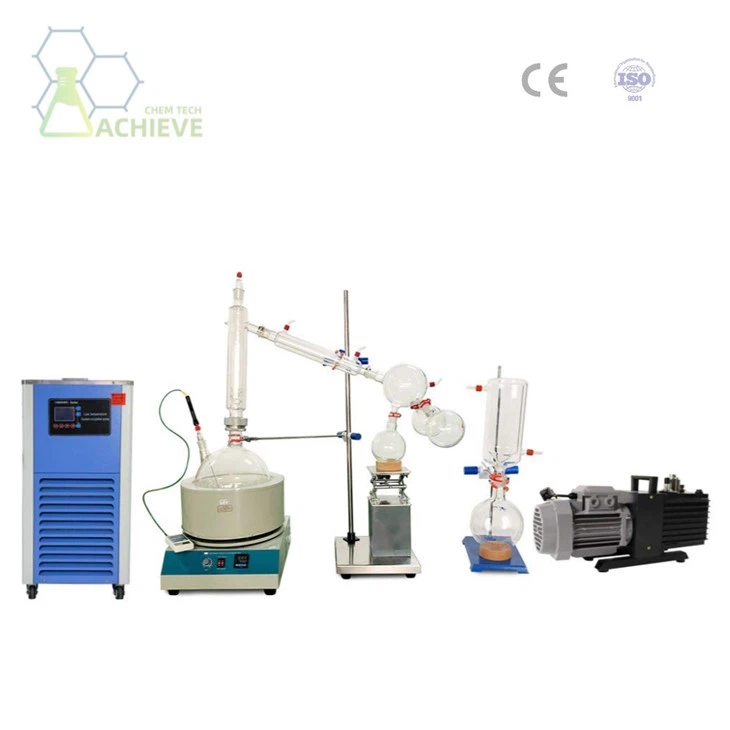

4. Turnkey Solution: Heating and cooling circulator, vacuum pump

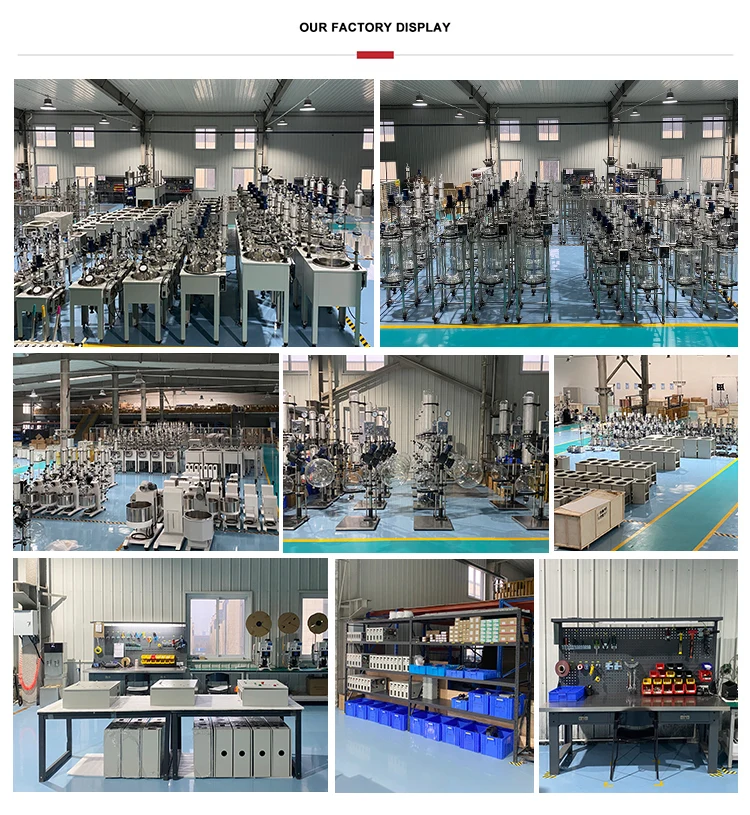

5. Manufacturer: ACHIEVE CHEM Xi’an Factory
6. 16 years experiences on Chemical Equipment
7. CE and ISO certification
8. Professional shipping
9. One-year worry-free warranty
10. 24/7 after-sales service
Description
Technical Parameters
The 1l short path distillation kit, as an indispensable high-precision separation tool in the laboratory, is deeply rooted in the ultimate pursuit of precision and efficiency in sample processing. This kit cleverly integrates the essence of short-range distillation technology, specifically designed for processing precious, thermosensitive, or trace samples, ensuring the accuracy and reliability of experimental results. Under the careful creation of a reduced pressure environment, the 1L short-range distillation kit can significantly lower the boiling point of liquid mixtures. This not only accelerates the distillation process, but also effectively reduces the damage that high temperatures may cause to the sample, especially for compounds that are prone to decomposition, polymerization, or denaturation at high temperatures. This characteristic is particularly important. By precisely controlling the degree of pressure reduction, researchers can fine tune alembic conditions to meet the specific requirements of different samples and achieve more accurate separation results. Its unique short-range design greatly shortens the migration path of vapor molecules from the evaporation surface to the condensation surface, which greatly reduces the heat loss and possible side reactions of vapor during transport, ensuring high purity and low residue of the distillate. This design not only improves alembic efficiency, but also makes the alembic process more energy-efficient and environmentally friendly, in line with modern laboratories' pursuit of sustainable development.
We provide 1l short path distillation kit, please refer to the following website for detailed specifications and product information.
Product: https://www.achievechem.com/chemical-equipment/1l-short-path-distillation-kit.html
Product Introduction
|
|
|
|
|
The 1l short path distillation kit is a alembic equipment designed specifically for laboratories, particularly suitable for handling small amounts of samples that require fine separation and purification. This kit is based on short-range distillation technology, which separates the boiling points of each component in a liquid mixture under reduced pressure conditions. Its unique design enables vapor molecules to quickly transfer from the evaporation surface to the condensation surface in a very short distance, thereby achieving an efficient and low residue distillation process.
Basic Composition
A typical 1L short-range distillation kit typically includes the following main components:
(1) Distillation flask (1L):
As a container for heating and evaporating samples, it is usually made of high borosilicate glass material, which has good heat resistance and corrosion resistance. The distillation flask is designed with a standard grinding interface for easy connection to other components.
(2) Heating system:
Usually includes an electric heating jacket or heating plate, used to provide the heat energy required for distillation. The electric heating sleeve can uniformly heat the distillation flask, ensuring stable evaporation of the sample at the predetermined temperature.
(3) Condenser tube:
Located above the distillation flask, used for cooling and collecting evaporated vapor. The condenser tube is filled with a cooling medium (such as water or refrigerant) inside to rapidly reduce the temperature of the vapor and condense it into a liquid.
(4) Receiver bottle:
Used to collect the distillate cooled by the condenser tube. The receiving bottle usually also has a standard ground mouth interface for easy connection with the condenser tube.
(5) Vacuum system:
Including a vacuum pump and connecting pipelines, used to create a reduced pressure environment during the distillation process. A reduced pressure environment helps to lower the boiling point of the sample, improve distillation efficiency, and reduce the loss of thermosensitive components.
(6) Temperature control system:
Used to accurately control the temperature of the heating system, ensuring that the distillation process is carried out within the predetermined temperature range.
(7) Other auxiliary components
Such as air ducts, sealing gaskets, clamping devices, etc., are used to connect and fix various components to ensure the smooth progress of the distillation process.
Product Parameter
Short Path Distillation Kit 2L-20L
Common types of short-range distillation kits
The 1l short path distillation kit has demonstrated strong application potential and value in the field of laboratory fine separation and purification due to its high efficiency, low residue, precise controllability, and convenient operation. It is not only a powerful assistant in the hands of scientific researchers, but also an important tool for promoting scientific research and technological innovation. The short-range distillation kit is a precision equipment commonly used in laboratories, designed specifically for small amounts of samples that require precise separation and purification. These kits are based on short-range distillation technology, which efficiently separates the boiling points of various components in liquid mixtures under reduced pressure conditions.
Basic short-range distillation kit
1) Features: Basic short-range distillation kits typically include basic components such as heating systems (such as electric heating jackets or heating plates), distillation bottles (such as 1L capacity), condenser tubes, receiving bottles, and vacuum systems (including vacuum pumps and connecting pipelines). These kits are designed to be simple and easy to operate, suitable for routine distillation needs in daily laboratories.
2) Application: Widely used for sample purification and separation in the fields of chemistry, medicine, food, etc., such as essential oil extraction, vitamin refining, pharmaceutical intermediate purification, etc.
Multi functional short-range distillation kit
1) Features: The multifunctional short-range distillation kit adds more functions to the basic model, such as temperature control system, pressure display gauge, automatic sampler, multi-channel receiving device, etc. These additional features make the distillation process more precise and controllable, and enable simultaneous processing of multiple samples or collection of different fractions.
2) Application: Suitable for complex experimental scenarios that require high-precision control and multi sample processing, such as fine separation in drug synthesis, preparation of high-purity chemicals, etc.
Customized short-range distillation kit
1) Features: Customized short-range distillation kits are designed and manufactured according to the specific needs of users. Users can choose the appropriate distillation flask capacity, heating method, condenser tube type, vacuum pump model, etc. according to the specific requirements of the experiment, and can add special accessories to meet special needs.
2) Application: Widely used in customized experiments and process optimization in scientific research institutions, university laboratories, and industrial production.
Care and maintenance
|
|
|
|
|
In the 1l short path distillation kit, in addition to the core distillation flask, heating system, condenser tube, receiving flask, and vacuum system, a series of other auxiliary components are also equipped. Although these components do not directly participate in the chemical reactions or physical changes during the distillation process, they play an indispensable role in ensuring the smooth progress of distillation experiments, improving experimental efficiency and safety. The following is a detailed introduction to these auxiliary components.
Definition and Function

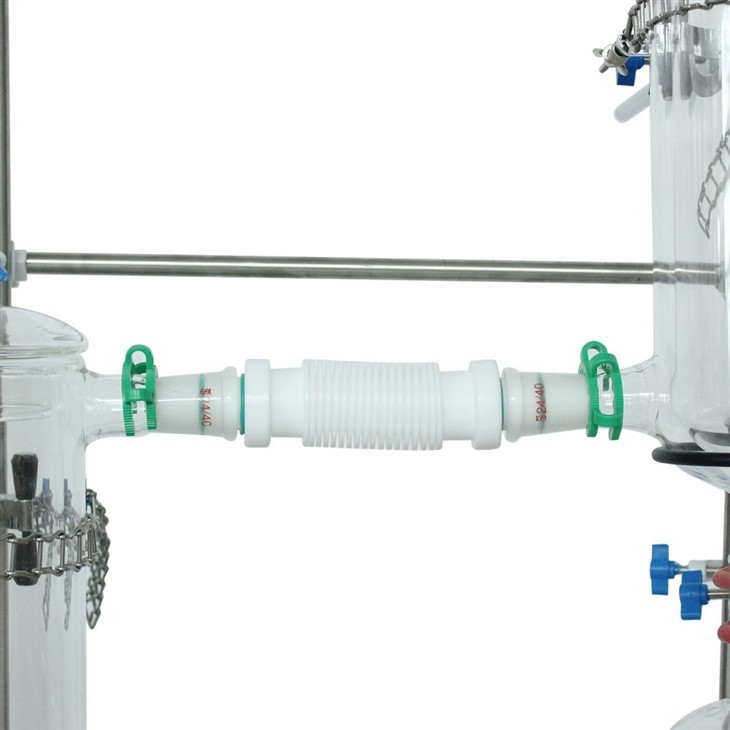

The air duct is a key component that connects the distillation flask and the condenser tube. Its main function is to safely and efficiently guide the vapor generated in the distillation flask to the condenser tube for cooling and condensation. Tracheal tubes are usually made of materials that are resistant to high temperatures and corrosion, such as glass or stainless steel, to ensure that they will not be damaged during distillation due to high temperatures or chemical corrosion.
Material selection
(1) Glass
It has good transparency and chemical stability, making it easy to observe the flow of vapor and not easily reacting with most chemical substances. However, glass air ducts may experience thermal stress issues at high temperatures and require careful handling to prevent rupture.
(2) Stainless steel
It has high strength and corrosion resistance, and is suitable for high temperature, high pressure, or highly corrosive distillation environments. Stainless steel tubing is commonly used in industrial grade or customized short-range distillation kits.
Design features
(1) Diameter and length
The diameter and length of the airway tube need to be selected according to the specific requirements of the distillation experiment. If the diameter is too large, it will cause the vapor to diffuse too quickly, affecting the condensation effect; If the diameter is too small, it may increase the flow resistance of steam and even cause blockage. The length needs to consider the heat loss and condensation efficiency during the steam rising process.
(2) Elbows and connectors
In order to adapt to different experimental device layouts, air ducts are often equipped with elbows or connectors for flexible adjustment of their direction and connection methods. These components need to have good sealing to prevent steam leakage.
Definition and Function
A sealing gasket is a small sealing ring located at the connection of various components in the distillation kit. Its main function is to prevent the leakage of vapor, liquid, or gas during the distillation process, ensuring the airtightness of the experimental system. Sealing gaskets are usually made of materials with good elasticity, high temperature resistance, and corrosion resistance, such as silicone, fluororubber, or polytetrafluoroethylene.
Material selection
(1) less Time
Silicone: It has good high temperature resistance and aging resistance, and is suitable for distillation experiments under general laboratory conditions. Silicone sealing gaskets are soft and easy to install, but it is important to avoid direct contact with strong acids, alkalis, and other chemicals.
(2) Fluororubber
Has higher corrosion and oil resistance, suitable for distillation experiments involving corrosive liquids or organic solvents. Fluororubber sealing gaskets can maintain stable performance even at high temperatures.
(3) Polytetrafluoroethylene (PTFE)
It exhibits excellent corrosion resistance to almost all chemicals and is one of the commonly used sealing materials in chemical experiments. PTFE sealing gaskets are heat-resistant and not prone to aging, but they are relatively expensive.
Installation and adjustment
The installation of the clamping device should ensure that all components are stable and free from shaking, and maintain their relative positions unchanged during the experiment. When adjusting the clamping device, attention should be paid to moderate force to avoid damaging components or affecting sealing.
Definition and Function
(1) Temperature gauge
Used for real-time monitoring of temperature changes during the alembic process to ensure that experiments are conducted within the predetermined temperature range. Thermometers are usually installed near alembic flasks or heating systems for accurate readings.
(2) Pressure gauge
Used to display the pressure situation inside the distillation system, helping users understand whether the vacuum degree meets the predetermined requirements. Pressure gauges are usually connected to vacuum systems and installed in easily observable locations.
Usage and maintenance
When using thermometers and pressure gauges, it is important to observe changes in their readings and record experimental data in a timely manner; After the experiment, it is necessary to clean and store it properly in a timely manner to avoid damage or loss; Regularly check the accuracy and reliability of thermometers and pressure gauges to ensure the accuracy of experimental results.
Related products
 |
 |
 |
| Glass Molecular Distillation |
Why Choose ACHIEVE CHEM 1L Short Path Distillation Kit?
16+ years of chemical equipment manufacturing experience
Complete turnkey kits for immediate operation
High-quality borosilicate glass & durable stainless steel
CE & ISO certified for global market compliance
Customizable configurations for specific process needs
1-year warranty + 24/7 technical support
Professional packaging & worldwide shipping
FAQs
Q1: What is a 1L short path distillation kit used for?
A: It is used for small-scale purification, solvent recovery, and sample processing of heat-sensitive materials in labs and pharma R&D.
Q2: Is the 1L kit suitable for laboratory use?
A: Yes, its compact size and precise performance make it ideal for laboratory R&D and small-batch testing.
Q3: What materials is the kit made of?
A: Main body: high borosilicate glass 3.3; seals: PTFE; frame: stainless steel.
Q4: Do you provide turnkey solutions?
A: Yes, we supply complete kits including distillation unit, heating/cooling system, vacuum pump, and controller.
Q5: What certifications do you have?
A: Our 1L short path distillation kits are CE and ISO 9001 certified.
