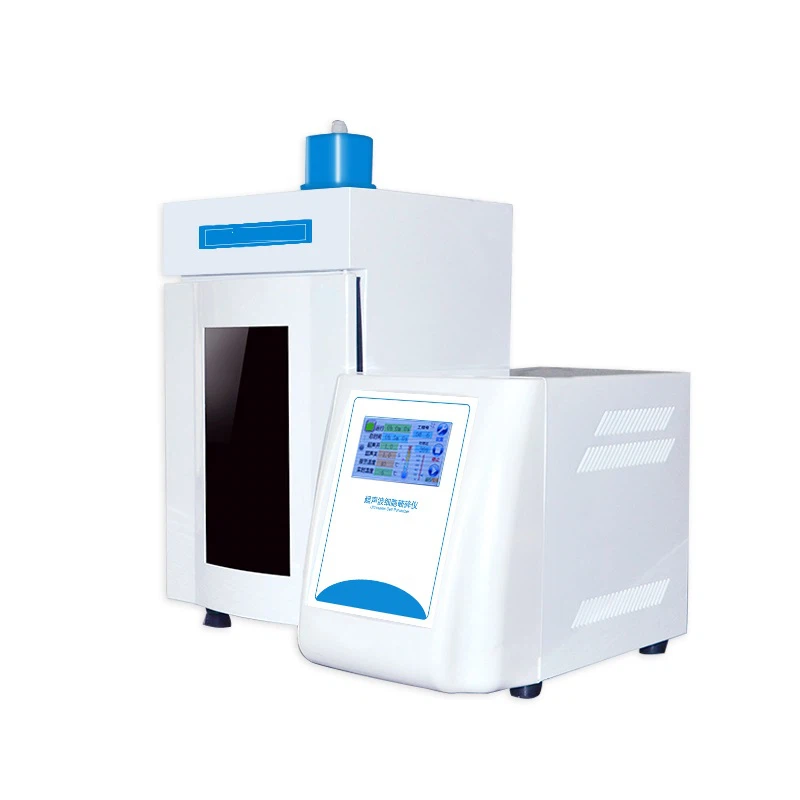

Ultrasonic Processor – High Precision Lab Sonicator & Cell Disruption System
Description:
Achieve Chem ultrasonic homogenizer (also called ultrasonic cell disruptor, ultrasonic processor or sonicator) uses high-intensity ultrasonic cavitation to process liquid samples. It generates powerful shock waves and microjets to break cells, disperse nanoparticles, emulsify liquids, extract active ingredients, degas, and accelerate chemical reactions. Our ultrasonic homogenizer series offers wide power options from 150W to 3000W, intelligent TFT touch control, and reliable safety protection, making it ideal for laboratory research, pilot testing, and small-scale production in biology, chemistry, pharmaceuticals, food, materials, and cosmetics.
Equipment Feature
● Full-featured, elegant appearance, and reliable performance. Controlled by MCU + 4.3-inch TFT capacitive touch screen (7-inch screen optional), with optional computer communication or data printing functions.
● High intelligence with centralized microcomputer control. Ultrasonic working time and power can be adjusted freely from 1% to 100%.
● Real-time sample temperature display, automatic frequency tracking by microcomputer, and automatic fault alarm.
● Equipped with high-quality 7075 aluminum alloy transducer and high-purity titanium alloy horn. Industrial-grade titanium alloy horns support continuous ultrasonic operation for more than 1 hour.
● Built-in overload protection and auto-protection function to prevent the horn from damage when not immersed in liquid.
● Voice alarm for faults, over-temperature, or improper operation, providing more user-friendly and safer operation.
Technical Specification
|
Model |
150W |
250W |
650W |
1000W |
1200W |
1800W |
3000W |
|
Power continuously adjustable |
1.5-150W |
2.5-250W |
6.5-650W |
10-1000W |
12-1200W |
18-1800W |
1000-3000W |
|
Capacity |
0.1-150ML |
0.1-300ML |
0.1-500ML |
0.1-750ML |
1-1000ML |
1-1200ML |
500-5000ML |
|
Display way |
True color 4.3-inch capacitive touchscreen display |
||||||
|
Ultrasonic Session Time |
0.1-99.9S |
||||||
|
Interval Time |
0.1-99.9S |
||||||
|
Total Time (Ultrasonic + Interval) |
1-99H59M59S |
||||||
|
Frequency (KHz) |
20-25KHz |
||||||
|
Temperature range |
0-100 degrees Celsius (Chiller is optional) |
||||||
|
Alarm function |
Time, overload, no-load, over-temperature |
||||||
| Ultrasonic Amplifier |
Φ6(mm) |
Φ6(mm) |
Φ6(mm) |
Φ6(mm) |
Φ20(mm) |
Φ22(mm) |
Φ40(mm) |
|
Optional amplitude transformer |
Φ2,3,8(mm) |
Φ2,3,8,10(mm) |
Φ2,3,10,12(mm) |
Φ2,3,8,10,12,15(mm) |
Φ3,6,10,15,22,25(mm) |
Φ3,6,10,15,20,25,28(mm) |
Φ20,35,38,40,50(mm) |
|
Data storage |
20 sets |
20 sets |
20 sets |
20 sets |
20 sets |
20 sets |
20 sets |
|
Power supply (optional 110V) |
220V/110V/ 50Hz/60HZ |
220V/110V/ 50Hz/60HZ |
220V/110V/ 50Hz/60HZ |
220V/110V/ 50Hz/60HZ |
220V/110V/ 50Hz/60HZ |
220V/110V/ 50Hz/60HZ |
220V/110V/ 50Hz/60HZ |
|
dimensions (D * W * H) |
410*225*290(mm) |
410*225*290(mm) |
410*225*290(mm) |
410*225*290(mm) |
410*225*290(mm) |
410*225*290(mm) |
510*225*290(mm) |
|
Net weight |
12kg |
12kg |
12kg |
12kg |
15kg |
16kg |
17kg |
|
Gross weight |
16kg |
16kg |
16kg |
16kg |
19kg |
19kg |
21kg |
|
Optional function |
Computer communication + data printing + soundproof enclosure lighting or sterilization |
||||||
|
Control methods |
Microcontroller + TFT touch screen |
||||||
|
Voice alarm and prompt function |
Yes/No |
||||||
|
Continuous ultrasound function |
Computer communication + data printing + soundproof enclosure lighting or sterilization |
||||||
Horn optional
Interested in a Spray Dryer for your Lab? [Send an Inquiry now]
APPLICATION field
Food Industry: Monoglycerides, palm oil, tocopherol, fish oil, rice bran oil, fatty acids and their derivatives, dienoic acid, vegetable oil, diglycerides, oryzanol, cream, lactic acid, linseed oil, dimer acid, etc.
Pharmaceutical Industry: Acyl chloride, amino acid esters, vitamin E, glucose derivatives, terpene esters, natural or synthetic vitamins, beta-carotene, gingerol, capsicum pigment, etc.
Chemical Industry: Higher alcohols, glycerides, herbicides, halogenated alkanes, pesticides, silicone oil, wax, fatty acids, etc.
Plastic Industry: Epoxy resin, epoxidized oil, isocyanate, plasticizers, stabilizers, polyether and polyether polyol, etc.
Petroleum Industry: Base oil, bright stock, lubricating oil, petrolatum, fir oil, residual tar, etc.
Cosmetic Industry: Wool fatty acids, lanolin alcohol, extracts from algae, plant roots, flowers and capsicum plants, high-grade fatty esters, turmeric essential oil, ginger essential oil, etc.
Why Choose Our Ultrasonic Homogenizer?
- Stable and adjustable ultrasonic output for consistent experimental results
- High‑purity titanium alloy probes with strong corrosion resistance and high sound transmission
- Intelligent program control reduces manual operation and improves efficiency
- Comprehensive safety protection extends service life and ensures safe operation
- Wide range of models and probes to meet micro to large‑volume processing
- CE Certificate electrical design with global power compatibility
- One year warranty and professional technical support
FAQ
Q: What is an ultrasonic homogenizer used for?
A: It is used for cell disruption, homogenization, emulsification, extraction, dispersion, degassing, sonochemical reaction, and nanoparticle preparation.
Q: Can I use this for micro-volume samples?
A: Yes, with optional micro probes down to Φ2mm, suitable for samples as small as 0.1mL.
Q: Is temperature control available?
A: Yes, real-time temperature monitoring is standard; low-temperature cooling systems are optional.
Q: Are the probes replaceable?
A: Yes, we provide a full range of titanium alloy probes for different volumes and applications.
Interested in a ultrasonic homogenizer for your Lab? [Ask an Engineer now]
