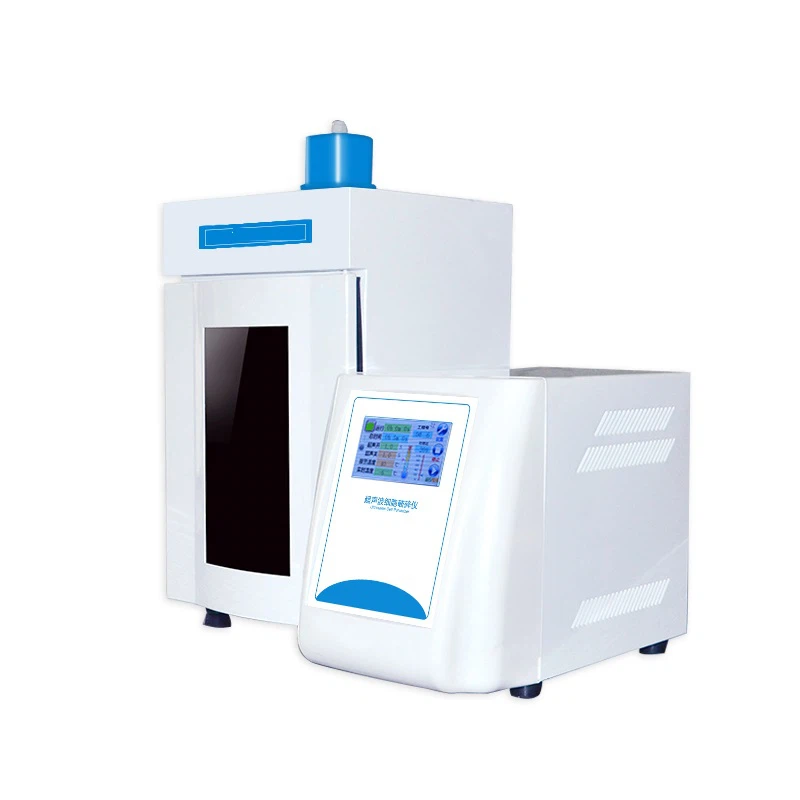

Ultrasonic Homogenizer Series | 150W–3000W Lab Sonicator System
Description
Technical Parameters
Ultrasonic Homogenizer | Lab Sonicator & Cell Disruption System Line
Our ultrasonic homogenizer series offers a full range of high-performance lab sonicators from 150W up to 3000W, designed for cell disruption, homogenization, emulsification, extraction, dispersion, degassing, and ultrasonic chemical reactions. Built with intelligent TFT touch control, automatic frequency tracking, pure titanium alloy probes, and comprehensive safety protection, these units deliver stable performance for research and small-scale production in biology, pharmaceuticals, food, chemicals, materials, and cosmetics.
Key Features of the Ultrasonic Homogenizer Series
- 4.3-inch HD TFT capacitive touch screen for intuitive operation
- Wide power adjustment: 1%–100% for precise process control
- Programmable ultrasonic, interval, and total processing time
- Automatic frequency tracking for consistent performance
- High-purity titanium alloy probes for corrosion resistance and durability
- Overload, over-temperature, and dry-run protection
- Voice alarm for safe and reliable operation
- 20 groups of parameter storage for repeatable experiments
- Optional accessories: soundproof box, cooling system, PC communication, data printing
Model Comparison – Ultrasonic Homogenizer Series
|
Model |
Power Range |
Processing Volume |
Standard Probe |
|
150W Ultrasonic Homogenizer |
1.5–150W |
0.1–150mL |
Φ6mm |
|
250W Ultrasonic Homogenizer |
2.5–250W |
0.1–300mL |
Φ6mm |
|
650W Ultrasonic Homogenizer |
6.5–650W |
0.1–500mL |
Φ6mm |
|
1000W Ultrasonic Homogenizer |
10–1000W |
0.1–750mL |
Φ6mm |
|
1200W Ultrasonic Homogenizer |
12–1200W |
1–1000mL |
Φ20mm |
|
1800W Ultrasonic Homogenizer |
18–1800W |
1–1200mL |
Φ22mm |
|
3000W Ultrasonic Homogenizer |
1000–3000W |
500–5000mL |
Φ40mm Lengthened |
Common Specifications (Full Series)
- Frequency: 20–25KHz
- Display: 4.3-inch TFT capacitive touch screen
- Temperature Control: 0–100°C (cooling optional)
- Alarm System: Time, overload, dry run, over-temperature
- Data Storage: 20 groups
- Power Supply: 110V/220V, 50/60Hz
- Control: MCU + TFT touch control
- Voice Alarm: Standard

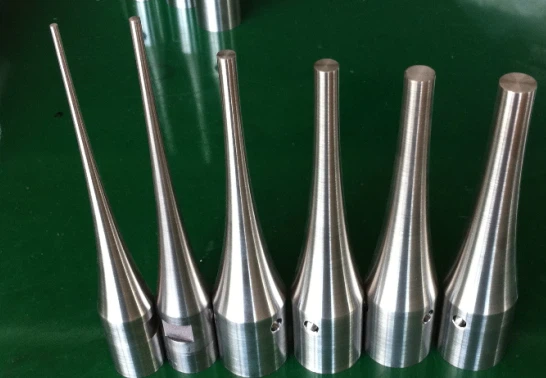

Optional Probes for All Models
Micro Probes: Φ2mm, Φ3mm for micro-volume samples
Standard Probes: Φ6mm, Φ8mm, Φ10mm, Φ12mm, Φ15mm
Large Probes: Φ20mm, Φ22mm, Φ25mm, Φ28mm, Φ35mm, Φ40mm, Φ50mm
Applications
Our full ultrasonic homogenizer series supports nearly all lab and small-scale industrial applications:
Biology & Medicine: Cell disruption, lysis, protein & nucleic acid extraction
Pharmaceuticals: Vaccine processing, herbal extraction, nanoparticle dispersion
Food & Cosmetics: Emulsification, homogenization, plant extract refining
Chemicals & Materials: Nanoparticle dispersion, polymer modification, sonochemical reactions
Environmental & Petrochemical: Sample pretreatment, extraction, degassing
Why Choose Our Ultrasonic Homogenizer Series
- Full power range from micro-volume to large-capacity processing
- Stable ultrasonic output for consistent and repeatable results
- High-strength titanium alloy probes with long service life
- Intelligent control reduces operation complexity
- Comprehensive safety protection extends equipment life
- Wide global power compatibility (110V/220V)
- One-year warranty and professional technical support
Frequently Asked Questions
Q: Which ultrasonic homogenizer model should I choose?
A: Choose based on sample volume: 150–1000W for 0.1–750mL; 1200–1800W for 1–1200mL; 3000W for 500–5000mL.
Q: Are probes interchangeable between models?
A: Most small probes are compatible across low-power models; large probes match high-power units.
Q: Do you offer temperature control?
A: Yes, real-time temperature monitoring is standard; low-temperature cooling systems are optional.
Q: Are the units CE certified and safe for labs?
A: Yes, all models use safe electrical design and meet international lab equipment standards.
Get a Quote
Contact us today with your sample volume, application, and power requirements. We will recommend the best ultrasonic homogenizer model or provide a full-series quotation for your laboratory or production line.
