Electric Heating Mantle

As an efficient, uniform, and safe heating device, the electric heating sleeve has a complex and precise structure, consisting of multiple key components. These parts each play different functional roles and work together to achieve heating function. The shell and lining provide physical protection and insulation; Heating elements convert electrical energy into thermal energy; The temperature control system achieves precise control over the heating temperature; The support and fixing device ensures the stability of the object to be heated; And other auxiliary components ensure the normal operation of the equipment.

► Shell
Material: The outer shell of the electric heating sleeve is the first line of defense to protect the internal components. It is usually made of materials that are resistant to high temperatures, corrosion, and have certain mechanical strength, such as stainless steel, polypropylene (PP), or polytetrafluoroethylene (PTFE). These materials can maintain stability in high temperature environments and prevent external factors from corroding internal components.
Function: The casing not only provides physical protection for the electric heating sleeve, but also serves as insulation and heat insulation. By reducing heat loss, the shell improves heating efficiency while ensuring the safety of operators and preventing burns or electric shock accidents.
Design features: The design of the casing often emphasizes durability and ease of use. For example, the use of materials that are easy to clean and maintain, as well as structural designs that are easy to disassemble and install, are all aimed at improving the service life of the equipment and the user's operating experience.

► Inner lining
Material: The inner lining is a component that directly contacts the heating element and the object to be heated inside the electric heating sleeve, and the selection of its material is crucial. Common lining materials include ceramic fibers, mica, special alloys, etc. These materials have excellent high temperature resistance, good thermal conductivity, and corrosion resistance, ensuring uniform and efficient heat transfer to the object to be heated.
Function: The main function of the lining is to evenly transfer the heat generated by the heating element to the object to be heated, avoiding local overheating or uneven heating. At the same time, the lining can withstand high temperatures and chemical erosion, protecting the heating element from damage.
Design features: The design of the lining is usually customized according to the shape and size of the object to be heated to ensure the best heating effect. In addition, the material and structure of the lining will also consider the convenience of cleaning and maintenance to extend the service life of the equipment.

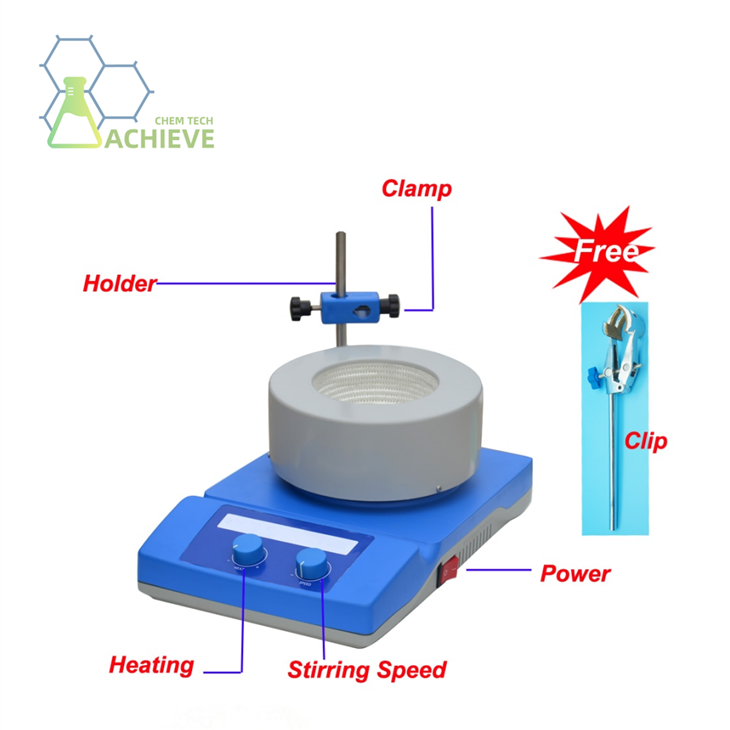

► Supporting and fixing devices
Type: The supporting and fixing device is an auxiliary component of the electric heating sleeve, used to support and fix the object to be heated and connect other accessories. Common support devices include brackets, fixtures, and support rods; The fixing device includes fastening screws, buckles, and fixtures.
Function: The main function of the supporting and fixing device is to ensure that the object to be heated remains stable during the heating process, preventing uneven heating or object damage caused by vibration or external forces. At the same time, these devices also facilitate users to install and remove the object to be heated onto the electric heating sleeve, improving the usability and flexibility of the equipment.
Design features: The design of support and fixing devices often emphasizes stability and durability. They are made of high-strength materials that can withstand certain weight and pressure. At the same time, these devices also consider the convenience of operation, such as the design of easily adjustable fastening screws and quick connect buckles.

► Other auxiliary components
In addition to the main components mentioned above, the electric heating sleeve may also include some other auxiliary parts, such as power cords, plugs, indicator lights, radiators, etc. These parts, although inconspicuous, play an important role in the normal operation of the electric heating sleeve. For example, the power cord and plug are responsible for providing electrical energy to the electric heating sleeve; Indicator lights are used to display the working status of the device; The radiator helps dissipate the heat generated inside the device, preventing overheating and damage.

The installation of an electric heating sleeve requires careful and professional skills. Proper installation not only ensures the normal operation of the heating sleeve, but also extends its service life. The following is a detailed installation instruction for electric heating sleeves, covering key aspects such as preparation before installation, installation steps, and inspection after installation.

► Preparation before installation
1) Confirm the model and specifications of the electric heating sleeve
Before installation, it is necessary to confirm whether the selected electric heating sleeve model and specifications match the equipment to be heated. Different models and specifications of electric heating sleeves may have differences in power, size, heating method, etc., so it is necessary to ensure that the selected electric heating sleeve can meet the heating needs.
2) Check the appearance and accessories of the electric heating sleeve
Carefully inspect the appearance of the electric heating sleeve for any damage, deformation, or cracks. At the same time, check if the accessories are complete, including power cords, plugs, temperature controllers, etc.
3) Prepare installation tools and materials
According to the installation requirements of the electric heating sleeve, prepare corresponding installation tools such as screwdrivers, wrenches, insulation tape, etc. At the same time, prepare necessary installation materials such as gaskets, fastening screws, etc.
4) Check the equipment to be heated
Before installing the electric heating sleeve, it is necessary to conduct a comprehensive inspection of the heating equipment to ensure that its surface is flat, free of dirt, corrosion or damage. If necessary, cleaning and rust removal can be carried out first.

► Installation steps
1) Disconnect the power supply
During the installation process, it is necessary to ensure that the power supply of the equipment to be heated has been disconnected and a "Do not close" warning sign is hung to prevent electric shock accidents from occurring.
2) Install the heating sleeve
Place the electric heating sleeve in the appropriate position of the equipment to be heated according to the instructions. For detachable electric heating sleeves, it is necessary to first loosen the clamping bolts or fasteners, place the heating sleeve on the equipment, and adjust it to the appropriate position. For integrated electric heating sleeves, specific installation tools may be required to secure them to the equipment.
During installation, ensure that the heating sleeve is tightly attached to the surface of the equipment, avoiding any gaps or wrinkles. Meanwhile, it should be noted that the heating surface of the heating sleeve should correspond to the heated surface of the equipment to ensure even heat transfer.
3) Connect the power supply and temperature controller
Connect the power cord of the electric heating sleeve to the power supply according to the instructions. During the connection process, it is important to ensure that the insulation layer of the power cord is intact and sealed with insulating tape.
If the electric heating sleeve is equipped with a temperature controller, it is necessary to connect the temperature controller to the heating sleeve according to the requirements in the manual. At the same time, set the temperature parameters of the thermostat according to actual needs and ensure that it can work properly.
4) Fixation and Inspection
Use fastening screws or fasteners to secure the electric heating sleeve to the equipment and ensure its firmness and reliability. During the fixing process, be careful not to tighten or loosen too tightly, so as not to affect the heating effect or cause equipment damage.
After installation, check the installation of the electric heating sleeve again to ensure that there are no omissions or errors. At the same time, check whether the power cord, plug, thermostat and other components are firmly connected, without looseness or damage.
