Single press tablet machine is a device used to press granular raw materials into tablets.It is widely used in industries such as pharmaceuticals,chemicals,and food,and is one of the important equipment for producing tablets.The single tablet press ensures extremely high work efficiency and accuracy during the tablet pressing process.Its precise control system can ensure that the weight,thickness,hardness and other parameters of each tablet are highly consistent,greatly improving the quality and stability of the product.Meanwhile,the fast and precise pressing process also reduces production time and improves production efficiency.Single tablet press has strong adaptability and can handle materials with different properties and particle sizes,such as powders,particles,or balls.Whether it's Western medicine tablets,Chinese medicine tablets,or other types of tablets,the single tablet press can easily handle them.In addition,by adjusting the mold and pressing parameters,the single tablet press can also produce tablets of different shapes and sizes to meet the needs of different customers.
Product Introduction

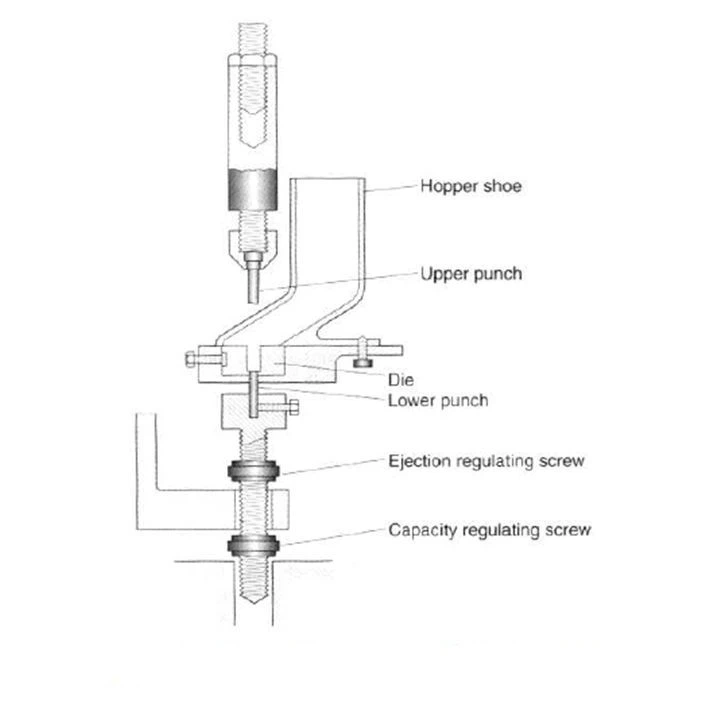

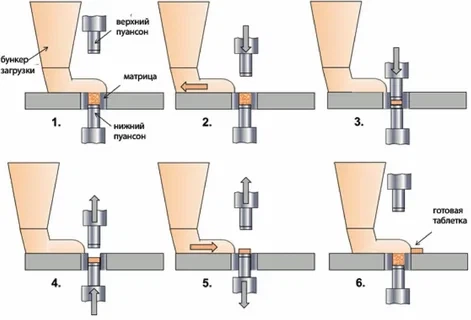

Design principle:The design principle of a Single press tablet machine is to compress granular raw materials into tablets by utilizing the effects of pressure and friction.During the working process,the raw materials enter the tablet chamber through the feed inlet and are then squeezed by the compression wheel to form tablets.
Single press tablet machine-Make compressed cookies
 |
 |
 |
Raw material preparation
The main ingredients of compressed biscuits include wheat flour,sugar,grease,food additives(such as leavening agents,emulsifiers,etc.),and water or other liquid ingredients.
These ingredients need to be precisely weighed according to a specific formula ratio and blended evenly.
Raw material molding
Feed the mixed material into the feed system of the single sheet press.
The compression roller of the single sheet press evenly squeezes the raw material into the desired shape,such as round,square,etc.,by setting the pressure and speed.
In this process,the thickness and hardness of the biscuit can be controlled by adjusting the pressure and speed of the compression roller.
Cutting and forming
Once the ingredients are compressed into shape,the single sheet is cut precisely through the cutter to form the size and shape of the individual cookie.
The cut biscuits can go straight into the oven or other subsequent processing equipment.
Baking and cooling
The cut cookies need to be sent to the oven for baking to remove the moisture and cure them.
After baking,the cookies need to be cooled on a cooling device for subsequent packaging and storage.
Single press tablet machine-Catalyst making
Select the right catalyst material powder to ensure that it is dry,clean and uniform.
According to the formula of catalyst,all kinds of raw material powder are mixed evenly according to a certain proportion.
Feed the mixed catalyst raw material powder into the feed port of the single sheet press.
The shape,size and hardness of catalyst tablets can be controlled by adjusting the pressure,speed and time of the tablet press.
The single sheet press uses high pressure to press the raw material powder into a solid shape catalyst tablet.
After the pressing is complete,remove the catalyst tablet from the tablet press.
Drying,sintering or other subsequent treatment as needed to improve catalyst performance and stability.
Single press tablet machine-Make mothballs
 |
 |
 |
 |
Raw material preparation
Camphor:The main component of camphor balls,which can be obtained by extracting camphor wood.
Auxiliary raw materials:paraffin wax is used to improve the hardness and stability of the mothballs,and pigments are used to give the mothballs a specific color.
Raw material mixing and heating
Mixing:the raw materials such as camphor,paraffin and pigment are mixed evenly according to a certain proportion.
Heating:Heat the mixed raw materials to 70~80 degrees Celsius,so that it is completely dissolved and mixed evenly.
Pressing molding
Mold preparation:Select the appropriate mold according to the shape and size requirements of mothballs.
Fill the mold:Pour the dissolved camphor mixture into the mold to ensure even filling.
Pressing:Use a single tablet press to press the camphor mixture in the mold.A single tablet press mixes camphor with hydraulic pressure at high pressure to make a solid shaped mothball.
Cooling:After pressing is completed,remove the mothballs from the mold and place them in a ventilated place to cool and solidify.
Follow-up treatment
Cutting and shaping:Cooled mothballs may need to be cut and shaped to ensure that their shape and size meet standards.
Packaging and storage:The cut and shaped mothballs are packaged,usually using aluminum foil bags or plastic bottles and other packaging materials with good sealing to prevent deterioration and volatilization of mothballs.
Common faults and solutions
Failure to turn on or abnormal shutdown after turning on
The reason
Protection devices are not working properly,such as lubrication protection,pressure overload protection,door and window security protection,etc.
Main motor or feed motor overload.
The electrical circuit is faulty.
The solution
Check that the protective devices are in good condition and ensure that they are in normal working condition.
Check the motor for overload and adjust the load or replace the motor if necessary.
If the electrical fault cannot be removed,contact professional electrical personnel for inspection and maintenance.
The device vibrates or makes abnormal sounds
The reason
The tightness of the synchronization belt is inappropriate.
The motor is in phase resonance with the mechanical transmission part.
Long-term use leads to large gap in the transmission part and loose parts.
More granular powder and sticky,resulting in plugging.
Shaft,bearing lack of oil or wear.
The solution
Adjust the tightness of the synchronization belt to be moderate.
Avoid the use of vibration section speed,or adjust the installation position of the motor and transmission part.
Adjust the gap of the transmission part and tighten the parts.
Adjust the viscosity and size of the particles to avoid plugging.
Check shaft and bearing lubrication regularly and replace worn parts in time.
The weight is unstable or out of whack
The reason
The downstroke varies in length.
Particle hardness,uneven size,foreign matter,poor fluidity,high humidity.
The pack rail is badly worn.
The forced feed speed does not match the turntable speed.
Severe plug flushing or inconsistent damping tightness.
The solution
Repair or replace downdrafts of varying lengths.
Re-pelleting to ensure that the hardness,size and humidity of the particles meet the requirements.
Replace badly worn fill rails.
Adjust the matching relationship between the speed of forced feeding and the speed of the turntable.
Clean the mold,punch the hole,adjust the damping tightness consistent.
Tablet segments or layers
The reason
More granular powder,less adhesive force.
Too much pressure.
The solution
Reduce powder,increase adhesive,improve the adhesion of particles.
Reduce the pressure to avoid excessive pressure on the tablet during tablet pressing.
Stick or debris
The reason
Large particle viscosity and less release agent.
The particle humidity is high or the ambient humidity is high and the temperature is high.
The turntable is loose or the punching is seriously worn.
Sheet surface damage,low finish.
The solution
Add release agent or apply a coat of release agent to the mold before production.
Adjust particle humidity to reduce indoor humidity and temperature.
Tighten the turntable and repair or replace worn punches.
Change the mold or trim the shape of the tablet to improve the finish of the tablet.
Other faults-In case of jacking failure
Cause:"top dead"after punching into the middle die,the machine stops running.It may be that the pressure is too large,the tablet is too strong,repeated feeding,the eccentric shell and the main shaft hole lack of oil or serious wear,the belt is too loose,the starting position is improper or the hand is not enough.
Solution:Adjust the pressure to adjust gradually can not adjust too much at a time,to avoid hard pills;Avoid repeated feeding;Keep lubrication regularly,if it has been seriously worn or"bitten",disassemble and repair immediately;Adjust the belt tightness;The hand press must be more forceful when starting or when the upper punch passes through the lowest point.
Cleaning and maintenance
The cleaning and maintenance of a single tablet press is an important link to ensure the normal operation of the equipment, extend its service life and guarantee the quality of tablet pressing. The following is a detailed introduction to the cleaning and maintenance of single tablet presses:
Daily Cleaning
Stop the machine and cut off the power
Before carrying out any cleaning operation, be sure to turn off the power and ensure that the equipment is in a power-off state to guarantee the safety of the operators.
Remove the residual materials
Hopper and feeder: Use a soft brush or vacuum cleaner to remove the residual powder in the hopper and feeder to prevent the material from caking or deteriorating.
Middle die hole and punch: Use special tools (such as scrapers, soft brushes) to clean the residual powder on the surface of the middle die hole and the upper and lower punches to prevent cross-contamination.
Tablet discharge area: Inspect the tablet discharge port and the tablet collection device, and clear any blocked tablets or fragments.
Wipe the fuselage
Wipe the surface of the machine body with a clean, slightly damp soft cloth to remove dust and stains.
Avoid using corrosive or abrasive cleaners to prevent damage to the surface coating of the equipment.
Regular deep cleaning
Disassemble the detachable components
According to the equipment manual, disassemble the washable components (such as the hopper, middle die, punch, etc.) regularly.
When disassembling, pay attention to marking the positions of the components to avoid installation errors.
Cleaning and disinfection
Cleaning: Soak the disassembled components in warm water, and clean them with a neutral cleaner and a soft brush to remove stubborn stains.
Disinfection: For equipment used in the pharmaceutical or food industry, disinfection treatment is required after cleaning (such as wiping with 75% alcohol or using disinfectants that meet the standards).
Rinsing and drying: Thoroughly rinse the components with clean water to ensure no cleaner remains, then dry them with a clean cloth or let them air dry naturally.
Clean the lubrication parts
Remove the old oil and dirt from the lubrication parts (such as bearings, guide rails, gears, etc.).
Apply an appropriate amount of new lubricating oil or grease to ensure smooth operation of the equipment.
Maintenance of Key Components
Punch and middle die
Regularly inspect the wear of the punch and the middle die. If there is any wear or damage, replace them in time.
When installing, ensure that the punch is aligned with the middle die hole to avoid offset, which may lead to a decline in tablet pressing quality.
Transmission system
Check the tension of the belts and chains, and adjust or replace them if necessary.
Clean the transmission components (such as gears, worm wheels and worm gears) and apply grease.
Electrical system
Regularly check whether the electrical connections are loose and whether the wires are damaged.
Clean the dust inside the electrical control box to prevent short circuits or poor contact.
Precautions
When cleaning, do not use metal scrapers or sharp tools to avoid scratching the surface of molds or equipment.
During the cleaning process, avoid water or cleaning agents splashing into the electrical control box, motor and other parts to prevent short circuits or damage.
Establish equipment maintenance records, documenting the time, content, and replaced parts of cleaning and maintenance, etc., to facilitate the tracking of equipment status.
Clean and maintain strictly in accordance with the equipment manual. If you have any questions, contact the equipment supplier or professional technicians in a timely manner.
Maintenance Cycle Recommendations
Daily cleaning: carried out after each use.
Weekly maintenance: Clean the lubrication parts and inspect the transmission system.
Monthly maintenance: Disassemble washable parts for deep cleaning and check the wear of key components.
Annual maintenance: Conduct a comprehensive inspection of the equipment, replace vulnerable parts, and carry out professional maintenance.
