What Are The Different Types Of Lab Condensers?

Liebig Condenser: The Liebig condenser is one of the most common types of condensers. It consists of a straight glass tube with an inner coolant tube through which coolant flows. The vapor passes through the outer jacket of the condenser, where it is cooled and condensed. Liebig condensers are suitable for general-purpose distillation and are known for their simplicity and reliability.

Graham Condenser: The Graham condenser, also known as a coil condenser, features a coiled glass tube that provides a larger surface area for condensation compared to Liebig condensers. This increased surface area allows for more efficient cooling and condensation of vapors, making Graham condensers ideal for applications requiring faster distillation rates or higher efficiency.

Allihn Condenser: The Allihn condenser comprises of a arrangement of bulbous or circular areas along the length of the glass tube. These bulbous segments increment the surface range accessible for condensation, improving the productivity of the condensation handle. Allihn condensers are especially valuable for reflux refining or when managing with more unstable or temperature-sensitive compounds.

Coil Condenser: Coil condensers, too known as jacketed coil condensers, include a coiled glass tube encompassed by a coat through which coolant streams. This plan gives improved cooling effectiveness and uniform cooling along the whole length of the coil, making coil condensers reasonable for a wide extend of refining applications.

Friedrichs Condenser: The Friedrichs condenser is comparative to the Liebig condenser but highlights an expanded inward tube that amplifies past the coat. This amplified inward tube gives extra cooling surface zone and permits for more effective condensation, making Friedrichs condensers appropriate for higher volume refining forms.

Dimroth Condenser: The Dimroth condenser features a coiled or spiral-shaped inner tube that is surrounded by a jacket through which coolant flows. This design provides a large surface area for condensation and efficient heat transfer, making Dimroth condensers ideal for high-temperature distillation processes or applications requiring rapid condensation rates.

Jacketed Condenser: Jacketed condensers feature a straight or coiled glass tube surrounded by a jacket through which coolant flows. This design provides enhanced cooling efficiency and temperature control, making jacketed condensers suitable for precise distillation applications or processes requiring tight control over cooling conditions.

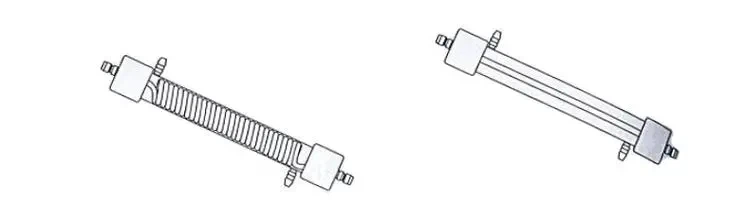

How does a Liebig condenser differ from a Graham condenser?

In the realm of laboratory equipment, condensers play a crucial role in various chemical processes, particularly in distillation setups where they aid in the conversion of vapor back into liquid form. Among the array of condensers available, two common types are the Liebig condenser and the Graham condenser. The Liebig condenser, named after the German chemist Justus von Liebig, features a straight inner tube surrounded by a larger outer jacket. This design allows for efficient cooling of vapors. In contrast, the Graham condenser, invented by Scottish chemist Thomas Graham, comprises a coiled inner tube within an outer jacket. The coiled configuration enhances surface area contact between the cooling water and the vapor, resulting in more effective condensation. Thus, while both condensers serve the same purpose, their structural variances lead to differences in cooling efficiency and practical applications.

What are the unique features of a Jacketed condenser?

Jacketed condensers represent another class of condensers notable for their distinct design features. Unlike the Liebig and Graham condensers, jacketed condensers incorporate an additional layer around the cooling surface. This outer layer, typically made of glass, allows for the circulation of a cooling fluid, such as water or coolant, to further enhance heat transfer efficiency. The jacketed design provides better control over temperature gradients, making it particularly suitable for applications requiring precise temperature regulation. Moreover, this configuration minimizes heat loss to the surroundings, resulting in improved overall energy efficiency. Jacketed condensers find extensive use in advanced laboratory settings where precise control and optimal performance are paramount.

Can you compare the efficiency of Coil condensers versus Allihn condensers?

Coil condensers and Allihn condensers represent two distinct yet equally important variants in the realm of laboratory condensation equipment. Coil condensers, as the name suggests, consist of a coiled tube configuration, facilitating efficient cooling due to increased surface area contact with the cooling medium. This design is particularly effective for condensing larger volumes of vapor quickly. On the other hand, Allihn condensers feature a series of bulges or 'bubbles' along the length of the condenser tube, providing additional surface area for condensation. This design is advantageous for applications requiring higher levels of purification or separation, as it allows for greater contact between the vapor and the cooling surface. While both coil and Allihn condensers serve similar purposes, their efficiency varies depending on the specific requirements of the experiment or process at hand.

In conclusion, the diverse range of lab condensers available offers scientists and researchers a multitude of options to suit various experimental needs. Whether it's the straightforward design of a Liebig condenser, the enhanced efficiency of a jacketed condenser, or the specialized applications of coil and Allihn condensers, each type brings its own unique advantages to the laboratory setting. By understanding the differences and capabilities of these condenser types, scientists can make informed decisions to optimize their experimental setups and achieve reliable results.

References:

Liebig condenser: https://en.wikipedia.org/wiki/Liebig_condenser

Graham condenser: https://en.wikipedia.org/wiki/Graham_condenser

Jacketed condenser: https://en.wikipedia.org/wiki/Jacketed_condenser

Coil condenser: https://en.wikipedia.org/wiki/Condenser_(laboratory)

Allihn condenser: https://en.wikipedia.org/wiki/Allihn_condenser
