What Are The Common Faults And Solutions Of Rotary Evaporators?

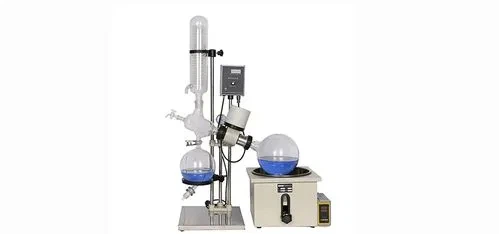

Rotating evaporator is a commonly used equipment in the laboratory, mainly used for efficiently and quickly concentrating solutions or recovering organic solvents. It rotates the evaporator bottle to form a thin film of the solution inside the evaporator, thereby increasing the evaporation area and improving the evaporation efficiency. Improving the evaporation efficiency of a rotary evaporator requires comprehensive consideration of multiple factors. By selecting appropriate solvents, adjusting rotation speed and heating temperature, optimizing rotor design, controlling air flow rate, regularly cleaning and maintaining equipment, and adopting other auxiliary measures, the evaporation efficiency of the rotary evaporator can be significantly improved, thereby better meeting experimental requirements and obtaining accurate experimental results.

(Product link: https://www.achievechem.com/rotary-evaporator)

Rotating evaporator is a commonly used laboratory equipment for drug concentration, separation, and purification. However, during use, the rotary evaporator may encounter some common faults, such as pipeline leakage, motor failure, and uneven heating.
1. Pipeline leakage
During the use of the rotary evaporator, there may be pipeline leakage. There are various situations that can cause night leaks, and the handling methods required for each situation are also different, which will be described in detail in the following article.
1.1 Reasons for Pipeline Leakage
(1) Unfastened pipeline connection: There may be loose connections at the pipeline connection of the rotary evaporator, leading to liquid leakage. Especially after prolonged use, fasteners may become loose, causing liquid leakage.
(2) Pipeline aging or damage: The pipeline of the rotary evaporator may age or be damaged due to long-term use, leading to liquid leakage. In addition, if the equipment is left unused for a long time, it may cause pipeline aging or damage due to environmental factors.
(3) Condenser problem: There may be blockage or dirt in the condenser part of the rotary evaporator, which affects the refrigeration effect and prevents the liquid in the pipeline from condensing and flowing back normally, resulting in liquid leakage.
(4) Other reasons: In addition to the common reasons mentioned above, there may also be other reasons that cause liquid leakage in the rotating evaporator pipeline, such as improper use of equipment, untimely maintenance, etc.
1.2 Solution
(1) Check and tighten the pipeline connections: First, check whether the rotary evaporator pipeline connections are tight. If any looseness is found, tighten them in a timely manner. Ensure that all connections are secure and reliable to avoid liquid leakage.
(2) Replace aged or damaged pipes: If the pipes of the rotary evaporator are found to be aged or damaged, they should be replaced with new pipes in a timely manner. When replacing pipelines, attention should be paid to selecting pipeline materials and specifications that match the equipment to ensure the normal operation and effectiveness of the equipment.
(3) Cleaning the condenser: If any blockage or dirt is found in the condenser section of the rotating evaporator, it should be cleaned in a timely manner. Specialized cleaning agents and tools can be used for cleaning to ensure the cooling and reflux effects of the condenser.
(4) Check the equipment usage and maintenance records: When solving the problem of liquid leakage in the rotating evaporator pipeline, it is recommended to check the equipment usage and maintenance records. Understanding the usage status, maintenance cycle, and precautions of the equipment can help identify and solve potential problems in a timely manner.
(5) Seeking professional technical support: If the above solutions cannot solve the problem of liquid leakage in the rotating evaporator pipeline, it is recommended to seek professional technical support or contact the technical service department of the equipment manufacturer. They can provide more professional advice and solutions to ensure the normal operation and effectiveness of the equipment.
2. Motor malfunction
The motor of the rotary evaporator is the core component driving the operation of the equipment. If the motor malfunctions, it will directly affect the normal operation of the equipment. Motor failure may be caused by motor overload, motor damage, or circuit failure. The solution is as follows:
Check if the motor is overloaded, and if found, reduce the load or replace it with a higher power motor in a timely manner.
Check if the motor is damaged, and if found, replace it with a new one in a timely manner.
Check if there is a malfunction in the circuit, and if found, promptly repair the circuit problem.
3. Uneven heating
During use, the rotary evaporator may experience uneven heating. This may be caused by heater malfunctions, improper heating temperature settings, or unstable rotating heads. The solution is as follows:
Check if the heater is working properly, and if any damage is found, replace it with a new one in a timely manner.
Check if the heating temperature setting is appropriate, and adjust it promptly if any improper temperature setting is found.
Check if the rotating head is stable. If any instability is found, it should be adjusted or replaced in a timely manner.
4. Insufficient vacuum degree
The rotary evaporator may experience insufficient vacuum during use. This may be caused by vacuum pump malfunction, sealing ring leakage, or blockage of the rotating head. The solution is as follows:
Check if the vacuum pump is working properly. If any damage is found, replace the vacuum pump with a new one in a timely manner.
Check if the sealing ring is leaking air, and if found, replace it with a new one in a timely manner.
Check if the rotating head is blocked, and if found, promptly clean the impurities and dirt inside the rotating head.

5. Slow evaporation rate
The slow evaporation speed of a rotary evaporator may be caused by various reasons. Here are some possible reasons and solutions:
5.1. Solvent boiling point too high
The working principle of a rotary evaporator is to boil the solvent by heating, and then evaporate and condense the solvent through a vacuum system for collection. If the boiling point of the solvent used is too high, a higher heating temperature is required to make it boil, thereby slowing down the evaporation rate.
Solution: You can try replacing the solvent with a lower boiling point to lower the heating temperature and increase the evaporation rate. You can also increase the heating temperature appropriately, but be careful not to exceed the boiling point of the solvent to avoid incomplete evaporation of the solvent.
5.2 Unstable rotating head
The rotating head of the rotary evaporator is one of the key components of the equipment, which can drive the container to rotate and fully heat and evaporate the solvent. If the rotating head is unstable, it will lead to insufficient heating and evaporation of the solvent, thereby affecting the evaporation rate.
Solution: You can check whether the rotation speed and trajectory of the rotating head are stable. If there are problems, you need to adjust or replace the rotating head in a timely manner. At the same time, it is also necessary to check whether the container is stably placed on the rotating head to ensure its normal operation.
5.3. Heating temperature too low
Low heating temperature can also cause slow evaporation speed of the rotary evaporator. If the heating temperature is too low, the solvent cannot fully boil and evaporate, which will affect the evaporation rate.
Solution: You can try to increase the heating temperature appropriately to promote the boiling and evaporation of the solvent. But be careful not to exceed the boiling point of the solvent to avoid incomplete evaporation of the solvent. At the same time, it is also necessary to check whether the heating system is working properly, and if there are any problems, they need to be repaired or replaced in a timely manner.
5.4. condenser issues
The condenser is one of the important components of the rotary evaporator, and its function is to condense and reflux the evaporated solvent back into the container. If there is a problem with the condenser, it will cause the solvent to not reflux back into the container normally, thereby affecting the evaporation rate.
Solution: Check if the cooling effect of the condenser is normal, and if there are any problems, repair or replace them in a timely manner. At the same time, it is also necessary to check whether the temperature control of the condenser is appropriate to ensure its normal operation.
5.5 Insufficient vacuum degree
Insufficient vacuum degree can also lead to slow evaporation speed of the rotary evaporator. If the vacuum degree is insufficient, it will affect the evaporation rate and reflux effect of the solvent.
Solution: You can check if the vacuum pump is working properly, and if there are any problems, they need to be repaired or replaced in a timely manner. At the same time, it is also necessary to check whether the vacuum pipeline is leaking or blocked to ensure the normal operation of the vacuum system.
5.6 Aging of rotary evaporator
Excessive use of rotary evaporators may lead to equipment aging, thereby affecting evaporation speed.
Solution: It is possible to maintain and upkeep the rotary evaporator, regularly clean the interior of the equipment, and replace worn parts. If the equipment has aged severely, it is possible to consider replacing it with a new rotary evaporator.
