How To Set Shut Height On A Punch Press?
Oct 01, 2024
Leave a message

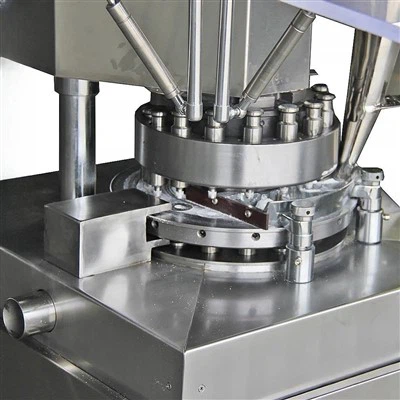

Setting the correct shut height on a punch press, especially a single punch press machine, is crucial for precise and consistent metal forming. Shut height, or bottom dead center (BDC), is the distance between the bolster plate and the slide at the bottom of its stroke. Proper adjustment ensures optimal tool clearance, prevents damage to dies and workpieces, and maintains product quality.
This guide covers the importance of shut height, the step-by-step adjustment process, and tips for maintaining performance. Mastering shut height adjustment is essential for efficiency and quality in metalworking.
Understanding Shut Height and Its Importance
Before diving into the process of setting shut height on a single punch press machine, it's crucial to understand what shut height is and why it's so important. Shut height is the distance between the bolster plate (the stationary base of the press) and the ram or slide at its lowest point of travel. This measurement is critical because it directly affects the clearance between the upper and lower dies when the press is at the bottom of its stroke.
The importance of proper shut height cannot be overstated. Here's why:
● Tool Protection: Correct shut height prevents damage to expensive tooling by ensuring that dies don't crash into each other.
● Part Quality: It ensures that parts are formed to the correct specifications, maintaining consistency in production.
● Machine Longevity: Proper shut height reduces unnecessary stress on the press components, extending the life of the machine.
● Safety: It helps prevent accidents that could occur from tooling failures or unexpected machine behavior.
For a single punch press machine, shut height adjustment is particularly critical. These machines are often used for precision work, and even small variations in shut height can lead to significant quality issues in the finished products. Understanding how to set and maintain the correct shut height is a fundamental skill for any operator working with punch presses.
Step-by-Step Guide to Setting Shut Height
Setting the shut height on a single punch press machine requires attention to detail and a systematic approach. Here's a step-by-step guide to help you through the process:
● Consult the Manual: Start by reviewing your machine's manual. Different models may have specific procedures or recommendations for setting shut height.
● Clear the Work Area: Ensure the press bed is clear of any tools, materials, or debris. Safety should always be your first priority.
● Measure the Die Set: Measure the height of your die set when it's closed. This measurement is crucial for determining the correct shut height.
● Calculate Required Shut Height: Add the die set height to the recommended die compression (usually provided by the die manufacturer) to get your target shut height.
● Adjust the Ram: Most single punch press machines have an adjustment mechanism on the ram. This could be a mechanical, hydraulic, or electronic system depending on your machine model.
● Lower the Ram: Slowly lower the ram to its bottom dead center position.
● Measure Current Shut Height: Use a precision measuring tool like a height gauge or dial indicator to measure the distance between the ram and the bolster plate.
● Make Adjustments: If the measured height doesn't match your calculated shut height, make the necessary adjustments. This might involve turning adjustment screws, using shims, or inputting values into a control panel, depending on your machine type.
● Verify Adjustments: After making changes, cycle the press a few times to ensure everything is moving smoothly. Then, re-measure to confirm you've achieved the desired shut height.
● Fine-Tune if Necessary: If you're not quite at the target height, make small adjustments and re-check until you reach the correct measurement.
● Test Run: Once you're satisfied with the shut height setting, perform a test run with scrap material to ensure the parts are being formed correctly.
Remember, patience and precision are key when setting shut height. Rushing through this process can lead to errors that could damage your tooling or produce subpar parts.
Maintaining Optimal Shut Height Performance
Setting the correct shut height is just the first step. Maintaining it over time is equally important for consistent performance of your single punch press machine. Here are some tips and best practices for maintaining optimal shut height:
● Regular Checks: Make it a habit to check the shut height at the start of each shift or before beginning a new job. Even small deviations can affect part quality.
● Keep a Log: Maintain a record of shut height settings for different dies and jobs. This can save time when setting up repeat jobs and help identify any drift in settings over time.
● Monitor Wear: Watch for signs of wear on dies, bolster plates, and adjustment mechanisms. Wear in these areas can affect shut height and overall press performance.
● Temperature Considerations: Be aware that thermal expansion can affect shut height. If your press heats up significantly during operation, you may need to make adjustments.
● Clean and Lubricate: Keep adjustment mechanisms clean and well-lubricated. This ensures smooth operation and prevents binding that could affect shut height accuracy.
● Use Quality Tooling: Invest in high-quality dies and tooling. Cheaper options may wear faster or be less precise, making it harder to maintain consistent shut height.
● Train Operators: Ensure all operators understand the importance of shut height and know how to check and adjust it properly. This knowledge is crucial for maintaining quality and preventing accidents.
● Implement a Maintenance Schedule: Regular maintenance of your single punch press machine, including checks on components that affect shut height, can prevent many issues before they occur.
● Use Modern Technology: If available for your machine, consider using electronic shut height monitoring systems. These can provide real-time feedback and alerts if shut height drifts out of specification.
● Address Issues Promptly: If you notice inconsistencies in part quality or feel the press isn't operating as smoothly as usual, check the shut height immediately. Catching issues early can prevent more significant problems down the line.
By following these maintenance practices, you can ensure that your single punch press machine continues to operate at peak efficiency, producing high-quality parts consistently. Remember, the time invested in proper shut height management pays off in reduced downtime, lower scrap rates, and extended machine life.
Conclusion
Mastering the correct shut height on a single punch press machine is crucial for high-quality, consistent metal forming. By following the step-by-step guide and maintenance tips, operators can enhance their equipment's performance and longevity. Shut height adjustment is an ongoing task requiring regular checks, proper documentation, and proactive maintenance.
Staying informed about the latest techniques and tools for shut height management is essential for maintaining peak efficiency and staying competitive in metal forming as manufacturing technology advances.
