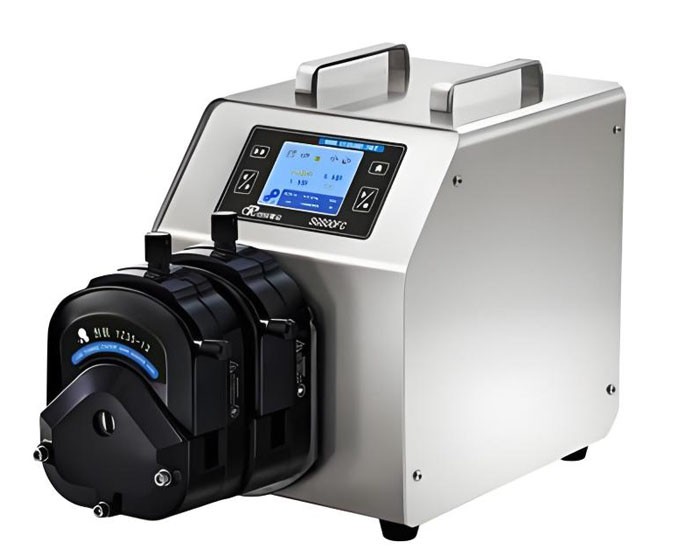

Peristaltic Pump System
Flow range:0.0053-6000ml/min
2.Basic peristaltic pump:LabM series
Flow range:0.0053-3100ml/min
3.Industrial peristaltic pump
Speed range:0.1-600rpm
Description
Technical Parameters
Peristaltic pump system is a fluid conveying device widely used in many industries, its working principle is unique and versatile, it is usually composed of the following three parts:
◆ Peristaltic pump driver: Provides a power source that drives the roller or rotor to roll along the length of the hose.
◆ Peristaltic pump head: A device containing rolls or rotors and fixed hoses is the core component of the system.
◆ Peristaltic pump pump pipe: that is, elastic hose, as a fluid transport channel, its material and specifications need to be selected according to the nature of the fluid and flow requirements.
Peristaltic pump system can be divided into many types according to technical parameters and functions, including basic flow rate peristaltic pump, flow type peristaltic pump and distributed peristaltic pump.With its unique working principle and multiple functions, it plays an important role in many industries. When selecting and using the system, appropriate selection and configuration should be carried out according to specific application scenarios and requirements.
Specifications
Main function
The control system of the peristaltic pump system has the following main functions:
► Receive instructions: The control system can receive instructions from the user or the upper system, including the setting of parameters such as speed, flow rate, and running direction.
► Parameter setting: Users can set the rotational speed, flow rate and other parameters of the peristaltic pump through the control system to meet the needs of different application scenarios.
► Status monitoring: The control system can monitor the working status of the peristaltic pump in real time, including real-time feedback of speed, flow rate, pressure and other parameters.
► Fault alarm: When the peristaltic pump system fails, the control system can send an alarm signal in time to remind the user to deal with it.
Wired communication mode
RS232 communication
RS232 is a common serial communication standard, which is widely used in the communication between computers and peripherals. In the pump system, the RS232 communication mode has the following characteristics:
1) Short communication distance: Generally no more than 15 meters, suitable for short-distance communication between devices.
2) Moderate transmission speed: It can meet the data transmission needs of most peristaltic pump systems.
3) Interface standard: DB9 or DB25 and other standard interfaces are used to facilitate connection with computers or other peripherals.
RS485 communication
RS485 is a differential balanced electrical interface standard for serial communication. In this system, RS485 communication mode has the following advantages:
1) Long transmission distance: Up to 1200 meters, suitable for long-distance communication between devices.
2) Strong anti-interference ability: Differential signal transmission can effectively resist external interference.
3) Support multi-device connection: Multiple systems can be connected through RS485 interface to achieve communication and data sharing between multiple devices.
CAN bus communication
CAN bus is a kind of communication protocol used in the field of industrial automation, which has the characteristics of strong real-time, good anti-interference and long communication distance. In this system, the CAN bus communication mode is suitable for the following scenarios:
1) Industrial automation system:It is necessary to realize real-time communication and data sharing between multiple systems and other industrial equipment.
2) Complex environment: Such as the existence of electromagnetic interference, vibration and other harsh environment, need to ensure the stability and reliability of communication.
Other wired communication methods
In addition to the above three common wired communication methods, the system can also use other wired communication methods, such as Ethernet. Ethernet communication mode has the advantages of fast transmission speed, high bandwidth and long transmission distance, which is suitable for high-speed data transmission and remote monitoring.
Select suggestions
When choosing the wired communication mode of the system, the following factors need to be considered:
Communication distance
Select an appropriate communication mode based on the actual distance between devices.
Data transmission speed
Select the appropriate communication speed and bandwidth according to the data transmission requirements.
Anti-interference ability
Considering the interference factors that may exist in the actual application environment, choose the communication mode with better anti-interference ability.
Cost
Select the appropriate communication method and interface according to the budget.
In the wired communication mode of the system, the fastest transmission speed is usually Ethernet.As a widely used network technology, Ethernet has the advantages of fast transmission speed, high bandwidth and long distance transmission. In contrast, communication methods such as RS232, RS485 and CAN bus may not be as fast as the transmission speed.
Specifically, Ethernet transmission rate can reach Gbps level, much higher than RS232 (the highest transmission rate is generally 115.2 kbps), RS485 (the highest transmission rate is generally 10 Mbps, However, the actual application may be affected by a variety of factors and reduced) and CAN bus (transmission rate depends on the specific CAN bus standard and hardware configuration, but it is generally much lower than Ethernet).
However, it is important to note that although Ethernet has the fastest transfer speeds, it may not be the best choice for all communications.When choosing a communication method, other factors need to be considered, such as communication distance, anti-interference ability, cost, and equipment compatibility and ease of use. Therefore, in practical applications, users should choose the appropriate communication mode according to the specific needs and scenarios.
In addition, with the continuous development of technology, new communication methods and technologies are also emerging. In the future, the system may apply faster and more efficient communication methods, so users should pay attention to new technologies and applications when choosing.
Wireless communication mode
WiFi communication
Standards-based: Based on IEEE 802.11 standard.
Features:
Fast transmission speed: WiFi communication has a high transmission rate, which is suitable for occasions where large amounts of data need to be transmitted or remote monitoring.
Wide coverage: WiFi signal coverage is relatively wide, suitable for large laboratory or factory environments.
Easy access: Most modern devices support WiFi connections, so the system can be easily plugged into an existing wireless network.
Bluetooth communication
Standards-based: A short-range wireless communication technology based on the IEEE 802.15.1 standard.
Features:
Low power consumption: Bluetooth communication has a relatively low power consumption and is suitable for long periods of operation.
Easy connection: The connection between Bluetooth devices is relatively simple, and users can quickly establish a connection through the pairing code.
Short-distance transmission: The transmission distance of Bluetooth communication is relatively short, generally not more than 10 meters, which is suitable for short-distance communication between devices.
ZigBee communication
Standards-based: Low power wireless communication technology based on IEEE 802.15.4 standard.
Features:
Low power consumption:ZigBee communication consumes very little power and is suitable for systems that require long standby time or frequent communication.
Large network capacity: ZigBee networks can support up to 65,536 devices, which is suitable for occasions where multiple devices are required to work together.
Reliable communication: ZigBee communication adopts self-organizing and self-healing mesh network structure, which has high communication reliability.
Other wireless communication methods
In addition to the above three common wireless communication methods, the system can also use other wireless communication methods, such as NFC (near field communication), LoRa (long distance radio), NB-IoT (narrowband Internet of Things) and so on.These communication methods have their own characteristics and are suitable for different application scenarios and requirements.
Select suggestions
When selecting the wireless communication mode of the system, the following factors need to be considered:
1) Communication distance: Select an appropriate communication mode based on the actual distance between devices.
2) Data transmission speed: Select the appropriate communication speed and bandwidth according to the data transmission requirements.
3) Power consumption: Consider the battery life and endurance of the device, choose a low-power communication mode.
4) Cost: Select the appropriate communication method and interface according to the budget.
5) Compatibility: Ensure that the selected communication method is compatible with existing devices or systems.
Communication protocol and interface selection
Communication protocol selection
Modbus communication protocol
Features: Modbus is a widely used industrial communication protocol, supporting RS485 interface. It has good stability and compatibility, and can easily realize the communication between peristaltic pump and upper computer or other equipment.
Application scenario: Suitable for systems that need to communicate with other industrial equipment or systems.
Custom communication protocol
Features: Some peristaltic pump manufacturers may offer custom communication protocols to meet the needs of specific applications. These protocols are often more flexible and customizable.
Application scenario: It is suitable for systems that require specific functions or performance metrics, or when existing communication protocols cannot meet the requirements.
Interface selection
RS485 interface
Features: RS485 interface is a differential signal transmission interface, with strong anti-interference ability, long transmission distance and other advantages. It supports multi-device connectivity and can easily build complex network structures.
Application scenario: It is suitable for peristaltic pump systems requiring long-distance transmission, multi-device connection or complex network structure.
RS232 interface
Features: RS232 interface is a single-ended signal transmission interface, although the transmission distance and anti-interference ability is relatively weak, but has the advantages of low cost, simple connection and so on.
Application scenario: Suitable for short distance transmission, low cost or simple connection systems.
USB interface
Features: USB interface is a widely used universal serial bus interface, with plug and play, fast transmission speed and other advantages. It is usually used to connect computers or other USB devices.
Application scenario: Applicable to peristaltic pump systems that need to communicate with computers or other USB devices, such as data upload, download or debugging.
Choose suggestions
Select according to the requirements
Users should select the appropriate communication protocol and interface according to the specific requirements. For example, if you need to communicate with other industrial equipment or systems, you can choose the Modbus communication protocol and RS485 interface; If you only need simple communication with the computer, you can choose the USB interface.
Consider compatibility
When selecting communication protocols and interfaces, you need to make sure that the selected mode is compatible with existing devices or systems. For example, if the existing device already supports the Modbus communication protocol and RS485 interface, select the corresponding communication protocol and interface to facilitate the communication between devices.
Consider the cost
The cost of different communication protocols and interfaces varies. The user should choose the appropriate communication protocol and interface according to the budget. For example, if the budget is limited, you can choose a lower cost RS232 interface or a custom communication protocol.
