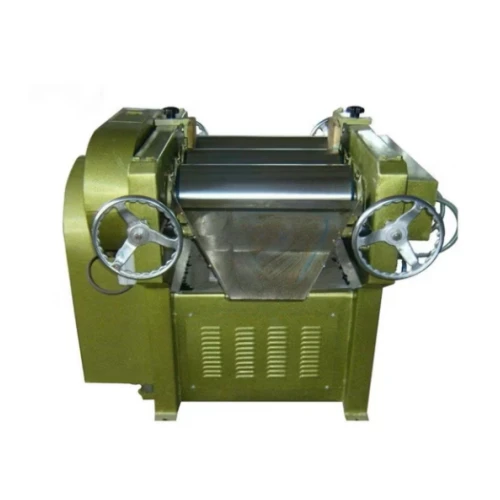

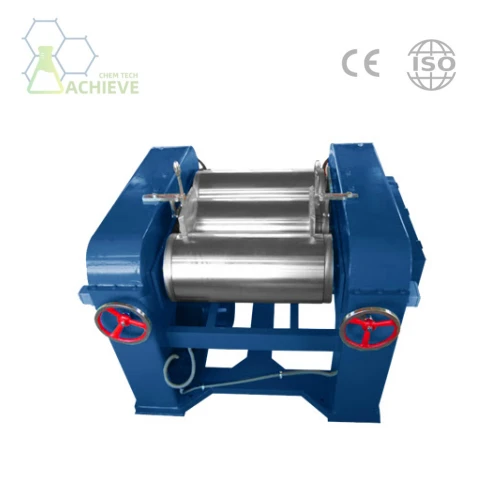

3 Roll Milling Machine
Description
Technical Parameters
The 3 roll milling machine achieves grinding effect by squeezing the surface of three horizontal rollers and friction at different speeds. Specifically, the three rollers operate at a certain speed ratio, and when the material passes through the gap between the rollers, it is rolled and cut, so as to achieve the purpose of dispersion, mixing and grinding. This working principle makes the three-roll mill especially suitable for materials requiring high shear forces for dispersion, such as pigments, inks, cosmetics, etc.
The basic structure of the three-roll grinding machine is mainly composed of the base, the transmission device, the roller wheel, the guide device and the control system. Among them, the roller wheel is the core component of the three-roll grinding machine, usually made of high-hardness alloy steel, the surface is specially treated to improve wear resistance and grinding effect. The transmission is responsible for driving the roller rotation, the guide is used to adjust the gap between the roller wheels, and the control system is used to control the entire grinding process.
Working characteristics
Through the mutual extrusion and friction of three rollers, the 3 roll milling machine can efficiently grind the material into fine particles and achieve good dispersion effect.
This grinding method is suitable for materials that require high shear force to disperse, such as pigments, inks, cosmetic raw materials, etc.
The roll gap of the three-roll mill can be finely adjusted according to the needs to adapt to the grinding requirements of different materials.
By adjusting the roll clearance, the material size after grinding can be controlled to meet specific product specifications.
The structure design of the three-roll grinding machine is reasonable, and the transmission system is stable and reliable, which can ensure the stable performance of the equipment in the long running process.
The maintenance of the equipment is relatively simple, and the wearing parts are less, which reduces the use cost and maintenance difficulty.
The three-roll grinding machine is suitable for grinding and processing a variety of materials, such as paste, color paste, liquid, etc., with strong adaptability.
By changing rollers of different materials or adjusting grinding parameters, the grinding needs of different materials can be adapted.
The operation of the three-roll grinding machine is relatively simple, and the operator can master the operation method of the equipment only after a short training.
The control panel design of the device is intuitive and easy to understand, and it is convenient for the operator to set and adjust the parameters.
Application area
 |
 |
 |
In the chemical industry, the three-roll grinder is mainly used for the crushing treatment of solid materials, mixing operations and the grinding and dispersion of high-viscosity materials. For example, in the manufacturing process of paints, inks, pigments, plastics and other slurries, the three-roll grinder can efficiently grind the material into fine particles and achieve a good dispersion effect, thus ensuring the stable and reliable quality of the product. In addition, the three-roll grinding machine can effectively reduce dust pollution, reduce labor intensity, and improve production efficiency.
In the paint and ink industry, the 3 roll milling machine is the key equipment to achieve fine dispersion of pigments and fillers. Through the grinding action of the three-roll machine, the pigments and fillers can be evenly dispersed in the base material to form a stable suspension or solution, thereby improving the quality of the product. In addition, the three-roll mill can also prepare a variety of coating and ink products with excellent performance according to different formulations and needs to meet the diversified needs of the market.
In the field of polymer materials, three-roll grinding machines are widely used in the dispersion and mixing process of additives. Through the fine grinding and dispersion of the three-roll machine, the additives can be evenly dispersed in the matrix, thereby improving the performance of the material, such as improving strength, toughness, wear resistance and so on. In addition, the three-roll grinding machine can also handle various forms of polymer materials, such as powder, particles, liquids, etc., with strong adaptability and flexibility.
In the field of electronic material preparation, three-roll grinding machines enable precision machining of functional materials. For example, in the preparation of conductive paste, magnetic materials, electronic ceramics and other materials, the three-roll grinder can ensure the uniformity and stability of the material, so as to meet the high requirements of electronic devices for material properties. In addition, the three-roll grinding machine can also handle some special electronic materials, such as nanomaterials, composite materials, etc., showing its unique advantages in the field of electronic materials preparation.
With the continuous development of new energy technology, the application of three-roll grinding machine in the field of new energy material preparation is also increasingly extensive. For example, when preparing electrode materials for lithium-ion batteries, the three-roll grinder can achieve precision machining and uniform mixing of electrode materials, thereby improving battery performance and safety. In addition, the three-roll grinder can also handle other types of new energy materials, such as solar cell materials, fuel cell materials, etc., to provide strong support for the development of new energy technology.
In addition to the above areas, three-roll grinding machines also play an important role in biomedical materials, ceramic materials, rubber materials and other fields. For example, in the field of biomedical materials, three-roll grinding machines are used to prepare high-performance composite materials, such as artificial joints, dental materials, etc. In the field of ceramic materials, three-roll grinding machines can achieve fine grinding and dispersion of ceramic powder, thereby improving the quality and performance of ceramic products.
In summary, the three-roll milling machine (three-roll grinder) plays an important role in many industrial fields with its efficient, fine and stable processing characteristics. With the continuous progress of industrial technology and the continuous expansion of application fields, the application prospect of three-roll grinding machine will be broader.
Precautions for use
 |
 |
 |
Preparation before operation
Professional training and assessment
The operator must undergo special training and assessment, be familiar with the performance, working principle, operating procedures and safety knowledge of the three-roll machine, and obtain the qualification to operate.
Equipment inspection
Before starting, you should carefully check the various parts of the three-roll machine, including wear tools, electrical equipment connection, safety protection devices, pressure gauges, etc., to ensure that the equipment is complete and intact.
Check whether the lubricating oil is sufficient, and fill the lubricating oil according to the regulations to ensure that the equipment is well lubricated.
Ensure that the power switch and grounding system are in normal condition, and the device protection device is intact and secure.
Material preparation
According to the processing requirements, prepare the appropriate materials, and avoid placing the materials next to the electrical switch box, so as not to cause safety accidents.
It is strictly prohibited to put corrosive materials into the three-roll machine for grinding, so as not to damage the equipment.
The operation process
Start-up and test run
After confirming that there is no abnormality in the equipment, start the 3 roll milling machine according to the operating procedures.
After starting, the three-roll no-load test run should be carried out to check whether the equipment is running normally, and there are abnormal conditions such as abnormal sound and vibration.
Material grinding
During the grinding of materials, strictly follow the operating rules and instructions, and do not adjust equipment parameters without authorization.
Overload operation is strictly prohibited, and the thickness of the roll plate shall not exceed the specified limit.
When the upper roll is in the upper limit position and maintains the level state, the tipping action can be carried out.
When rolling the reducing pipe, the protection plate or guide device must be used and directed by a special person to avoid damage to the machinery.
Safe operation
The operator must use the hydraulic system correctly and cannot adjust the pressure at will to prevent danger.
During the operation, it is strictly forbidden to conduct human intervention and operation, such as touching or adjusting the parts that are in operation by hand.
The operator should always pay attention to the operation of the machine tool, and once the equipment is found abnormal (such as noise, vibration, etc.), it should be stopped immediately for inspection, and then restarted after troubleshooting.
Do not leave the device during operation. If you need to leave the device, stop the machine and cut off the power supply.
Personal Protection
The operator must wear labor protective equipment that meets the regulations, such as safety helmet, protective glasses, anti-smashing safety shoes, etc., it is strictly prohibited to wear slippers, leaky heels, leaky shoes, cuffs should be tied tightly.
Long hair must be tucked into the work cap to prevent accidents.
Post-operation processing
Equipment cleaning
After the completion of the production operation, the residual materials and iron filings on the three-roll machine should be cleaned in time to keep the equipment clean.
When cleaning the equipment, do not use a shovel knife or paint brush to clean the drum, so as not to damage the equipment.
Equipment maintenance
According to the equipment maintenance plan, regular maintenance of the three-roll machine, including checking the wear of various parts of the equipment, replacing wearing parts, filling lubricating oil, etc.
Fill in the safety inspection records and maintenance records to ensure that the equipment is in good condition.
Environmental finishing
Keep the work site clean and hygienic to prevent dust and debris from contaminating the equipment.
Place tools and materials in designated locations for next use.
Other precautions
Non-professional personnel are strictly prohibited to operate
The 3 roll milling machine must be operated by professionally trained designated personnel, and other personnel are prohibited from operating the equipment at will.
Compliance with safety regulations
Operators must strictly abide by the company's production safety rules and regulations and operating procedures, shall not violate the rules and regulations of operation.
Emergency treatment
In case of emergency during operation, press the emergency stop switch immediately and report to the supervisor on duty for handling.
