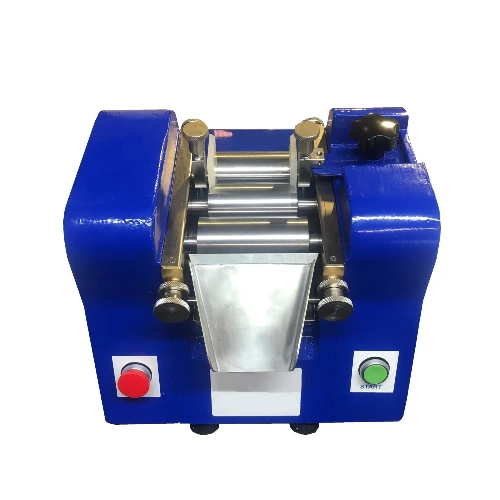

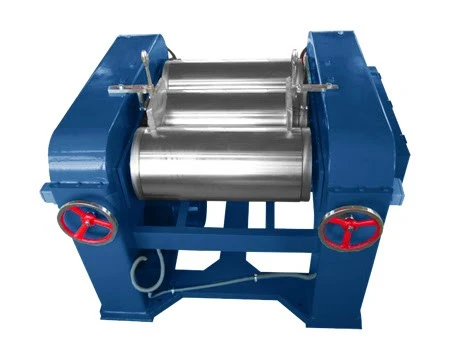

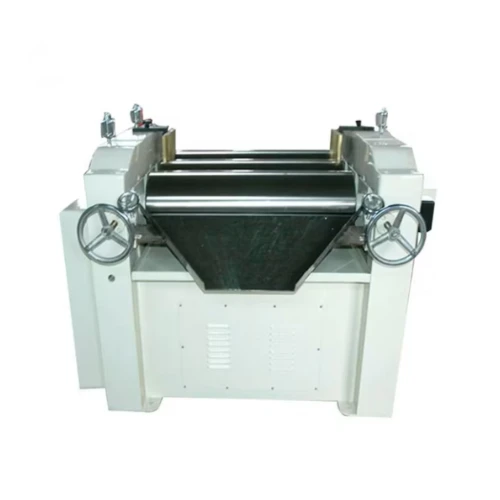

Triple Roll Mill Machine
Description
Technical Parameters
Triple roll mill machine is a kind of mechanical equipment which uses three rolls to roll metal billets. The basic principle is to change the shape and size of the metal billet by adjusting the roll profile and spacing of the roll, so that the metal billet is squeezed and extended between the rolls. The three-roll mill is usually composed of three horizontal rolls, and the upper and lower two rolls are large in diameter and are active rolls, which are driven by motor. The middle roll has a small diameter and is a driven roll, which is driven by friction with the upper and lower rolls. This structure makes the three-high mill have higher stiffness and rolling precision.
The development of the three-high mill has undergone the evolution from the early two-high mill to the multi-high mill, and then to the modern advanced three-high mill. With the continuous progress of industrial technology and the change of market demand, the three-high mill technology is also constantly developing and improving. In the future, with the continuous emergence of new materials and new processes, three-roll mill technology will continue to play an important role in providing efficient and accurate rolling solutions for industrial production.
 |
 |
 |
Lubrication technology
Importance of lubrication
In the working process of the triple roll mill machine, there will be huge friction and heat between the roll and the rolling piece. If there is no good lubrication, it will not only increase the wear of the roll and rolled parts, reduce the service life of the equipment, but also affect the quality and production efficiency of the rolled products. Therefore, lubrication technology plays a crucial role in the three-high mill.
Lubrication method
There are a variety of lubrication methods for the three-high mill, mainly including the following:
Dry oil lubrication
Dry oil lubrication is a common lubrication method, especially suitable for some parts that need to withstand large loads and shocks, such as roll bearings, gears, etc.
Dry oil lubrication usually uses grease as a lubricant, which is added to the lubrication point by manual or automatic oiling devices.
Thin oil circulation lubrication
Thin oil circulation lubrication is a type of lubrication that transmits the lubricating oil to the lubrication point through the oil pump and returns to the oil tank for circulation use through the oil return pipe after use.
This lubrication method is suitable for parts that need continuous and large quantities of lubrication, such as the reducer and gear box of the rolling mill.
Oil mist lubrication and oil and gas lubrication
Oil mist lubrication and oil and gas lubrication are two efficient lubrication methods, especially suitable for high-speed and heavy-duty rolling bearings.
Oil mist lubrication with compressed air as the power to atomize the oil, through the pipeline into the lubrication part; Oil and gas lubrication is to mix lubricating oil and compressed air into the lubrication part. These two lubrication methods have the advantages of high lubrication efficiency, good cooling effect, saving oil and so on.?.
The choice of lubricant
Choosing the right lubricant is very important for the lubrication effect of the triple roll mill machine. When selecting lubricants, it is necessary to consider the working condition, load, temperature and other factors of the equipment.
High temperature lubricating oil
The three-roll mill needs to withstand high temperature environment in the work, so the commonly used lubricating oil needs to have good high temperature stability and oxidation resistance. Generally, high-quality synthetic lubricants are selected to meet the needs of equipment.
Gear oil
The gears in the mill equipment need to be refueled regularly to ensure normal operation. Due to the large gear load in the rolling mill, it is necessary to use high pressure gear oil to ensure the lubrication effect.
Grease
For some parts that need to withstand large loads and shocks, such as roll bearings, you can choose to use grease for lubrication. When choosing a grease, it is necessary to consider its viscosity, drop point, extreme pressure performance and other indicators.
Lubrication system design and maintenance
Lubrication system design
The design of the lubrication system needs to fully consider the working condition, load, temperature and other factors of the equipment to ensure that the lubricant can be evenly transmitted to each lubrication point.
When designing the lubrication system, it is also necessary to consider the reliability, safety and easy maintenance of the system.
Lubrication system maintenance
Regular inspection and maintenance of the lubrication system is the key to ensure its normal operation. The maintenance includes cleaning the oil tank, replacing the lubricating oil, and checking the working status of the oil pump and pipes.
During the maintenance process, it is also necessary to monitor the quality and dosage of the lubricant to ensure that the performance of the lubricant meets the requirements of the equipment.
Application examples of lubrication technology
In practical applications, many three-high mills have adopted advanced lubrication technology to improve the operating efficiency of equipment and product quality. For example, some rolling mills use oil-gas lubrication systems, which achieve efficient lubrication and cooling of roll bearings by precisely controlling the amount of lubricating oil and the injection location. The application of these technologies not only reduces the wear and failure rate of the equipment, but also improves the quality and production efficiency of the rolled products.
Implementation methods of lubrication technology
The specific implementation of the lubrication technology of the three-high mill is a comprehensive process, involving the selection of lubricants, the design and installation of the lubrication system, the formulation and implementation of the lubrication system and so on. The following is a detailed description of the specific implementation of the three-high mill lubrication technology:
The choice of lubricant
Select the lubricant according to the working condition
According to the working conditions of the triple roll mill machine, such as temperature, pressure, speed, etc., select the appropriate lubricant. For example, under high temperature, high pressure and high speed working conditions, lubricants with good high temperature stability, oxidation resistance and wear resistance should be selected.
Consider equipment component requirements
For different equipment components, such as roll bearings, gears, drive shafts, etc., the appropriate lubricant should be selected according to its material, structure and working environment. For example, roll bearings are often lubricated with extreme pressure greases, while gears and drive shafts may be lubricated with lubricating oil.
Design and installation of lubrication system
Determine the lubrication method
According to the structure and lubrication requirements of the three-high mill, the appropriate lubrication method is determined. Common lubrication methods include dry oil lubrication, thin oil circulation lubrication, oil mist lubrication and oil and gas lubrication.
Design lubrication system
According to the selected lubrication method, design the corresponding lubrication system. The lubrication system should include fuel tank, oil pump, pipe, nozzle (or oil cup), filter and other components, and ensure that the lubricant can be evenly delivered to each lubrication point.
Install lubrication system
According to the design requirements, the various components of the lubrication system are installed on the three-high rolling mill, and the debugging and testing are carried out to ensure the normal operation of the lubrication system.
Formulation and implementation of lubrication system
Develop a lubrication plan
Make a detailed lubrication plan according to the working time and load of the three-high mill. The lubrication plan should include information such as the location of the lubrication point, the type and amount of lubricant, and the lubrication period.
Perform lubrication operations
Lubricate the three-high mill regularly according to the lubrication plan. The lubrication operation should be carried out by professional technicians to ensure that the lubricant can be accurately filled to each lubrication point and achieve the desired lubrication effect.
Monitoring and adjustment
During the lubrication process, the operating status of the lubrication system should be monitored and checked regularly. If it is found that the lubrication effect is poor or the lubricant deteriorates, the lubrication plan should be adjusted in time or the lubricant should be replaced.
Lubrication system maintenance and management
Regular inspection and cleaning
Check and clean the lubrication system regularly to ensure that the various components of the system are in good working condition. When cleaning, use appropriate cleaning agents and tools to avoid damage to the system.
Change lubricant
Change the lubricant regularly according to the service life and performance changes of the lubricant. When replacing, the lubrication system should be thoroughly cleaned and a new lubricant injected.
Training and Guidanc
Provide lubrication technology training and guidance to operators to improve their lubrication awareness and operation skills. At the same time, a perfect lubrication management system and process should be established to ensure the standardization and standardization of lubrication work.
Specific implementation cases
Taking a three-high rolling mill as an example, the lubrication system adopts thin oil circulation lubrication. In the process of implementation, the suitable lubricating oil is selected according to the working conditions and component requirements of the rolling mill, and the lubrication system including the oil tank, oil pump, pipe, nozzle and other components is designed. Then, the mill is lubricated regularly according to the lubrication plan, and the lubrication system is monitored and inspected regularly. Through the implementation of these lubrication measures, the operation efficiency of the three-high mill has been significantly improved, and the equipment wear and failure rate has been significantly reduced.
In summary, the specific implementation of the lubrication technology of the triple roll mill machine needs to consider the selection of lubricants, the design and installation of the lubrication system, the formulation and implementation of the lubrication system and the maintenance and management of the lubrication system. Through scientific and reasonable lubrication measures, the efficient and stable operation of the three-high mill can be ensured.
