Vacuum degree of rotary evaporator

Rotary evaporator is an indispensable equipment in the laboratory, especially in the chemical, biological, pharmaceutical and environmental science fields, it plays an important role in solvent evaporation, sample concentration and separation and purification. In these applications, the control of vacuum degree becomes a key factor affecting evaporation efficiency and experimental quality. This paper will deeply discuss the concept of vacuum degree of rotary evaporator, influencing factors, selection and adjustment strategies, as well as the importance of maintenance, in order to provide comprehensive guidance and reference for researchers.



The vacuum of a rotary evaporator refers to the pressure of the gas in the space inside the device, usually measured in millimeters of mercury (mmHg), pascals (Pa), or Torr. In the process of rotary evaporation, reducing the gas pressure in the system can significantly reduce the boiling point of the solvent, thus accelerating the evaporation rate and improving the concentration efficiency. The precise control of the vacuum degree is essential to ensure the accuracy and repeatability of the experimental results.

The vacuum degree of a rotary evaporator is affected by a variety of factors, including but not limited to the following:

◆ Vacuum pump performance Vacuum pump is the core component of rotary evaporator to realize vacuum environment. Its performance directly affects the establishment and maintenance of vacuum degree. High quality vacuum pumps can quickly reach the required vacuum degree and remain stable throughout the experiment. On the contrary, a vacuum pump with poor performance may lead to insufficient vacuum degree and affect the evaporation efficiency. ◆ Sealing performance of the equipment The sealing system of rotary evaporator includes evaporation bottle, condenser, vacuum pipe and connecting parts. Any poor seal may lead to gas leakage, thereby reducing the vacuum degree. Therefore, regular inspection and maintenance of sealing components to ensure that they are intact is the key to maintaining a high vacuum degree.

◆ Types and properties of solvents The boiling point, vapor pressure and volatility of different solvents are significantly different, and the demand for vacuum is also different. Low boiling point solvent can evaporate rapidly at a lower vacuum, while high boiling point solvent requires a higher vacuum to reduce the boiling point and promote evaporation. In addition, the corrosion of the solvent, viscosity and other properties will also affect the maintenance of vacuum. ◆ Experimental conditions and environmental factors Laboratory environmental conditions, such as temperature, humidity and altitude, will affect the vacuum degree of the rotary evaporator. For example, at high altitudes, it is relatively easy to achieve the same degree of vacuum due to the lower atmospheric pressure. At the same time, interference factors such as air flow and vibration in the laboratory may also cause vacuum degree fluctuation.

In order to optimize the performance of the rotary evaporator and improve the experimental efficiency, it is necessary to select and adjust the vacuum degree reasonably according to the experimental requirements and equipment performance. Here are some practical strategies:

► Determine the vacuum degree range according to the nature of the solvent

When choosing a rotary evaporator, the properties of the solvent to be treated should be fully understood, including boiling point, vapor pressure, viscosity and corrosion. Based on this information, a suitable vacuum range can be determined to ensure that the solvent can quickly evaporate at lower temperatures while avoiding damage to the equipment.

► Consider the experimental requirements and equipment performance

Experimental requirements, such as concentration efficiency, separation purity and sample stability, will have an impact on the selection of vacuum degree. At the same time, the performance limitations of the equipment, such as the pumping capacity of the vacuum pump and the ultimate vacuum degree, are also factors that need to be considered when developing a vacuum degree strategy. In actual operation, the optimal vacuum setting should be selected according to the experimental requirements and equipment performance.

► Monitor and adjust vacuum degree in real time

In the process of rotary evaporation, the change of vacuum degree should be monitored in real time and adjusted according to needs. For example, when the vacuum degree is found to decrease, it is necessary to check whether the sealing components are intact, whether the vacuum pipe is blocked, and whether the vacuum pump is operating normally. By timely adjustment, it can be ensured that the vacuum degree is always kept in the best range, thus improving the evaporation efficiency and the quality of the experiment.

► Pay attention to laboratory environmental factors

Laboratory environmental factors, such as temperature, humidity and altitude, may affect the vacuum degree of the rotary evaporator. Therefore, the laboratory environment should be fully evaluated before the experiment, and corresponding measures should be taken as needed, such as adjusting the laboratory temperature, humidity or using auxiliary equipment to improve the vacuum degree.



In order to maintain the high vacuum and long-term stable operation of the rotary evaporator, it is necessary to carry out regular maintenance work. Here are some key maintenance measures:

► Check the vacuum pump performance regularly

Vacuum pump is one of the core components of rotary evaporator, and its performance directly affects the establishment and maintenance of vacuum degree. Therefore, the pumping capacity, ultimate vacuum degree and operating stability of the vacuum pump should be checked regularly to ensure that it works in the best condition. If the performance is found to be degraded or faulty, it should be repaired or replaced in time.

► Clean and maintain the sealing components

Cleaning and maintenance of sealing components is essential to maintain a high vacuum. The dirt and residue on the sealing surface should be cleaned regularly to ensure that the sealing surface is smooth and smooth. At the same time, check whether the sealing parts are aging or damaged, and replace them in time if necessary.

► Check the vacuum pipes and connecting components

The blockage or leakage of the vacuum pipe and connecting parts will cause the vacuum degree to decrease. Therefore, these components should be regularly checked to see if they are unobstructed and connected tightly and reliably. If the blockage or leakage problem is found, it should be cleaned or replaced in time.

► Calibrate the vacuum gauge regularly

Vacuum gauge is an important tool for measuring the vacuum degree of rotary evaporator. To ensure the accuracy and reliability of the measurement results, the vacuum gauge should be calibrated regularly. During the calibration process, a standard vacuum reference source should be used for comparison and adjustment to ensure that the reading of the vacuum gauge is consistent with the actual vacuum.

► Keep good records and analyze data

In the process of maintenance, detailed records and analysis should be done. Record the time, content, results, problems and solutions of each maintenance. Through the analysis of these data, potential faults and problems can be found in time, and corresponding measures can be taken to prevent and deal with them.

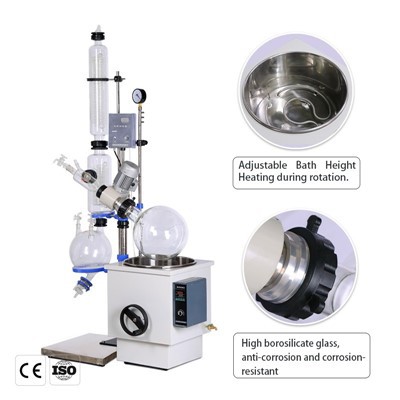

We provide Rotary evaporator, please refer to the following website for detailed specifications and product information.

Product: https://www.achievechem.com/chemical-equipment/rotary-evaporators.html



The vacuum degree of the rotary evaporator is one of the key factors affecting the experimental efficiency and results. Through reasonable selection and adjustment of vacuum degree, strengthening maintenance work and paying attention to laboratory environmental factors, the performance and stability of rotary evaporator can be significantly improved. As a scientific researcher, we should fully understand the working principle and performance characteristics of the rotary evaporator, master the control method of vacuum degree and maintenance skills to ensure the accuracy and reliability of the experimental results. At the same time, with the continuous development of science and technology, new technologies and methods will continue to emerge, researchers should maintain the spirit of learning and exploration, and constantly update their knowledge and skills to meet the new needs and challenges of scientific research work.
