In the pharmaceutical, food, chemical and other industries, as an important production equipment, tablet press is widely used in the process of pressing powdered materials into tablets. As a key component in the feeding system of the tablet press, the performance of the rotor directly affects the production efficiency and tablet quality of the tablet press. This paper will deeply discuss the structure, working principle, application and maintenance of the rotor of the tablet press, in order to provide a valuable reference for relevant practitioners.

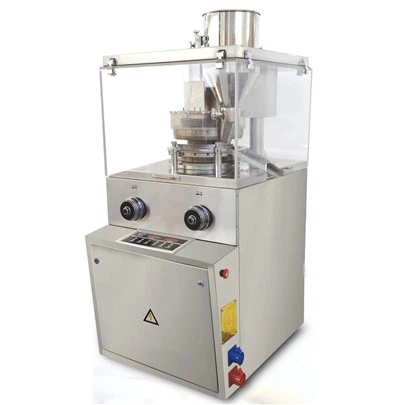

We provide tablet press, please refer to the following website for detailed specifications and product information.
Product: https://www.achievechem.com/tablet-press-machines/rotary-tablet-press-machine.html
The structure of the rotor of the tablet press
The structure of the rotor of the sheet press usually includes blade, shaft, driving device and support structure.
|
● Blade: blade is the core part of the rotor, and its shape and quantity directly affect the flow of the material and the accuracy of the feeding amount. The shape of the blade is usually designed to have a certain curvature and inclination in order to generate enough centrifugal force during rotation to evenly transport the material from the feed port to the tablet area. The number of blades is designed according to the production capacity of the tablet press and the feeding demand. ● Shaft: The shaft is the part that connects the blades to the drive device and is responsible for transmitting the rotating power. The material and machining accuracy of the shaft directly affect the rotating stability and service life of the rotor. It is usually made of high-strength, wear-resistant materials and is precisely machined to ensure the straightness and roundness of the shaft. |
|
|
|
● Drive device: The drive device is the power source of the rotor, responsible for providing rotary power for the rotor. The driving device can be a motor, air motor, etc., which can be selected according to the production capacity and feeding demand of the tablet press. The performance of the driving device directly affects the rotating speed and stability of the rotor. ● Support structure: The support structure is the fixed part of the rotor, which is responsible for mounting the rotor on the sheet press and bearing the force and moment generated by the rotor during rotation. The design of the support structure should take into account the rotating stability and service life of the rotor, usually made of high-strength, corrosion-resistant materials, and precision machining to ensure the stability and reliability of the support structure. |
The working principle of the rotor of the tablet press
The working principle of the rotor of the sheet press is based on the principle of centrifugal force and material flow. When the drive device is started, the rotor begins to rotate, and the blade generates centrifugal force in the rotation process, and the material is uniformly transported from the feeding port to the tablet area.
● Material filling: Before the work of the tablet press, it is necessary to fill the powder material into the feeding mouth. The design of the feed port should take into account the flow of the material and the accuracy of the feed amount, usually a cone or funnel shaped design, so that the material can flow smoothly into the rotor area.
● Rotor rotation: When the drive is activated, the rotor begins to rotate. Centrifugal force is generated during the rotation of the blade, and the material is uniformly transported from the feeding port to the tablet area. The centrifugal force depends on the rotation speed of the rotor and the shape and inclination of the blade.
● Material compaction: After the material enters the tablet area, it is compacted into sheets under the action of the press wheel. The design and structure of the press wheel directly affect the shape, size and hardness of the tablet. It is usually made of high-precision and high-hardness materials, and is precision machined to ensure the parallelism and roundness of the press wheel.
● Tablet discharge: the pressed tablet is discharged from the tablet press under the action of the rotor and enters the next process. The speed and stability of the tablet discharge depend on the rotation speed of the rotor and the shape and inclination of the blade.
Application of rotors of tablet press
Tablet rotor is widely used in pharmaceutical, food, chemical and other industries. The following are some typical application scenarios:
|
● Pharmaceutical industry: In the pharmaceutical industry, tablet press rotors are used to press drug powders into tablets. By adjusting the rotation speed of the rotor and the shape and inclination of the blade, the weight, size and hardness of the tablet can be controlled. At the same time, the design and structure of rotor can also affect the pharmacodynamic indexes such as dissolution rate and bioavailability of drugs. ● Food industry: In the food industry, tablet rotors are used to press food powder into chewable tablets, candy and other food tablets. By adjusting the rotation speed of the rotor and the shape and inclination of the blade, the quality indexes such as taste, shape and size of food tablets can be controlled. At the same time, the design and structure of the rotor can also affect the shelf life and safety of food tablets and other food indicators. |
|
|
|
● Chemical industry: In the chemical industry, tablet rotors are used to press chemical reagents or detergent powders into tablets. By adjusting the rotation speed of the rotor and the shape and inclination of the blade, the shape, size and hardness of the chemical reagent or detergent tablet can be controlled. At the same time, the design and structure of the rotor can also affect chemical indicators such as the dissolution rate and stability of chemical reagents or detergent tablets. |
Fault analysis and elimination of rotor of sheet press
In the process of using the rotor of the tablet press, there may be some failures. Here are some common faults and their troubleshooting methods:
● Material blockage: Material blockage is one of the common faults of the rotor. It may be caused by too much material humidity, too large particles or too slow rotor speed. The elimination methods include adjusting the material humidity, screening the material particles and increasing the rotor speed.
● Rotor failure: Rotor failure may be due to drive device failure, power failure or damage to the rotor shaft. Troubleshooting methods include checking whether the drive device and power supply are working properly, replacing the damaged rotor shaft, etc.
● Inaccurate feeding amount: Inaccurate feeding amount may be caused by rotor blade wear, rotor speed instability or unreasonable feeding port design. The elimination methods include replacing the worn rotor blades, adjusting the rotor speed and optimizing the feed port design.
● Excessive vibration: Excessive vibration may be caused by unbalanced rotor installation, loose fasteners or drive device failure. Troubleshooting methods include reinstalling the rotor, tightening fasteners, and servicing or replacing the drive device.
Conclusion
As a key component in the feeding system of the tablet press, the performance of the rotor directly affects the production efficiency and tablet quality of the tablet press. Through in-depth understanding of the structure, working principle, application and maintenance of the rotor, it can ensure the normal operation and extend the service life of the tablet press. At the same time, timely analysis and elimination of possible rotor faults can also improve the production efficiency and tablet quality of the tablet press. In the future development, with the continuous progress of science and technology and the continuous improvement of the process, the design and structure of the tablet rotor will be more optimized and improved, providing more efficient and stable production equipment for the pharmaceutical, food, chemical and other industries.
