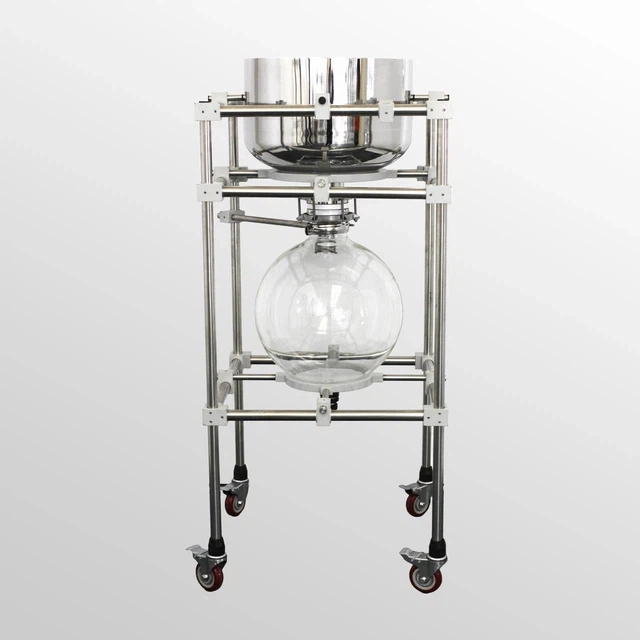

Stainless Steel Lab Vacuum Filtration Unit

As an experienced stainless steel lab vacuum filtration unit manufacturer, Achieve Chem designs the Stainless Steel Lab Vacuum Filtration Unit - also known as the Stainless Steel Vacuum Filter - as a heavy-duty, corrosion-resistant filtration system purpose-built for precision liquid-solid separation in demanding laboratory and pilot-scale environments. Unlike fully glass-bodied filtration units, this model is engineered around an all-metal working structure - a stainless steel funnel, a reinforced support frame, and a sealed vacuum assembly - paired with a high-clarity GG17 borosilicate glass collection flask that lets operators visually confirm filtrate clarity and collection volume at a glance.

Because the load-bearing funnel and frame are stainless steel rather than glass, this unit is designed to withstand more frequent handling, higher mechanical stress, and larger batch volumes without the fragility concerns typical of all-glass filtration assemblies. It is a dedicated filtration workhorse - it does not include an integrated stirring mechanism - making it well suited for applications where the priority is fast, stable, repeatable solid-liquid separation rather than combined stirring-and-reaction processing.

The unit delivers stable performance, long service life, and excellent chemical compatibility, and is widely applied in pharmaceutical research, chemical processing, environmental testing, food sample preparation, and solvent purification. For laboratories that also require ambient-temperature stirring reactions integrated with filtration, Achieve Chem's Glass Vacuum Filter series offers a fully transparent, stirring-enabled alternative - this Stainless Steel Lab Vacuum Filtration Unit is the recommended choice specifically when durability, corrosion resistance, and dedicated high-throughput filtration are the priority. As a trusted stainless steel lab vacuum filtration unit supplier, Achieve Chem supports laboratories, research institutes, and industrial buyers worldwide with reliable equipment and technical guidance from selection through after-sales service.

Interested in a SS vacuum filter for your Lab? [Send an Inquiry now]

This stainless steel vacuum filtration system creates negative pressure through an external vacuum pump, pulling liquid through a filter membrane or filter cloth positioned in the stainless steel funnel. Solid particles are trapped on the filter surface while clarified liquid flows down through the sealed vacuum pipeline into the GG17 glass collection flask below.

The stainless steel funnel is designed to ensure uniform liquid distribution across the filter surface, helping reduce localized clogging and uneven filtration rates. As vacuum builds, the built-in vacuum gauge allows the operator to monitor pressure in real time, while the regulating valve enables fine adjustment of vacuum strength according to the viscosity or particle load of the sample - heavier or more viscous samples typically require stronger vacuum, while delicate or fine precipitates may need gentler suction to avoid membrane rupture.

The double anti-suckback safety system is a key protective feature of this design: it prevents filtered liquid from being drawn back into the vacuum line if pressure fluctuates or the pump is switched off improperly, protecting both the sample from contamination and the vacuum pump from liquid ingress. Once filtration is complete, the transparent GG17 glass receiver allows full visibility of the collected filtrate, so operators can confirm completion and estimate volume without opening the system - an important advantage when working with air- or moisture-sensitive materials.

• Built as a reliable stainless steel vacuum filter for pharmaceutical industry and chemical laboratory use, the unit combines the following core performance advantages:

  All-in-one stainless steel frame and funnel - The funnel and support structure are unified into a single rigid metal assembly, improving mechanical stability during operation and reducing the risk of misalignment or leakage points that can occur with multi-piece glass assemblies.

  High vacuum level up to 0.098MPa - This vacuum capacity supports fast filtration even with finer filter media or higher-viscosity samples, shortening processing time for batch operations.

  Double anti-suckback safety system - Two independent stages of backflow protection guard against liquid contamination of the vacuum line and pump, an important safeguard in pharmaceutical and biotech sample handling where cross-contamination must be avoided.

  GG17 high borosilicate glass collection flask - Combines heat resistance and broad chemical compatibility with full visual monitoring of the collected filtrate, without exposing the entire unit's structural components to the fragility risk of an all-glass build.

  Standard φ80 flange design - The standardized flange size simplifies assembly, replacement, and future upgrades, and supports quick sealing without specialized tools.

  Built-in vacuum gauge and control valve - Enables operators to actively monitor and fine-tune vacuum pressure throughout the filtration cycle rather than relying on a fixed suction level.

  Tool-free disassembly - Filter replacement, cleaning, and routine maintenance can be carried out quickly between batches, supporting higher sample throughput and easier decontamination between different materials.

  Wide compatibility with filter membranes, filter papers, and filter cloths - The system accommodates different filter media types, allowing labs to match pore size and material to the specific particle size or chemical nature of each sample without switching equipment.

Best selling Quantitative injection kettle

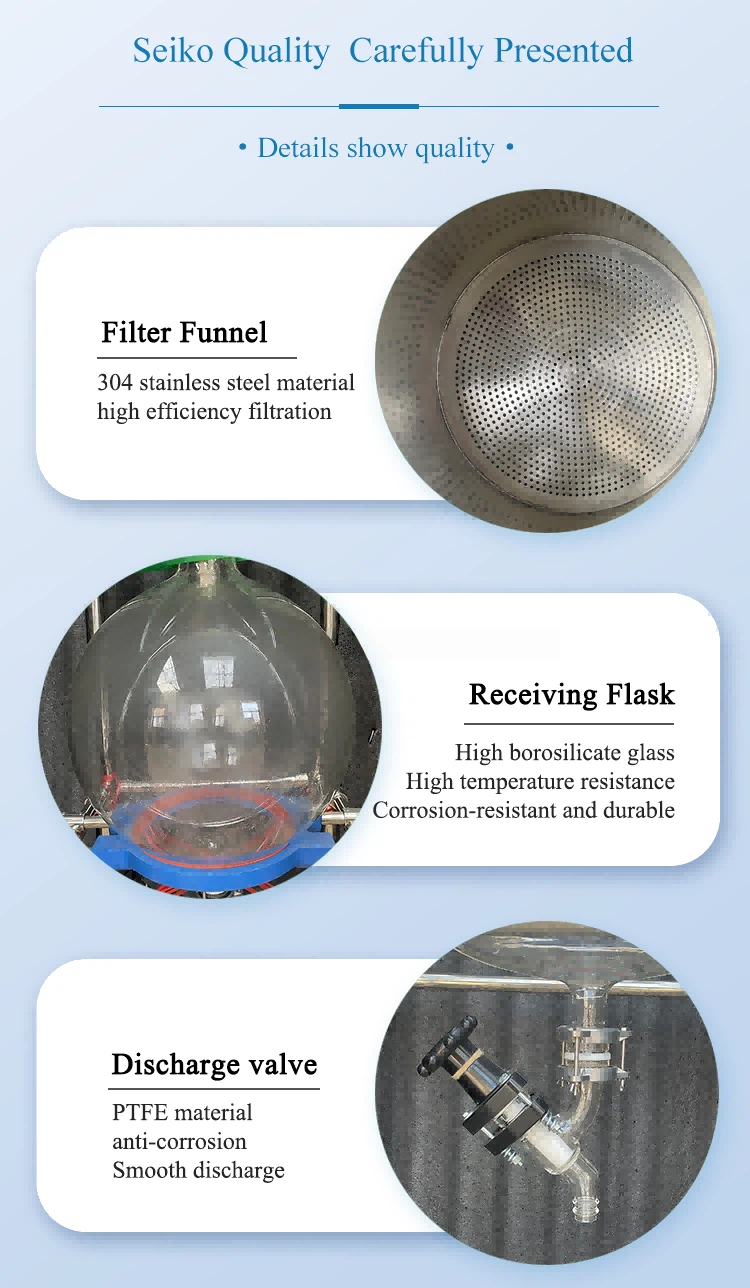

The glass suction filter bottle adopts high borosilicate glass with stable performance

Glass discharge valve, convenient and quick to recycle and melt

304 stainless steel funnel, 4mm hole drilled at the bottom of the funnel

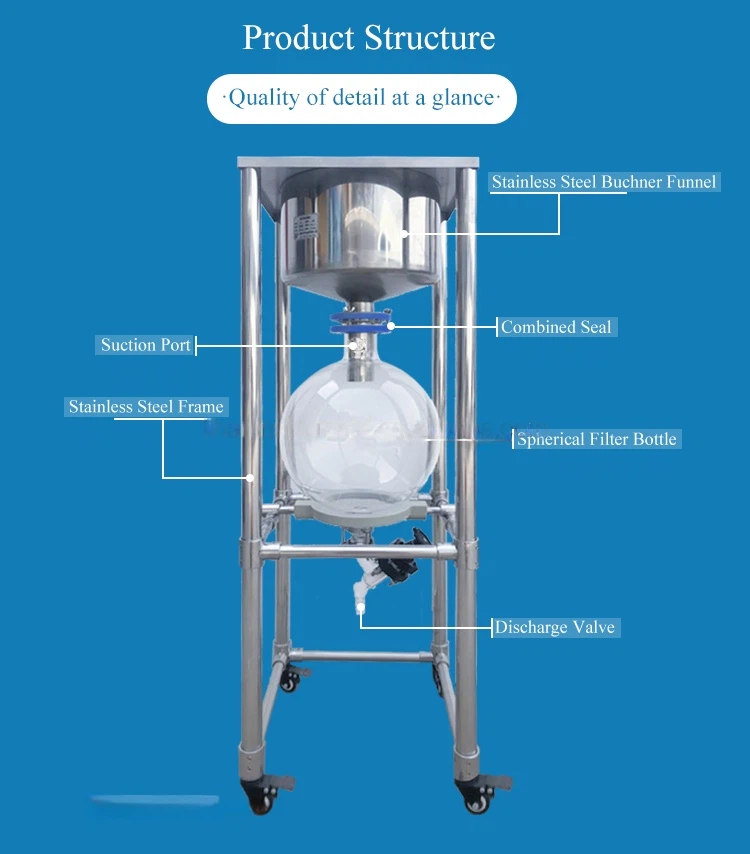

1. Stainless steel filtration funnel with standardized flange
2. Reinforced stainless steel support bracket
3. GG17 spherical glass collection bottle
4. Sealed vacuum pipeline and connectors
5. Anti-suckback safety assembly
6. Vacuum gauge and regulating valve
7. Standard exhaust and discharge valves

This stainless steel vacuum filter is built as a dedicated, heavy-duty filtration workhorse rather than a combined stirring-and-filtration reactor, making it a reliable industrial vacuum filtration system for chemical plants and research labs alike, and particularly suited to the following high-throughput or corrosion-sensitive use cases:

High-speed liquid-solid separation for chemical and pharmaceutical experiments - where repeated, high-volume filtration cycles benefit from the durability of an all-metal funnel and frame rather than glass components.

Sterile filtration and sample preparation in medical and biotech labs - the double anti-suckback design helps protect sensitive samples from backflow contamination during critical preparation steps.

Clarification and purification of solvents, reagents, and mobile phases - the wide compatibility with membranes, filter papers, and filter cloths allows labs to fine-tune filtration precision per solvent system.

Food and beverage sample filtration and impurity removal - the stainless steel construction, including the optional 316L upgrade, supports repeated cleaning cycles required in food-grade testing environments.

Environmental water quality analysis and fluid testing - the built-in vacuum gauge supports consistent, monitorable filtration conditions important for reproducible testing results.

Cosmetic raw material filtration and refinement - batch filtration of extracts and formulation bases benefits from the tool-free disassembly for fast turnaround between different raw materials.

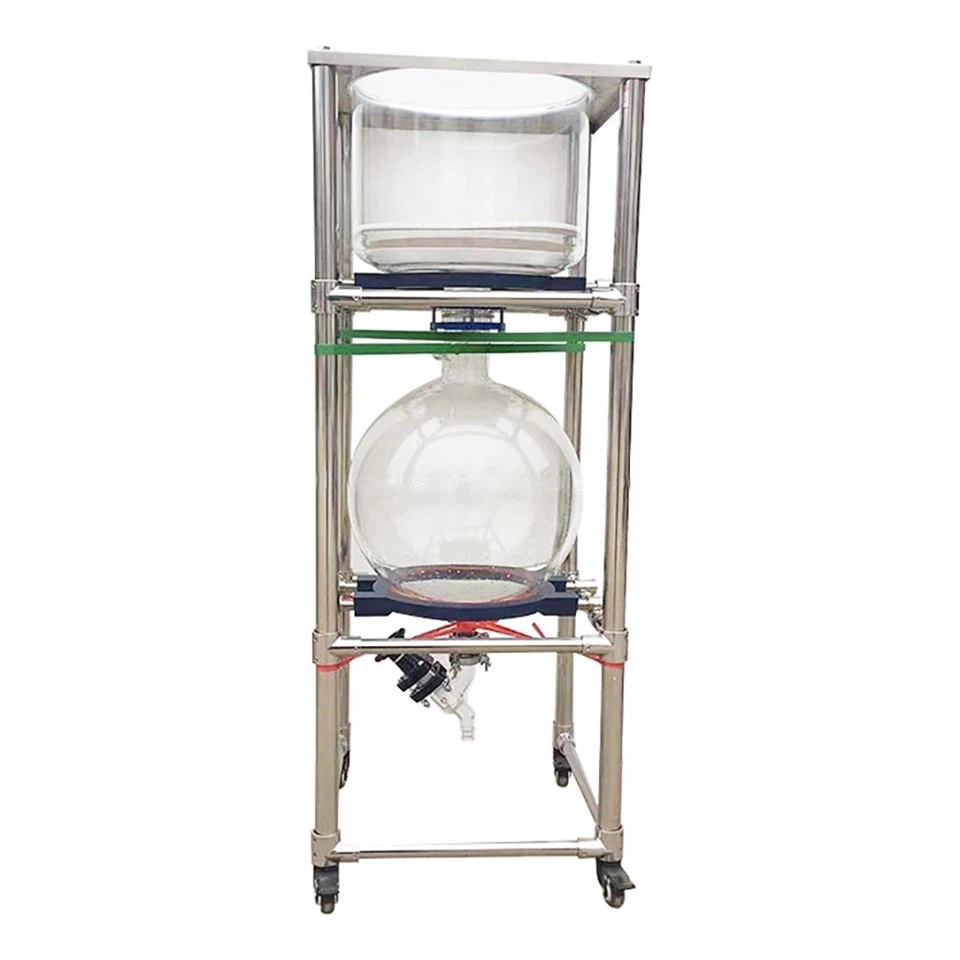

For labs that specifically need integrated ambient-temperature stirring combined with filtration in a single fully transparent glass vessel, Achieve Chem's Glass Vacuum Filter series is the more suitable alternative; this Stainless Steel Lab Vacuum Filtration Unit is optimized instead f

As a professional Stainless Steel Lab Vacuum Filtration Unit supplier, we provide full customization to meet specific application requirements:

• Capacity customization from 10L up to 100L
• Upgrade to 316L stainless steel for strong corrosion resistance
• Custom flange sizes, filter fittings, and vacuum connections
• Complete turnkey system with vacuum pump and accessories
• Special design for high-viscosity and corrosive materials
