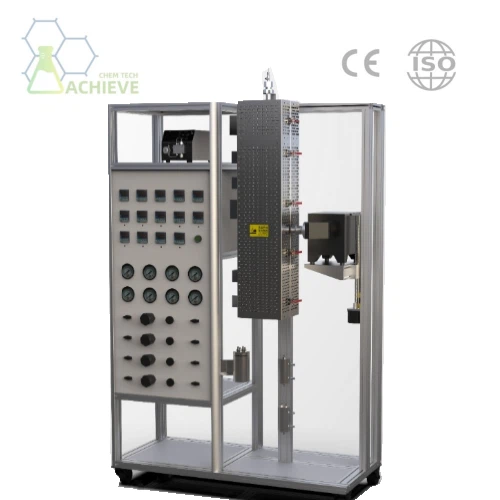

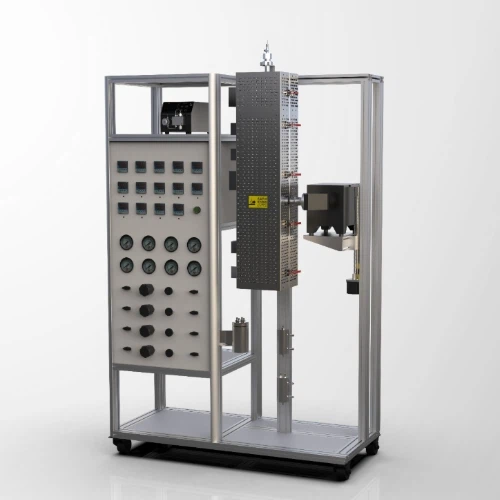

Multitubular Fixed Bed Reactor
Description
Technical Parameters
Multitubular Fixed Bed Reactor, as a type of fixed bed reactor, has unique structural and application advantages. In the chemical industry, reactors are the core equipment for chemical reactions and are widely used due to their stability and efficiency. As an efficient and stable chemical reaction equipment, it has a wide range of applications in multiple fields. By rational design and manufacturing, its advantages can be fully utilized to improve production efficiency and product quality. At the same time, it is also necessary to pay attention to its limitations and constantly explore and innovate technologies to meet future challenges and demands.
|
|
|
|
Application in bioreactors
In addition to its application in the traditional chemical industry, the Multitubular Fixed Bed Reactor has also demonstrated unique advantages in the field of bioreactors. A bioreactor is a carefully designed experimental and production equipment that plays a crucial role in the fields of biological science research and industrial production. In bioreactors, Multitbular Fxed Bed Reactor (FBR) is used to cultivate adherent cells, such as viral vectors, viral vaccines, and other products expressed by adherent cells.
Advantages of FBR in bioreactors:
Low shear environment:
Compared with stirred column reactors (STR), cells in FBR adhere and grow in a solid but porous matrix, and do not move in FBR. Instead, they circulate nutrient rich culture medium throughout the fixed bed matrix through agitation. This design reduces the shear force experienced by cells during growth, which is beneficial for cell growth and division.
Cell retention device:
Due to the fact that cells are fixed on the surface and within the three-dimensional space of a fixed bed, FBR acts as a natural cell retention device. This helps to facilitate the easy implementation of perfusion, while the cell growth support matrix can act as a filter to help pre clarify harvested materials from cell debris and other process impurities, reducing the need for further downstream clarification.
Improve production efficiency and product quality:
FBR provides a fully enclosed automated cell culture system with high automation and reduced manual intervention. This can not only reduce labor and operating costs, process land occupation and facility utilization, but also reduce pollution risks caused by open processing, improve process consistency and stability. The use of FBR for process development has significant advantages, as it allows for better optimization of cell growth and production culture conditions using the analytical tools provided by the equipment.
Process amplification:
For STR based processes, the volume change between laboratory and final scale may be 100 to 1000 times. When using FBR for amplification, due to the cells being fixed in a fixed bed, the cell density per unit volume increases sharply, which means that for the same production scale, the working volume of FBR is much smaller than that of STR. Therefore, when using FBR for amplification, the volume change will not exceed several tens of liters. This makes FBR one of the most scalable techniques currently available for cultivating adherent cells.
Basic principles
It allow chemical reactions to proceed more stably and efficiently by placing catalysts and raw materials in a fixed state in pipelines or containers. The Multitubular Fixed Bed Reactor is based on this and uses multiple parallel tubular reactors, each tube filled with a catalyst. The reactants flow through the pipeline and undergo chemical reactions under the action of the catalyst.
1. Improve reaction efficiency and production capacity
The core advantage of a multi tube fied bed reactor is its ability to simultaneously process materials from multiple reaction tubes, which significantly improves reaction efficiency through parallel processing. Each reaction tube can react independently without interfering with each other, ensuring the stability and consistency of the reaction. In addition, the multi tube design greatly improves the production capacity of the reactor, especially suitable for chemical reaction processes that require large-scale production.
2. Optimize heat and mass transfer efficiency
The multi tube structure of a multi tube fied bed reactor is beneficial for optimizing heat and mass transfer processes. Due to the large number of reaction tubes and their usually tight arrangement, the flow of materials in the reactor is more uniform, which is conducive to heat transfer and material exchange. This design not only increases the reaction rate, but also helps reduce energy consumption and improve overall energy efficiency.
Specifically, in a multi tube series reactor, the material flow rate is high and the heat transfer coefficient is high, which is conducive to rapid heat transfer; However, reactors with parallel connections of multiple tubes have lower flow rates of materials inside the tubes, lower heat transfer coefficients, but lower pressure losses, making them suitable for pressure sensitive reaction processes. This flexibility enables multi tube fixed bed reactors to adapt to different reaction conditions and meet diverse production needs.
3. Enhance the accuracy of reaction control
The multi tube design of it also enhances the accuracy of reaction control. Each reaction tube can be equipped with independent temperature, pressure, and flow control systems, allowing for more precise regulation of reaction conditions. This precise control not only improves the conversion rate of the reaction, but also helps reduce the generation of by-products and improve product quality.
In addition, due to the continuous operation of multi tube reactors, which do not occupy non production time such as feeding, unloading, and cleaning, the equipment utilization rate is higher than that of batch reactors. This efficient operating mode further enhances production efficiency and economic benefits.
5. Adapt to diverse response needs
Multitubular Fixed Bed Reactor design of the multi tube fied bed reactor also enables it to adapt to diverse reaction requirements. Multi tube reactors can provide suitable reaction environments and conditions for liquid-phase reactions, gas-phase reactions, and solid-phase reactions. This flexibility makes multi tube reactors widely applicable in various fields such as chemical synthesis, organic synthesis, biopharmaceutical preparation, chemical analysis, and environmental monitoring.
4. Improve the reliability and stability of equipment
The multi tube design of the multi tube fied bed reactor also helps to improve the reliability and stability of the equipment. Since each reaction tube is an independent reaction unit, even if one or several reaction tubes fail, it will not affect the normal operation of other reaction tubes. This redundant design enables the reactor to maintain high stability and reliability during long-term continuous operation.
At the same time, the multi tube reactor has a compact structure, easy operation, and complete functions, and has high stability and reliability in experiments and production processes. This equipment characteristic makes the multi tube fied bed reactor an indispensable experimental and production equipment in the fields of chemistry and chemical engineering.
Safety during operation
The safety design of the device itself
Structural strength
The multi-tube fixed bed reactor should have sufficient structural strength to withstand pressure and temperature fluctuations during operation to prevent safety accidents caused by equipment rupture or deformation.
Sealing performance
The sealing performance of the equipment is essential to ensure that all pipes, valves and connections are sealed to prevent the leakage of reactive materials, thereby avoiding the risk of fire, explosion and environmental pollution.
Safety accessories
It should be equipped with necessary safety accessories, such as pressure gauges, thermometers, safety valves, emergency shut-off valves, etc., so that rapid measures can be taken in emergency situations to protect equipment and personnel safety.
Safety control measures during operation
Temperature control
Strictly control the operating temperature of the reactor to avoid catalyst deactivation, equipment damage or safety accidents caused by too high or too low temperature.
Advanced temperature control system is used to monitor and adjust the temperature distribution in the reactor in real time to ensure uniform and stable temperature.
Stress Management
The operating pressure of the reactor is set reasonably according to the reaction characteristics to avoid the risk of equipment overpressure or leakage caused by excessive pressure.
Periodically check the accuracy and sensitivity of the pressure gauge to ensure that it accurately reflects the pressure situation in the reactor.
Flow regulation
Adjust the flow rate of the reaction material reasonably to ensure the uniform distribution of the material in the catalyst bed to avoid local overheating or undercooling.
Check the accuracy and stability of the flow meter regularly to ensure the accuracy of flow control.
Catalyst protection
The catalyst is the core component of the multi-tube fixed bed reactor and must be properly protected from mechanical shock, chemical corrosion or high temperature sintering.
Check the activity and filling of the catalyst regularly, and replace the deactivated catalyst in time to ensure reaction efficiency and product quality.
Safety operation procedures and personnel training
Develop safe operating procedures
According to the characteristics and operation requirements of the multi-tube fixed bed reactor, the detailed safety operation procedures are formulated, and the operation steps, safety requirements and emergency measures are clearly defined.
The procedures should cover the start-up, operation, shutdown, maintenance and troubleshooting of the equipment to ensure that the operator can correctly operate the equipment in accordance with the procedures.
Personnel training
Operators should receive professional safety training and be familiar with the working principle, safe operation procedures and emergency treatment measures of the multi-tube fixed bed reactor.
Training should include theoretical learning and practical operation exercises to ensure that operators are proficient in equipment operation skills and safety knowledge.
Emergency treatment and preventive measures
Emergency plan
Develop detailed emergency plans, including fire, explosion, leakage and other emergency response measures and evacuation routes.
Organize emergency drills regularly to improve the emergency handling ability and safety awareness of operators.
Preventive measures
Regular maintenance and maintenance of equipment, timely detection and elimination of potential safety hazards.
Strengthen the inspection of the equipment, especially the inspection of key parts and wearing parts, to ensure that the equipment is in good condition.
Strictly abide by the operation rules and safety regulations, prohibit illegal operation and risky operation.
Safety monitoring and monitoring system
Using advanced monitoring technology and equipment, real-time monitoring of the reactor temperature, pressure, flow and other key parameters to ensure that the equipment in the safe range of operation.
Monitoring data should be recorded and stored in real time for future analysis and traceability.
Set up alarm system, when the key parameters beyond the set range, can automatically trigger the alarm and take appropriate safety measures.
The alarm system should have an audible and visual alarm function to ensure that the operator can detect and take countermeasures in time.
Conclusion
The safety in the operation of the multi-tube fixed bed reactor is the key to ensure the smooth operation of production and personnel safety. Through the safety design of the equipment itself, the safety control measures in the operation process, the safety operation procedures and personnel training, the emergency treatment and preventive measures, and the safety monitoring and monitoring system, the safety of the multi-tube fixed bed reactor can be effectively improved. At the same time, the operator should always be vigilant and strictly abide by the operating procedures and safety regulations to ensure that the equipment runs in a safe and stable state. In addition, enterprises should also strengthen safety management, establish a sound safety management system and emergency plan system, to provide a strong guarantee for safe production.
