For The Digital Heating Mantle, What Materials Are Typically Used?
Mar 17, 2025
Leave a message
Digital heating mantles are indispensable laboratory instruments, designed to provide uniform and controlled heating for various scientific applications. The materials used in their construction play a crucial role in their performance, durability, and safety. In this comprehensive guide, we'll explore the key components of digital heating mantles, how material choices affect their performance, and the best materials for creating robust and reliable heating mantles.
We provide digital heating mantle, please refer to the following website for detailed specifications and product information.
Product:https://www.achievechem.com/chemical-equipment/digital-magnetic-heating-mantle.html

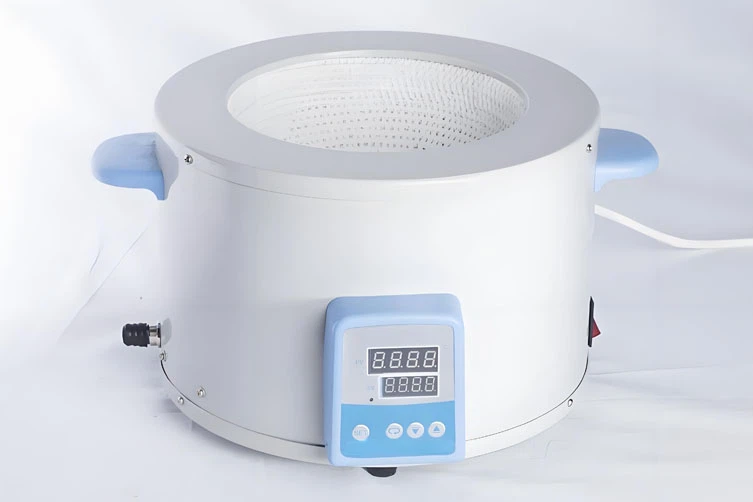

Digital Heating Mantle
The working principle of the digital magnetic heating sleeve is based on electromagnetic induction and electric heating. The magnetic stirring part generates a magnetic field through electromagnetic induction, which drives the magnetic stirring in the reaction vessel to rotate and realize the stirring of the solution. The electric heating part generates heat through a built-in heating element (such as an electric heat pipe) to heat the solution or sample in the reaction vessel. The digital control system can precisely adjust the heating temperature and stirring speed to ensure the accuracy and stability of the experimental conditions.
Key Components of a Digital Heating Mantle
A digital heating mantle consists of several essential components, each made from carefully selected materials to ensure optimal functionality:
Heating Element: The heart of any heating mantle is its heating element. Typically, these elements are fabricated from high-resistance alloys such as nichrome (nickel-chromium) or kanthal (iron-chromium-aluminum). These materials possess excellent electrical resistance properties, allowing them to generate heat efficiently when an electric current passes through them.
Insulation Layer: Surrounding the heating element is an insulation layer that serves two primary purposes: it prevents heat loss and protects the outer casing from excessive temperatures. Fiberglass is a popular choice for this component due to its superb thermal insulation properties, chemical resistance, and cost-effectiveness.
Outer Casing: The exterior of the heating mantle is typically constructed from materials that can withstand high temperatures while providing durability and ease of cleaning. Stainless steel is a common choice due to its corrosion resistance and sleek appearance. Some manufacturers opt for high-temperature resistant polymers or ceramics for specific applications.
Control Panel: The digital control panel, which allows users to set and monitor temperature, is usually made from heat-resistant plastics or reinforced polymers. These materials can withstand the heat generated by the mantle while providing a user-friendly interface.
Temperature Sensor: Accurate temperature control is achieved through the use of thermocouples or resistance temperature detectors (RTDs). These sensors are often made from platinum, nickel, or specific alloys designed for precise temperature measurement.
How Material Choice Affects Heating Mantle Performance
The selection of materials for a digital heating mantle significantly influences its performance, longevity, and safety:
Heat Distribution: The choice of heating element material directly impacts the uniformity of heat distribution. Alloys like nichrome provide excellent resistivity and heat generation properties, ensuring even heating across the mantle's surface.
Thermal Efficiency: High-quality insulation materials like fiberglass or ceramic fiber help minimize heat loss, improving the overall efficiency of the heating mantle. This not only saves energy but also allows for more precise temperature control.
Chemical Resistance: In laboratory environments, heating mantles may be exposed to various chemicals. Materials like stainless steel and certain polymers offer superior resistance to corrosion and chemical degradation, ensuring the longevity of the equipment.
Safety: The use of flame-retardant materials in the outer casing and insulation layers enhances the safety profile of the heating mantle. Some manufacturers incorporate materials like Nomex® or Kevlar® for added heat and flame resistance.
Temperature Range: The maximum operating temperature of a heating mantle is largely determined by the materials used in its construction. High-performance alloys and ceramics allow for higher temperature capabilities, expanding the range of potential applications.
Durability: The lifespan of a heating mantle is directly related to the durability of its components. Materials that can withstand repeated thermal cycling and exposure to laboratory conditions contribute to a longer-lasting product.
Best Materials for Durable Digital Heating Mantles
Based on the requirements for performance, safety, and longevity, the following materials are considered optimal for constructing durable digital heating mantles:




Heating Element: Nichrome (80% nickel, 20% chromium) remains the gold standard for heating elements due to its high resistivity, excellent oxidation resistance, and ability to withstand high temperatures. For applications requiring even higher temperature capabilities, kanthal (FeCrAl alloy) is an excellent alternative.
Insulation: Ceramic fiber insulation offers superior heat resistance and insulation properties compared to traditional fiberglass. It can withstand higher temperatures and provides better energy efficiency. For lower temperature applications, high-density fiberglass remains a cost-effective and reliable option.
Outer Casing: Type 316 stainless steel is an ideal material for the outer casing due to its exceptional corrosion resistance, durability, and ability to withstand high temperatures. For applications requiring non-metallic casings, advanced ceramics like alumina or zirconia offer excellent heat resistance and chemical inertness.
Control Panel: High-performance thermoplastics such as polyetherimide (PEI) or polyetheretherketone (PEEK) provide the necessary heat resistance and durability for control panel construction. These materials also offer good electrical insulation properties and can be easily molded into ergonomic designs.
Temperature Sensors: Platinum resistance temperature detectors (Pt100 RTDs) offer superior accuracy and stability over a wide temperature range. For applications requiring faster response times, K-type thermocouples (made from chromel and alumel alloys) are often employed.
Reinforcement Fibers: Incorporating high-strength fibers like Kevlar® or carbon fiber into the mantle's structure can significantly enhance its mechanical strength and thermal stability. These materials help prevent deformation or damage under high-temperature conditions.
Protective Coatings: Applying a layer of high-temperature silicone rubber or fluoropolymer coating to the outer surface of the heating mantle can improve chemical resistance, provide a non-stick surface for easy cleaning, and offer additional electrical insulation.
The amalgamation of these high-performance materials results in a digital heating mantle that not only meets but exceeds the rigorous demands of modern laboratory environments. By carefully selecting and combining these materials, manufacturers can create heating mantles that offer precise temperature control, uniform heat distribution, excellent durability, and enhanced safety features.
As technology advances, we can expect to see the integration of even more innovative materials in heating mantle design. Nanomaterials, for instance, show promise in improving heat transfer efficiency and temperature uniformity. Similarly, advanced composite materials may offer new possibilities for creating lighter, more durable, and more energy-efficient heating mantles.
In conclusion, the materials used in digital heating mantles play a pivotal role in their performance, reliability, and safety. By understanding the properties and benefits of different materials, laboratory professionals can make informed decisions when selecting heating mantles for their specific applications.
Are you in need of high-quality laboratory equipment, including state-of-the-art digital heating mantles? Look no further than ACHIEVE CHEM, your trusted partner in scientific instrumentation. With our extensive experience serving pharmaceutical companies, chemical manufacturers, biotechnology firms, and research institutions, we understand the unique demands of your industry. Our digital heating mantles are crafted using the finest materials to ensure unparalleled performance, durability, and safety. Don't settle for less when it comes to your critical laboratory processes. Contact us today at sales@achievechem.com to discover how our advanced heating mantles can elevate your research and production capabilities.
