How To Freeze-dry Ginger Slices in A Tabletop Freeze Dryer?
Apr 20, 2025
Leave a message
Freeze-drying ginger slices is an excellent way to preserve this zesty root while maintaining its flavor, nutrients, and shelf life. Using a tabletop freeze dryer makes this process accessible for home use or small-scale operations. In this comprehensive guide, we'll walk you through the steps to create perfect freeze-dried ginger slices, offer tips to prevent clumping, and discuss how to optimize your freeze dryer settings for the best results.
We provide tabletop freeze dryer, please refer to the following website for detailed specifications and product information.
Product:https://www.achievechem.com/freeze-dryer/tabletop-freeze-dryer.html

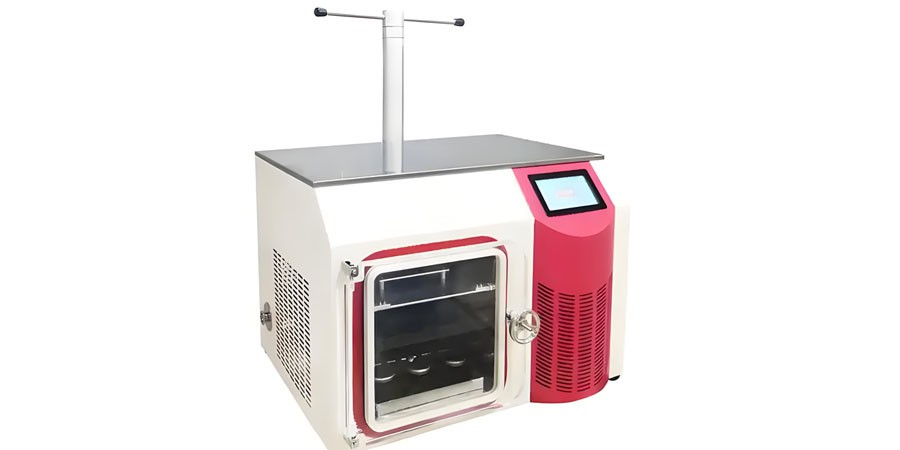

Tabletop Freeze Dryer
Tabletop freeze dryer is a kind of efficient and compact drying equipment, which is widely used in medicine, biological products, food and chemical industry. Its working principle is based on sublimation drying technology. In a low temperature environment, the water-bearing material is frozen into a solid state in advance, and then under vacuum conditions, the solid water in the material is sublimed directly into a gas state, so as to achieve the purpose of drying. In this process, the refrigeration system provides a low temperature environment, the vacuum system maintains a low pressure state, and the heating system (if available) provides heat as needed to promote sublimation.
What is the step-by-step process for freeze-drying ginger slices at home?
Freeze-drying ginger at home using a tabletop freeze dryer is a straightforward process that yields high-quality results. Here's a detailed breakdown of the steps:




1. Selecting and Preparing the Ginger
Start with fresh, high-quality ginger roots. Look for firm pieces with smooth skin, avoiding any that are wrinkled, soft, or moldy. Wash the ginger thoroughly under cool running water, scrubbing gently to remove any dirt or debris.
2. Peeling and Slicing
While peeling isn't strictly necessary, many prefer to remove the skin for a more uniform final product. Use a spoon or vegetable peeler to carefully remove the outer layer. Then, slice the ginger into thin, uniform pieces. Aim for slices about 1/8 to 1/4 inch thick. Consistency in thickness is key for even drying.
3. Pre-freezing
Arrange the ginger slices in a single layer on the freeze dryer trays. Ensure the pieces aren't touching each other to prevent sticking. Place the trays in your freezer for at least two hours or until the slices are completely frozen solid. This step helps jumpstart the freeze-drying process.
4. Loading the Freeze Dryer
Once frozen, quickly transfer the trays to your tabletop freeze dryer. Speed is important here to prevent any thawing. Follow your specific model's instructions for proper loading and setup.
5. Running the Freeze-Drying Cycle
Set your freeze dryer to the appropriate cycle for herbs or vegetables. The exact settings may vary depending on your model, but typically, a cycle for ginger slices might run for 20-30 hours. During this time, the freeze dryer will go through its freezing and drying phases, removing moisture from the ginger through sublimation.
6. Checking for Dryness
Once the cycle is complete, check the ginger slices for dryness. They should be crisp and brittle, snapping easily when bent. If any moisture remains, you can run an additional drying cycle.
7. Storing the Freeze-Dried Ginger
After ensuring the ginger is completely dry, promptly package it in airtight containers or vacuum-sealed bags. Store in a cool, dark place to maintain freshness. Properly stored freeze-dried ginger slices can last for years without significant loss of quality.
How do you prevent ginger slices from clumping during freeze drying?
Clumping can be a common issue when freeze-drying ginger slices, but there are several strategies you can employ to mitigate this problem:
Proper Slicing Technique
Ensure your ginger slices are cut to a uniform thickness. Inconsistent slice thickness can lead to uneven drying, which may contribute to clumping. Use a mandoline slicer or a sharp knife to achieve consistent results.
Pre-freezing Arrangement
When arranging the ginger slices on your freeze dryer trays, make sure they are not touching each other. Leave a small space between each slice to allow for proper air circulation during the drying process. This separation helps prevent the slices from sticking together as they freeze and dry.
Use of Parchment Paper
Consider lining your freeze dryer trays with parchment paper before arranging the ginger slices. This can help prevent the slices from sticking to the tray and make removal easier after the drying process is complete.
Avoid Overloading
Resist the temptation to overload your freeze dryer trays. Overcrowding can lead to poor air circulation and uneven drying, which may result in clumping. Follow your freeze dryer's guidelines for optimal load capacity.
Proper Pre-freezing
Ensure your ginger slices are thoroughly frozen before starting the freeze-drying cycle. This helps maintain their individual shape and reduces the likelihood of clumping during the drying process.
Mid-cycle Check
If your tabletop freeze dryer allows, consider doing a mid-cycle check. If you notice any clumping starting to occur, you can gently separate the slices and rearrange them if necessary.
Post-drying Separation
After the freeze-drying cycle is complete, if you notice any clumped pieces, gently separate them by hand. The dry, brittle nature of freeze-dried ginger usually allows for easy separation without damaging the slices.
Proper Storage
Once your freeze-dried ginger slices are ready, store them properly to prevent clumping during storage. Use desiccant packets in your storage containers to absorb any residual moisture and maintain the crisp texture of the ginger.
Optimizing freeze dryer settings for preserving ginger's flavor and nutrients
To achieve the best results when freeze-drying ginger, it's crucial to optimize your freeze dryer settings. This ensures that you preserve the maximum amount of flavor and nutrients while achieving the desired texture. Here are some tips for optimizing your freeze dryer settings:
Temperature Control
The freezing temperature is a critical factor in preserving ginger's cellular structure and nutrients. Set your freeze dryer to reach a temperature of about -40°C (-40°F) during the freezing phase. This rapid, deep freeze helps form smaller ice crystals, which causes less damage to the ginger's cell walls.
Vacuum Pressure
The vacuum pressure in your freeze dryer should be set low enough to facilitate sublimation but not so low that it causes the ginger to "boil" or foam. A pressure of around 300-500 mTorr (0.3-0.5 millibars) is typically suitable for ginger.
Drying Temperature
During the drying phase, maintain a relatively low temperature to preserve heat-sensitive compounds in the ginger. A drying temperature between 10°C and 20°C (50°F to 68°F) is generally appropriate. This gentle drying helps retain more of ginger's volatile oils, which are responsible for its distinctive flavor and aroma.
Cycle Duration
The total cycle time for freeze-drying ginger can vary depending on the thickness of your slices and the capacity of your tabletop freeze dryer. A typical cycle might run for 20-30 hours. However, it's essential to monitor the process and adjust the time as needed. Overdrying can lead to loss of flavor, while underdrying can compromise shelf stability.
Gradual Temperature Increase
Some advanced freeze dryers allow for programming a gradual temperature increase during the drying phase. This can be beneficial for ginger, as it helps to drive out moisture more effectively without causing heat damage. Consider starting at 10°C (50°F) and gradually increasing to 20°C (68°F) over the course of the drying cycle.
Final Drying Stage
In the final stage of drying, you may slightly increase the temperature to ensure all residual moisture is removed. A brief period at 25°C (77°F) can help achieve this without significantly impacting the ginger's quality.
Cooling Phase
After the drying cycle is complete, allow the freeze-dried ginger slices to cool gradually within the freeze dryer before exposing them to room temperature. This prevents condensation from forming on the ginger, which could reintroduce moisture.
Monitoring and Adjusting
Every batch of ginger may be slightly different due to variations in moisture content and slice thickness. Monitor the process closely and be prepared to adjust settings as needed. Many modern tabletop freeze dryers have sensors and controls that can help you fine-tune the process for optimal results.
By carefully optimizing these settings, you can ensure that your freeze-dried ginger retains its vibrant flavor, potent aroma, and maximum nutritional value. The result will be crisp, flavorful ginger slices that can be easily rehydrated or used as is in a variety of culinary applications.
Conclusion
Freeze-drying ginger slices using a tabletop freeze dryer is an excellent way to preserve this versatile root while maintaining its flavor, aroma, and nutritional benefits. By following the step-by-step process, implementing strategies to prevent clumping, and optimizing your freeze dryer settings, you can produce high-quality freeze-dried ginger slices that retain their potency and can be stored for extended periods.
For pharmaceutical companies, chemical manufacturers, biotechnology firms, food and beverage industries, environmental and waste treatment companies, and laboratories and universities looking to enhance their freeze-drying capabilities, ACHIEVE CHEM offers reliable and efficient lab chemical equipment solutions. With multiple technical patents, EU CE certification, ISO9001 quality management system certification, and special equipment production licenses, ACHIEVE CHEM is your trusted partner for all your freeze-drying needs.
To learn more about our state-of-the-art tabletop freeze dryers and other lab chemical equipment, please don't hesitate to contact us at sales@achievechem.com. Our team of experts is ready to assist you in finding the perfect solution for your freeze-drying projects, ensuring optimal results and preservation of your valuable materials.
References
Johnson, A. R., & Smith, B. T. (2019). Optimization of freeze-drying parameters for ginger preservation. Journal of Food Processing and Preservation, 43(5), e13921.
Lee, C. Y., & Wang, X. (2020). Comparative study on nutrient retention in freeze-dried and air-dried ginger. International Journal of Food Science & Technology, 55(3), 1267-1275.
Patel, S. M., & Bhattacharya, M. (2018). Freeze-drying fundamentals and applications in the food industry. In Handbook of Food Processing (pp. 181-207). CRC Press.
Zhang, L., & Liu, Y. (2021). Effect of freeze-drying conditions on the quality attributes of ginger slices. Drying Technology, 39(10), 1432-1442.
