Balancing the forces in a rotary tablet punching machine is crucial for producing high-quality tablets and ensuring the longevity of your equipment. This comprehensive guide will walk you through the process of achieving optimal force distribution, helping you maintain consistent tablet quality and reduce machine wear. Let's dive into the intricacies of force balancing in rotary tablet presses.



What Causes Uneven Force Distribution in Rotary Tablet Presses?

Before we delve into the solutions, it's essential to understand the root causes of unbalanced forces in rotary tablet presses. Several factors can contribute to this issue:

Mechanical Wear and Tear

Over time, the mechanical components of a rotary tablet press can experience wear, leading to misalignments and uneven force distribution. This wear can affect various parts of the machine, including:

Punch guides

Die table

Cam tracks

Compression rollers

As these components degrade, they can cause inconsistencies in the compression process, resulting in tablets of varying quality and potentially damaging the machine further.

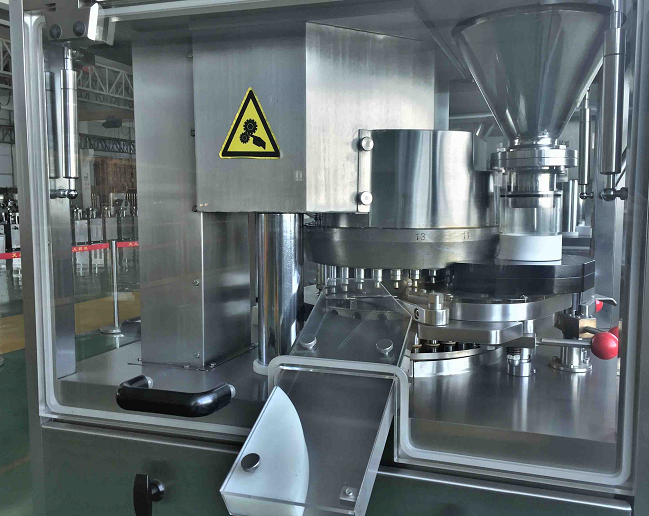

rotary tablet punching machine | Shaanxi achieve chem
rotary tablet punching machine | Shaanxi achieve chem

Improper Machine Setup

Incorrect setup of the rotary tablet machine can lead to force imbalances from the start. This may include:

Misaligned punches and dies

Incorrect adjustment of the pre-compression and main compression stations

Uneven turret rotation

These setup issues can cause some stations on the rotary tablet punching machine to experience higher forces than others, leading to inconsistent tablet quality and accelerated wear on certain parts of the machine.

Material Variability

The properties of the powder or granular material being compressed can also contribute to force imbalances. Factors such as:

Particle size distribution

Moisture content

Flow properties

Compressibility

Can all affect how the material behaves during compression. Inconsistencies in these properties can lead to variations in the force required to compress the material into tablets.

rotary tablet punching machine | Shaanxi achieve chem

Step-by-Step Guide to Calibrating Compression Forces

Now that we understand the causes of uneven force distribution, let's explore how to calibrate and balance the forces in your rotary tablet compression machine.

► Conduct a Thorough Machine Inspection

Begin by performing a comprehensive inspection of your rotary tablet press. This should include:

Checking for worn or damaged parts

Ensuring all components are properly lubricated

Verifying the alignment of punches and dies

Examining the condition of cam tracks and compression rollers

Address any issues discovered during this inspection before proceeding with force calibration.

► Clean and Prepare the Machine

Thoroughly clean the rotary tablet punching machine, paying special attention to:

Die table

Punch guides

Compression rollers

Feed frame

Remove any residual material or debris that could interfere with the calibration process.

► Set Up Calibration Tools

Prepare the necessary calibration tools, which may include:

Force measurement devices (e.g., piezoelectric sensors)

Calibrated weight sets

Digital indicators

Specialized software for data analysis

Ensure all tools are properly calibrated and in good working condition.

► Adjust Pre-Compression and Main Compression Stations

Begin by setting both the pre-compression and main compression stations to their lowest settings. Gradually increase the force at each station, measuring the force at multiple punch stations around the turret. Adjust the stations until you achieve consistent force readings across all measured points.

► Fine-Tune Individual Punch Stations

If inconsistencies persist, you may need to adjust individual punch stations. This can involve:

Shimming or replacing worn punches

Adjusting punch lengths

Replacing damaged or worn dies

Make small adjustments and retest until you achieve uniform force distribution across all stations.

► Verify Force Balance Under Operating Conditions

Once you've achieved balanced forces in a static state, test the machine under operating conditions. Run the press at various speeds and with different materials to ensure the force balance is maintained during actual production.

► Document and Monitor

Record all calibration data, including force measurements, adjustments made, and any parts replaced. Implement a regular monitoring schedule to catch any force imbalances early and maintain optimal machine performance.



Effects of Unbalanced Forces on Tablet Quality and Machine Wear

Understanding the consequences of unbalanced forces in a rotary tablet press is crucial for maintaining product quality and equipment longevity.

► Impact on Tablet Quality

Uneven force distribution can lead to several issues with tablet quality:

Inconsistent tablet weight

Variations in tablet hardness

Uneven tablet thickness

Increased friability

Poor dissolution profiles

These quality issues can result in batch rejections, increased production costs, and potential regulatory compliance problems.

► Accelerated Machine Wear

When forces are not properly balanced in a rotary tablet punching machine, certain components may experience excessive stress, leading to:

Premature wear of punches and dies

Damage to compression rollers

Increased stress on bearings and drive mechanisms

Deformation of the turret or die table

This accelerated wear can result in more frequent maintenance, higher replacement part costs, and increased machine downtime.

► Energy Efficiency and Production Costs

Unbalanced forces can also impact the overall efficiency of your tablet production process:

Increased energy consumption due to inefficient compression

Higher material waste from rejected tablets

Reduced production speed to maintain quality standards

Increased labor costs for quality control and machine maintenance

By ensuring proper force balance, you can optimize your production process, reduce costs, and improve overall equipment effectiveness (OEE).

► Long-Term Reliability and Performance

Consistently balanced forces contribute to the long-term reliability of your rotary tablet press. Benefits include:

Extended machine lifespan

Improved product consistency over time

Reduced risk of unexpected breakdowns

Enhanced operator confidence in equipment performance

Investing time and resources in proper force balancing can yield significant returns in terms of machine longevity and production quality.



Conclusion

Balancing the forces in your rotary tablet punching machine is a critical aspect of tablet production that cannot be overlooked. By understanding the causes of force imbalances, following a systematic calibration process, and recognizing the impacts of uneven force distribution, you can significantly improve your tablet quality, reduce machine wear, and optimize your production process.

Regular maintenance, careful monitoring, and prompt addressing of any force-related issues will ensure that your rotary tablet press continues to operate at peak performance, producing high-quality tablets consistently and efficiently.
